Chapter 3 Hardware Overview
NI 7340 User Manual 3-2 ni.com
Figure 3-2. Symbols on the Back of the PXI-7340

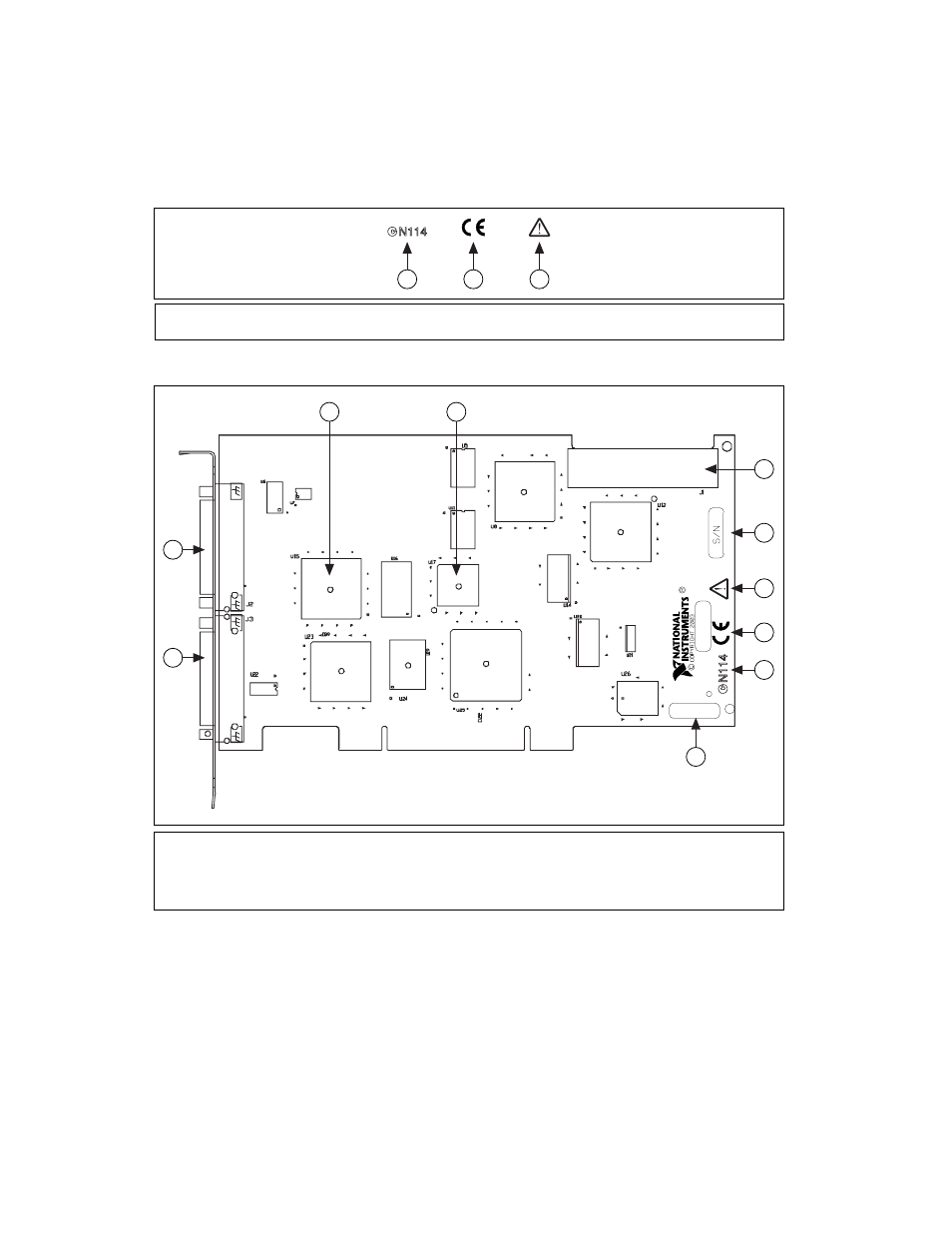

Figure 3-3. PCI-7340 Parts Locator Diagram
1 Identification Number Used in Australia
2 Symbol Indicating FFC Compliance
3 Symbol to Alert User to Read the Manual
1 RTSI Connector
2 Serial Number Label
3 Symbol to Alert User to Read the Manual
4 Symbol Indicating FFC Compliance
5 Identification Number Used in Australia
6 Assembly Number Label
7 68-Pin Digital I/O Connector
8 68-Pin Motion I/O Connector
9 CPU
10 DSP
1 2 3
ASSY186307D-01
NI PCI-7340
1
2
3
4
5
6
7
8
9 10
