Protection diodes, Figure 5. regulator with protection diode, Overload recovery – National Instruments LM1085 Series User Manual

Page 8: Thermal considerations, Lm1085

Text mode
Original mode

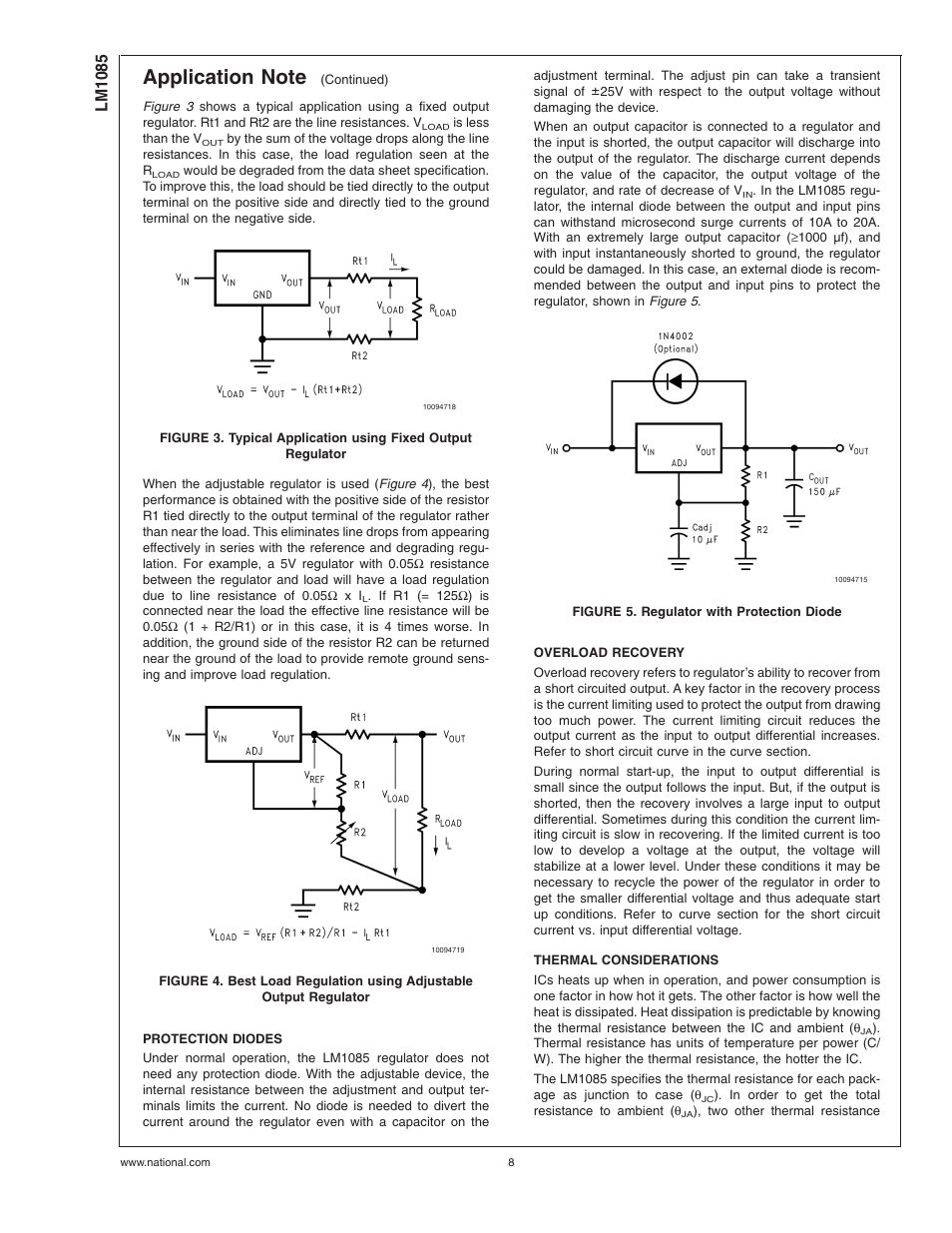

Protection diodes, Figure 5. regulator with protection diode, Overload recovery | Thermal considerations, Lm1085 | National Instruments LM1085 Series User Manual | Page 8 / 13
