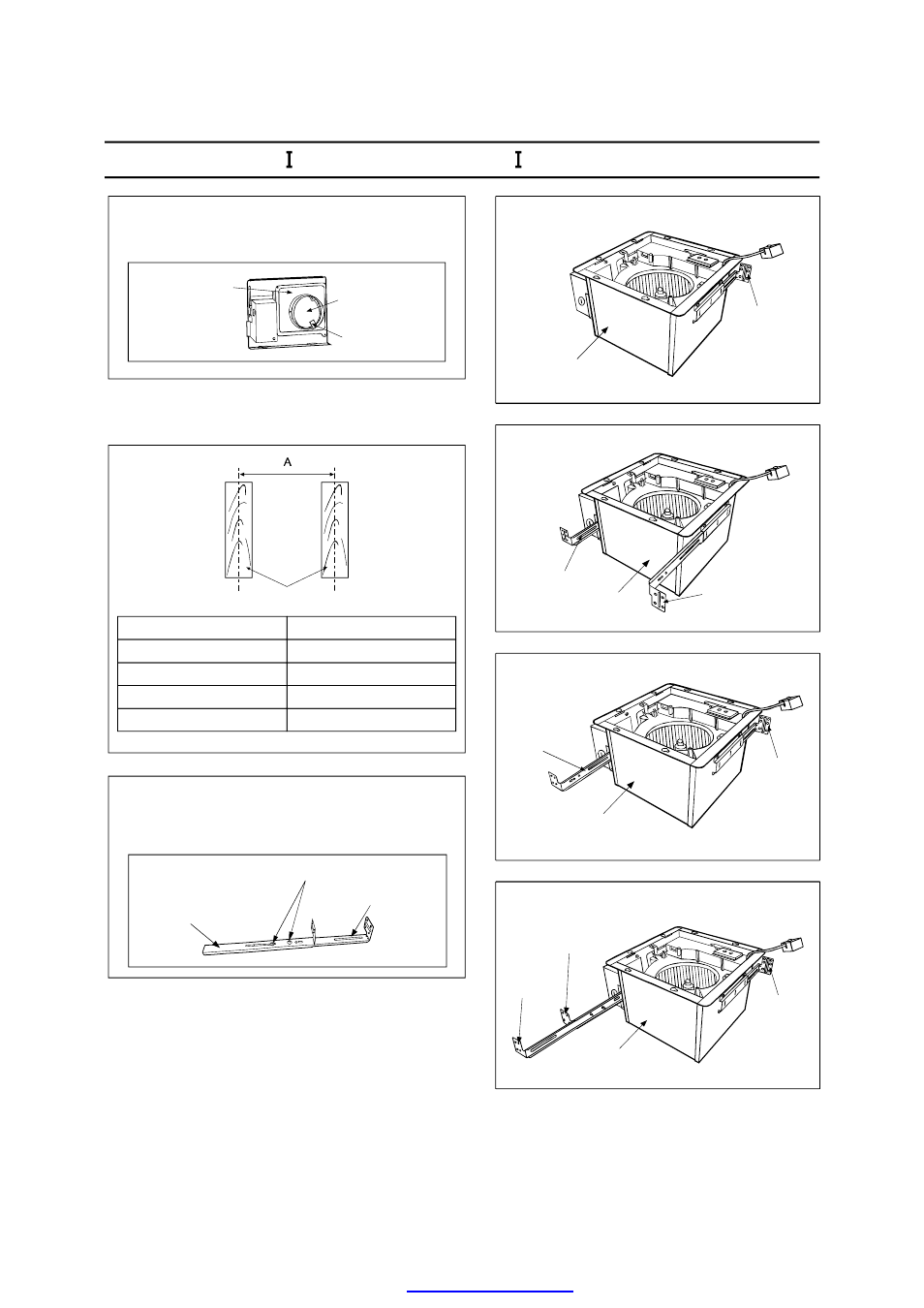

INSTALLATION (JOIST MOUNTING- )
IMPORTANT:
Adaptor
Damper
Tape
Joists
2-Screw (ST4.2X8)
I
Suspension bracket
II
Suspension bracket
III
Spacing A on center joists
12 inches
Insert Suspension bracket
Refer to Fig. 1-1
Refer to Fig. 1-2
Refer to Fig. 1-3
Refer to Fig. 1-4
16 inches
19.2 inches vertical joists
24 inches
Remove the tape from damper and adaptor
before installation. As shown below:
If spacing A on center joists is 24 inches, connect
suspension bracket and
(C4 mark to C4 mark)
as shown below:
II
III
1. Insert the suspension bracket into the fan body and
adaptor. (Select the suspension bracket as shown below.)
Fan body
Fan body
Fan body
Fan body
Suspension
bracket
I
Suspension
bracket
III
Suspension
bracket
III
Suspension
bracket
III
Suspension
bracket
II
Suspension
bracket
I
Suspension
bracket
I
Suspension
bracket
I
Fig.1-1
Fig.1-2
Fig.1-3
Fig.1-4
8
