7 DIGITAL AUDIO OUT – OPTICAL
This is a digital audio output for connection to
a PCM, Dolby Digital, DTS and/or MPEG-
compatible AV receiver that has an optical
digital input.
Connect using a commercially available
optical digital audio cable.
• You may find it useful to have the manuals
supplied with your other components
handy when connecting this player.
• If you come across any unfamiliar terms
in this section of the manual, turn to the
Glossary on page 63.

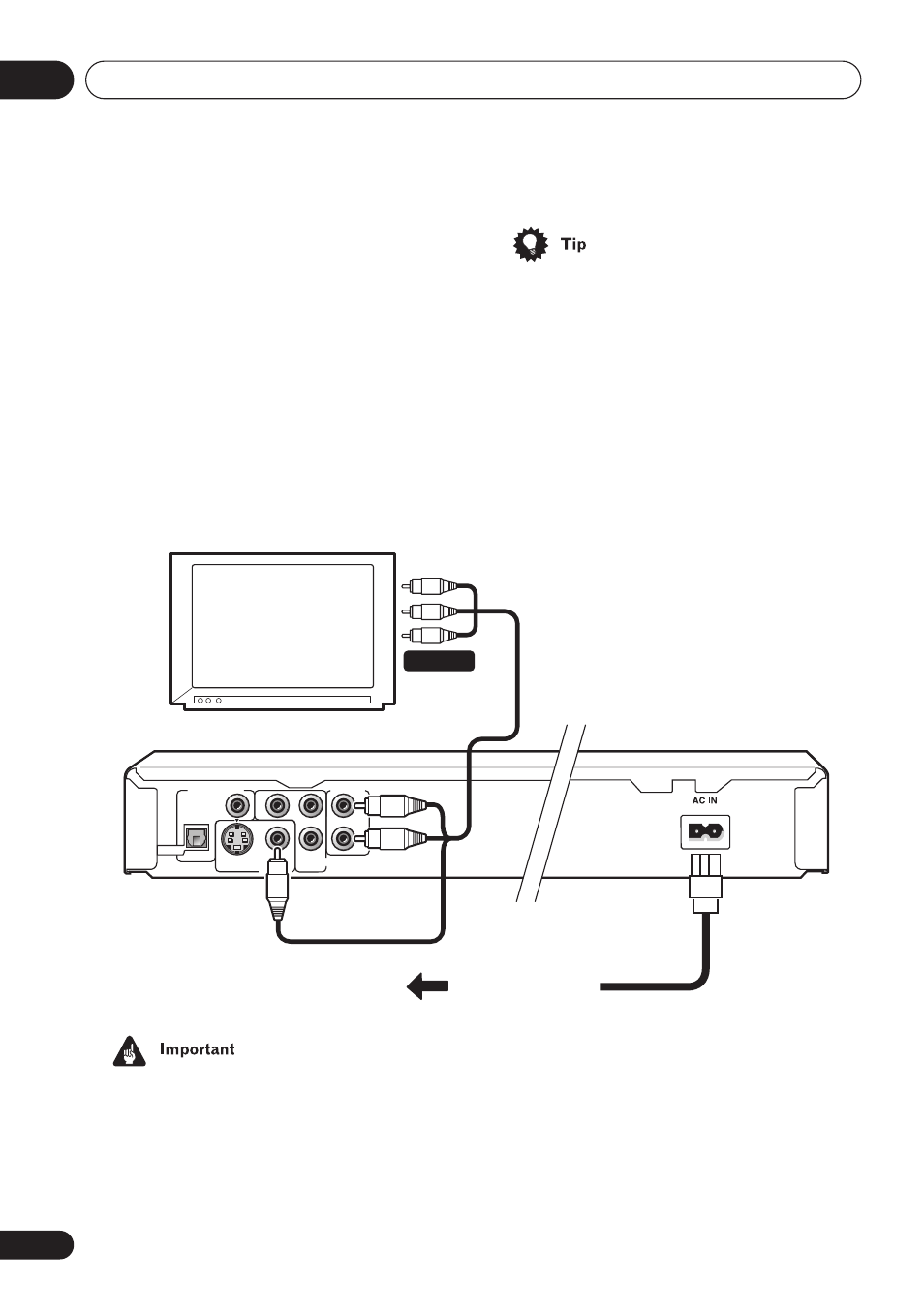

Easy connections
The setup described here is a basic setup that allows you to play discs using just the cables
supplied with the player. In this setup, stereo audio is played through the speakers in your TV.
• This player is equipped with copy protection technology. Do not connect this player to your
TV via a VCR using AV cables, as the picture from this player will not appear properly on your
TV. (This player may also not be compatible with some combination TV/VCRs for the same
reason; refer to the manufacturer for more information.)
• When connecting to your TV as shown above, do not set the Component Out setting
(page 50) to Progressive.
DIGITAL AUDIO OUT
S
L
R
P R
P B Y
COAXIAL
OPTICAL
COMPONENT VIDEO OUT
AUDIO OUT
VIDEO OUT
TV
A/V IN
To power outlet
