REPAIR PARTS
SNOW THROWER - - MODEL NO. PR827ES (96192004300)

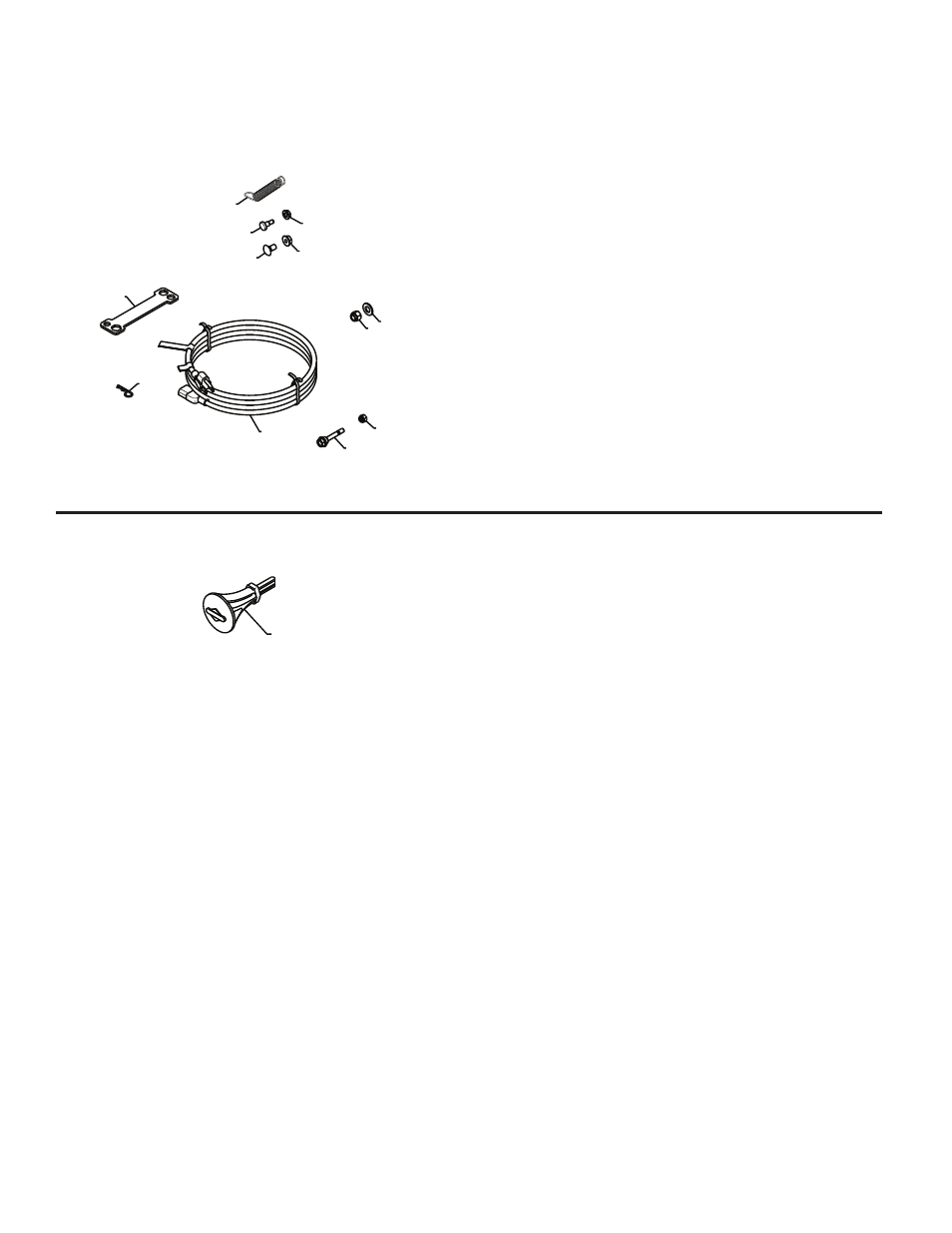

BAG OF PARTS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
01.14.003-B
10
11
1
2
3
4
5
6
7
9
8
12
1
01.14.007-A
1 198563 POWER CORD
2 169675 RETAINER PIN
3 180684X008 WRENCH
4 184505 REMOTE SPRING
5 179829 SHOULDER BOLT 1/4-20
6 191730 LOCKNUT 1/4-20
7 72250505 CARRIAGE BOLT 5/16-18 X 5/8
8 751153 LOCKNUT 5/16-18
9 73800600 LOCKNUT 3/8-16
10 19131316 WASHER 3/8
11 192090 SHEAR BOLT 1/4-20 X 1-13/16
12 73800400 LOCKNUT 1/4-20
1 193071 SAFETY IGNITION KEY
