-8-

b-3. Re-install the mounting adaptor on the Angle-B.

2-2. Complete the adjustment and connections

required for the camera operation.

2-3. Mount the camera mounting bracket or the pan/tilt

mechanism onto the mounting adaptor of the cam-
era.

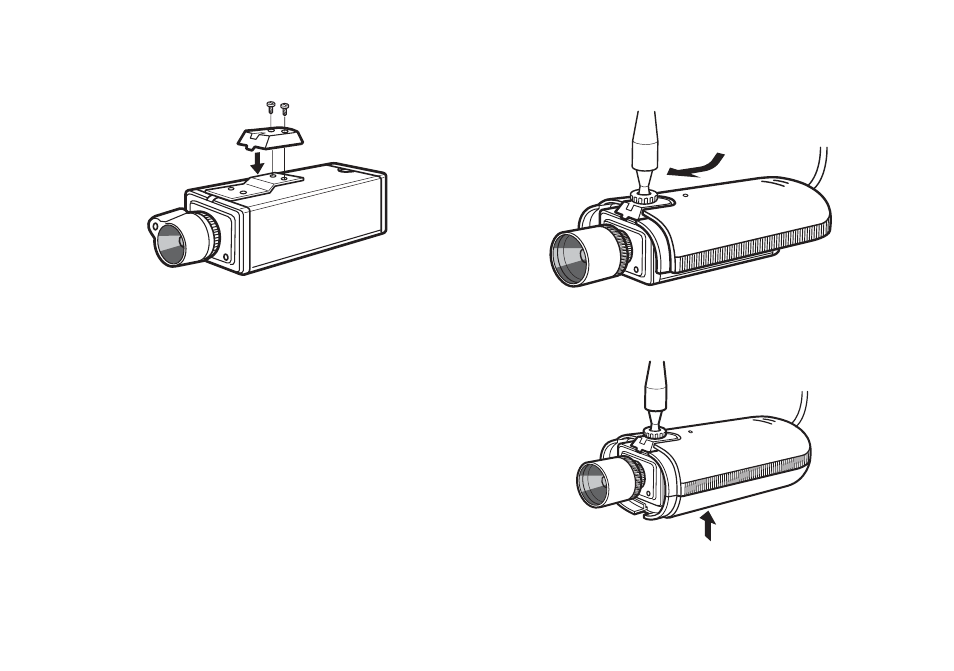

3. Installation of Upper and Lower Cover

3-1. Place the Upper Cover on the camera.

3-2. Attach the Lower Cover to the Upper Cover.

Note:

Do not clamp the cable with this installation.
