Replacing Consumables 131

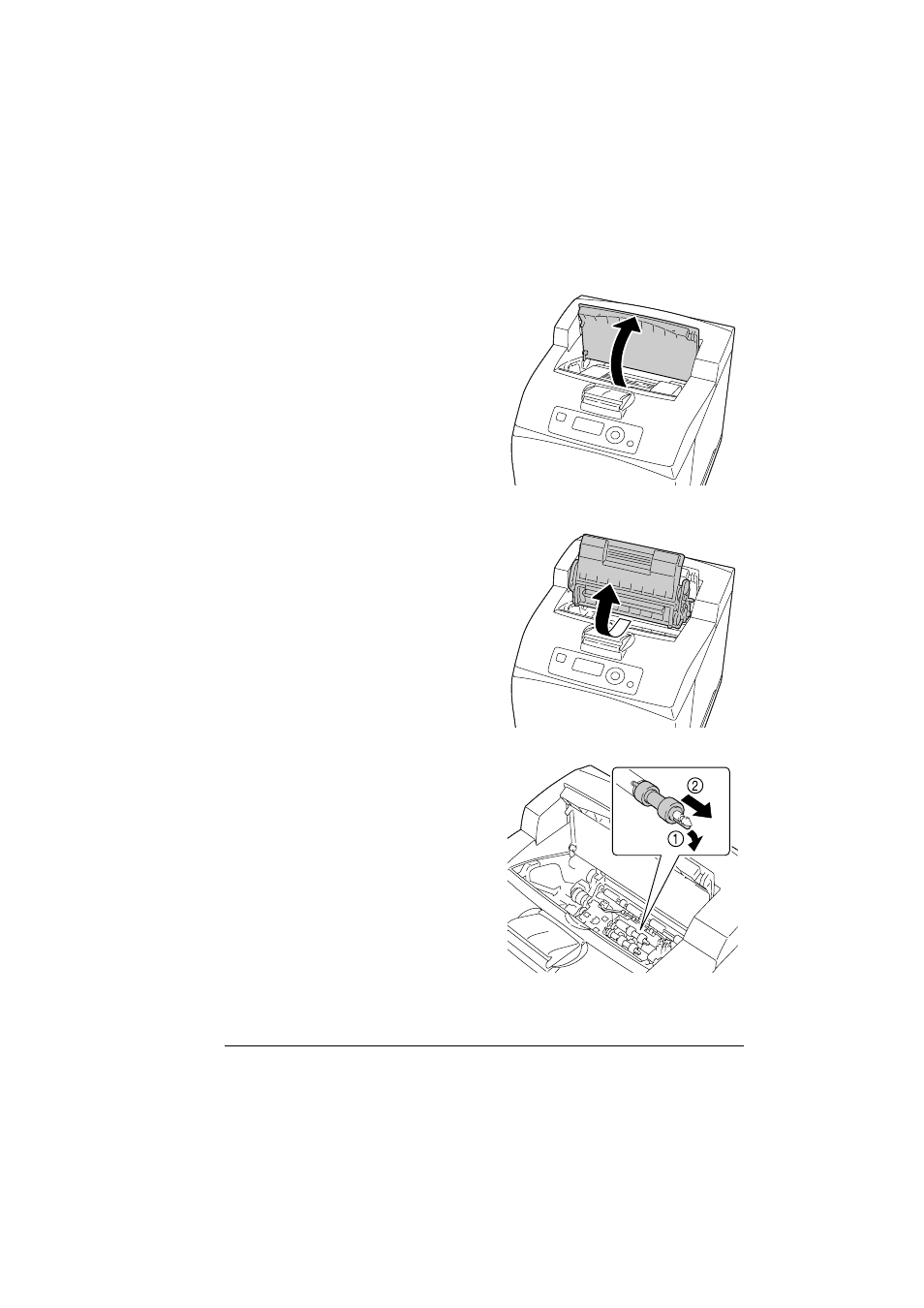

Replacing the Feed Roller (inside the Printer)
1
Open the top cover.
"
Do not touch any parts
inside the printer.
2
Hold the toner cartridge by the
grip, and then pull it out slowly.
3
While pushing down the shaft of
the feed roller, widen the tab of
the feed roller to loosen it (1)
and then slowly remove the feed
roller from the shaft on the tray
(2).
