Getting Acquainted with Your Printer 4
Printer Parts
The following drawings illustrate the parts of your printer referred to through-
out this guide, so please take some time to become familiar with them.

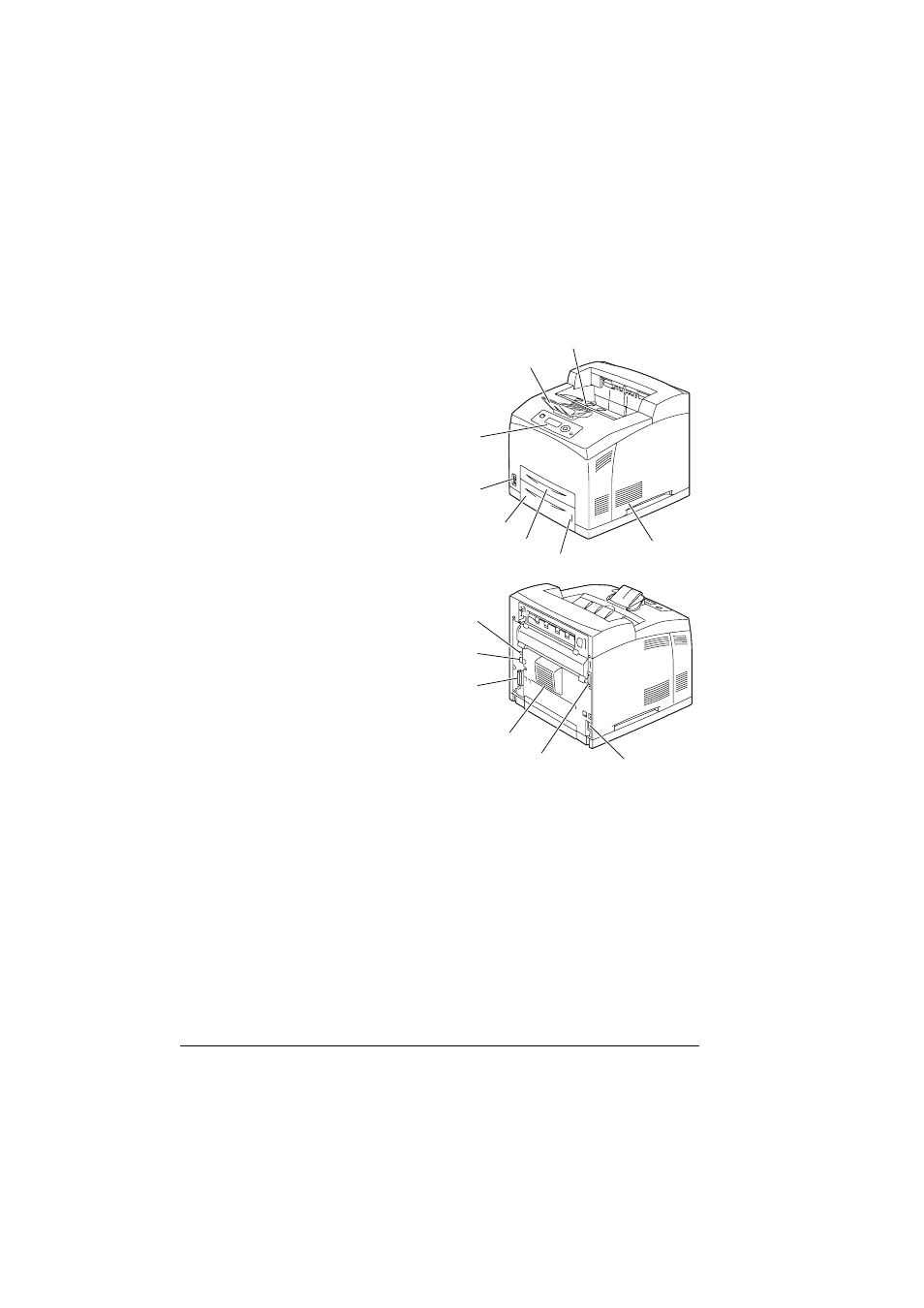

Front View
1—Center output tray
2—Control panel
3—Ventilation grilles
4—Paper meter
5—Tray1 (A4/150sheets)
6—Tray2 (A4/550sheets)
7—Power switch
8—Paper stopper
Rear View
1—Exhaust port
2—Duplex connector
3—Power connection
4—USB port
5—10Base-T/100Base-TX/
1000Base-T Ethernet Interface
port
6—Parallel port
1
8
2
7
3
4
5
6
5
6
2
3
1
4
