Freestanding/Semi Built In Models
Overall height can be increased on all CS 16
units by 5/8" (16 mm) by adjusting the roller
base.

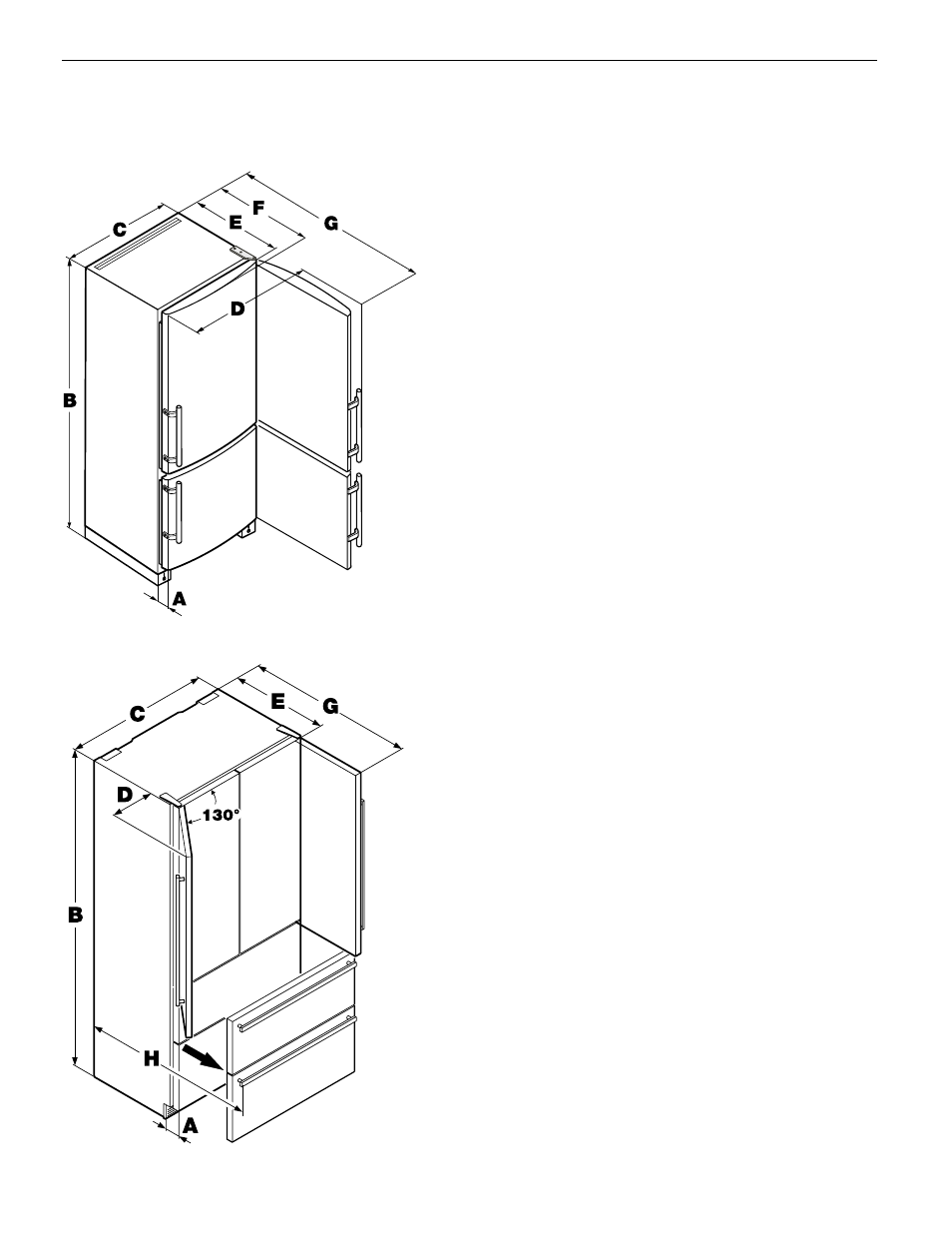

CS 1601, CS 1650
A. 2-15/16" (75 mm)
B. 81-21/32" (2074 mm)
C. 29-13/32" (747 mm)
D. 31" (788 mm)
E. 24-7/16" (621 mm)
F. 25-5/32" (639 mm)
G. 52-3/8" (1330 mm)
Unit Dimensions - Freestanding Models
3
CS 1601, CS 1650, CS 2062
Overall height can be increased on CS 20
units by 1-1/2" (40 mm) by adjusting the roller
base.
CS 2062
A. 3-17/32" (90 mm)
B. 79-13/16" (2027 mm)
C. 35-13/16" (910 mm)
D. 38-25/32" (985 mm)
E. 24-7/32" (615 mm)
G. 40-13/16" (1037 mm)
H. 39-7/16" (1002 mm)
Please allow for door swing clearance at
locations next to a wall.
