MENU
VOL RECALL
CAPTION
SLEEP
RESET
POWER
MUTE
DISPLA Y
VOL
CH
1
4
7
0
8
5
2 3
6
9
V-GUIDE
UHF/VHF/CATV
75 Ω
MENU
Please wait
TV is searching
for your channels
GAME MODE
VIDEO MODE
AS
GAME MODE GAME MODE CHANNEL CHANNEL VOLUME VOLUME POWER POWER VIDEO IN VIDEO IN L-AUDIO-R L-AUDIO-R
First
Please connect
cable system or
an antenna to the
terminal on the back
Then press the MENU key
AS
GAME MODE GAME MODE CHANNEL CHANNEL VOLUME VOLUME POWER POWER
3
FEATURES
◆ Trilingual On-Screen Menu
◆ Automatic Channel Search
◆ Auto Shut Off
◆ Closed-Captioning/Quikcap
◆ Digital picture controls
with on-screen display
◆ Auto Flesh Tones
◆ Factory preset adjustments
for picture
◆ V-Guide (Parental Control)
◆ Game Mode
◆ Front Audio / Video Input
Jacks
◆ Sleep Timer (3 hours)
◆ TV Reset
Automatic Fine Tuning
VHF and Cable Channels
181 Channel Tuning System
VHF Channels 2-13
UHF Channels 14-69
Cable TV (CATV) 1, 14-125
Remote Control
Large Glow-in-the-Dark
basic operating keys
Numbered Channel
Selection
Channel Scanning
Volume Mute
Power Recall
Display Sleep
Caption Reset
Menu V-Guide
Game / Video Mode
SPECIFICATIONS
PICTURE TUBE SIZE
(Measured Diagonally) . . . . . . . . . 13-Inch screen
PICTURE RESOLUTION . . . . . . . . . 260 Lines
Video Input . . . . . . . . . . 260 Lines
ANTENNA INPUT . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω
POWER REQUIREMENT . . . . . . . . . 120VAC 60Hz
POWER . . . . . . . . . . . . . . . . . . . . . 53 watts
HORIZONTAL DIM. (Width) . . . . . . . 14.6 in. (372mm)
VERTICAL DIM. (Height) . . . . . . . . 13.1 in. (332mm)
DEPTH DIM. (Thickness) . . . . . . . . 14.7 in. (374mm)
WEIGHT (LB.) (Approx.) . . . . . . . . 19.4 lbs. (8.8 Kg.)
SOUND . . . . . . . . . . . . . . . . . . . . . 2 Speakers, Size 5x9cm
AMPLIFIER . . . . . . . . . . . . . . . . . . Built-in with 1W/ch
FRONT A/V INPUT JACKS . . . . . . . Video Input
. . . . . . . . . . . . . . . . . . . . . . . . . . . Audio Input (R/L)
CAUTION: FCC Regulations state that improper modifications or
unauthorized changes to this unit may void the user’s
authority to operate the unit.
❷
❸
❹

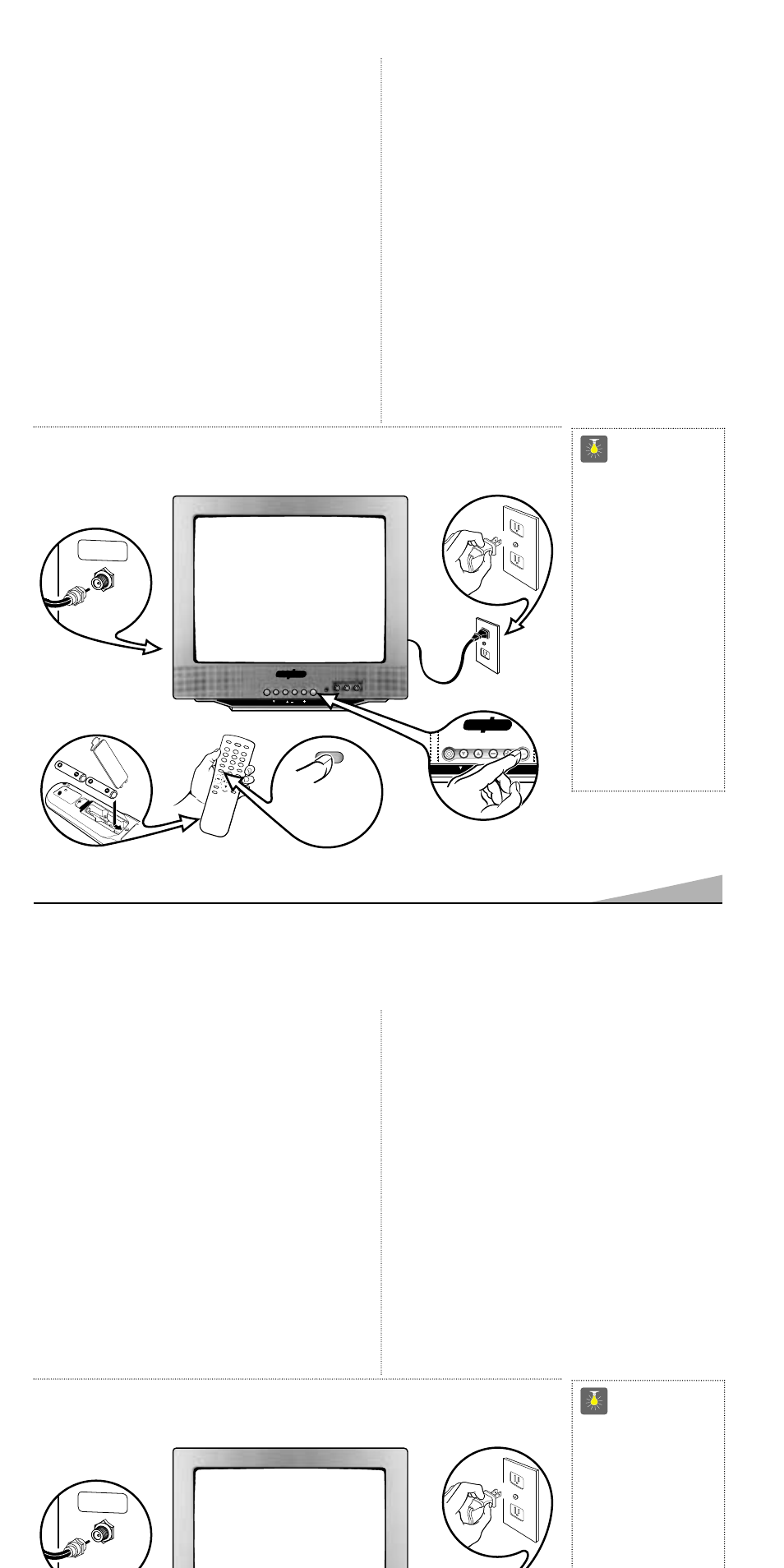

BASIC SETUP
(See Hookup
on page 4.)
❺
➊
(Install batteries, see page 5.)
(Switch on Power.)
QuickTips
■ Do not position the TV
in a confined area.
Allow normal air
circulation for
electronic parts.
■ Position your TV at
least 2 feet from stereo
speakers. The magnets
in the speakers may
affect the picture
quality.
■ The TV will automati-
cally select the correct
Antenna mode for the
type of signal you
connect.
UHF/VHF/CATV
75 Ω
GAME MODE CHANNEL VOLUME POWER VIDEO IN L-AUDIO-R
First
Please connect
cable system or
an antenna to the
terminal on the back
GAME MODE CHANNEL VOLUME POWER
FEATURES
◆ Trilingual On-Screen Menu
◆ Automatic Channel Search
◆ Auto Shut Off
◆ Closed-Captioning/Quikcap
◆ Digital picture controls
with on-screen display
◆ Auto Flesh Tones
◆ Factory preset adjustments
for picture
◆ V-Guide (Parental Control)
◆ Game Mode
◆ Front Audio / Video Input
Jacks
◆ Sleep Timer (3 hours)
◆ TV Reset
Automatic Fine Tuning
VHF and Cable Channels
181 Channel Tuning System
VHF Channels 2-13
UHF Channels 14-69
Cable TV (CATV) 1, 14-125
Remote Control
Large Glow-in-the-Dark
basic operating keys
Numbered Channel
Selection
Channel Scanning
Volume Mute
Power Recall
Display Sleep
Caption Reset
Menu V-Guide
Game / Video Mode
SPECIFICATIONS
PICTURE TUBE SIZE
(Measured Diagonally) . . . . . . . . . 13-Inch screen
PICTURE RESOLUTION . . . . . . . . . 260 Lines
Video Input . . . . . . . . . . 260 Lines
ANTENNA INPUT . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω
POWER REQUIREMENT . . . . . . . . . 120VAC 60Hz
POWER . . . . . . . . . . . . . . . . . . . . . 53 watts
HORIZONTAL DIM. (Width) . . . . . . . 14.6 in. (372mm)
VERTICAL DIM. (Height) . . . . . . . . 13.1 in. (332mm)
DEPTH DIM. (Thickness) . . . . . . . . 14.7 in. (374mm)
WEIGHT (LB.) (Approx.) . . . . . . . . 19.4 lbs. (8.8 Kg.)
SOUND . . . . . . . . . . . . . . . . . . . . . 2 Speakers, Size 5x9cm
AMPLIFIER . . . . . . . . . . . . . . . . . . Built-in with 1W/ch
FRONT A/V INPUT JACKS . . . . . . . Video Input
. . . . . . . . . . . . . . . . . . . . . . . . . . . Audio Input (R/L)
CAUTION: FCC Regulations state that improper modifications or
unauthorized changes to this unit may void the user’s
authority to operate the unit.
❸
BASIC SETUP
QuickTips
■ Do not position the TV
in a confined area.
Allow normal air
circulation for
electronic parts.
