Page 8
10
Indications and displays

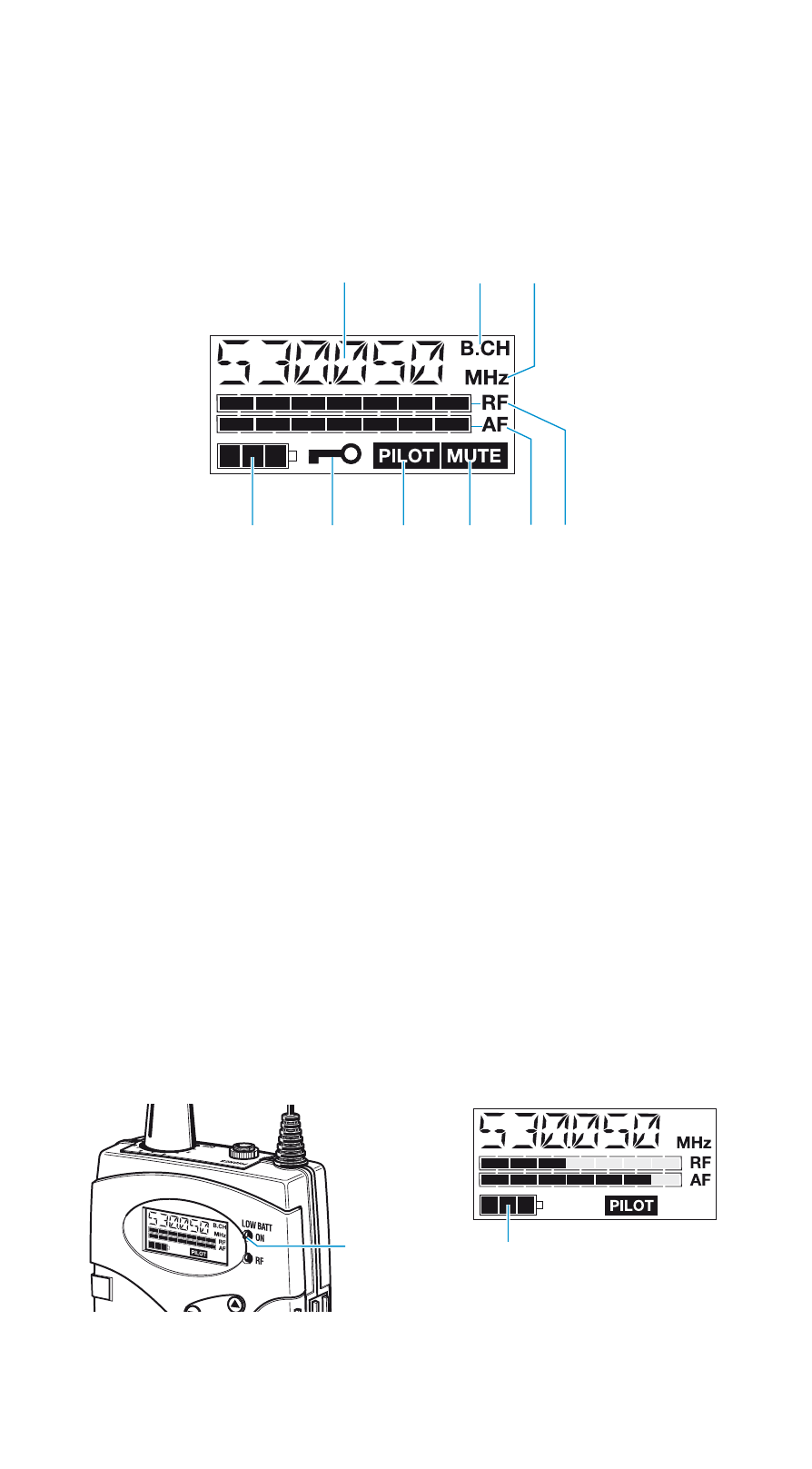

The LC display
ቢ
Alphanumeric display
ባ
“B.CH“ – appears when the channel bank and the channel
number are displayed
ቤ
“MHz“ – appears when the frequency is displayed
ብ
4-step battery status display
ቦ
Lock mode icon (lock mode is activated)
ቧ
“PILOT” display (pilot tone evaluation is activated)
ቨ
“MUTE” display (audio output is muted)
ቩ
7-step level display for audio signal “AF”
ቪ
7-step level display for RF signal “RF”
Operation and battery status indication
The red LED (LOW BAT/ON)
ᕣ
provides information on the
current operating state of the receiver:
ቢ
ብ
ቦ
ቧ
ቨ
ቩ ቪ
ባ ቤ
»
ብ
