16

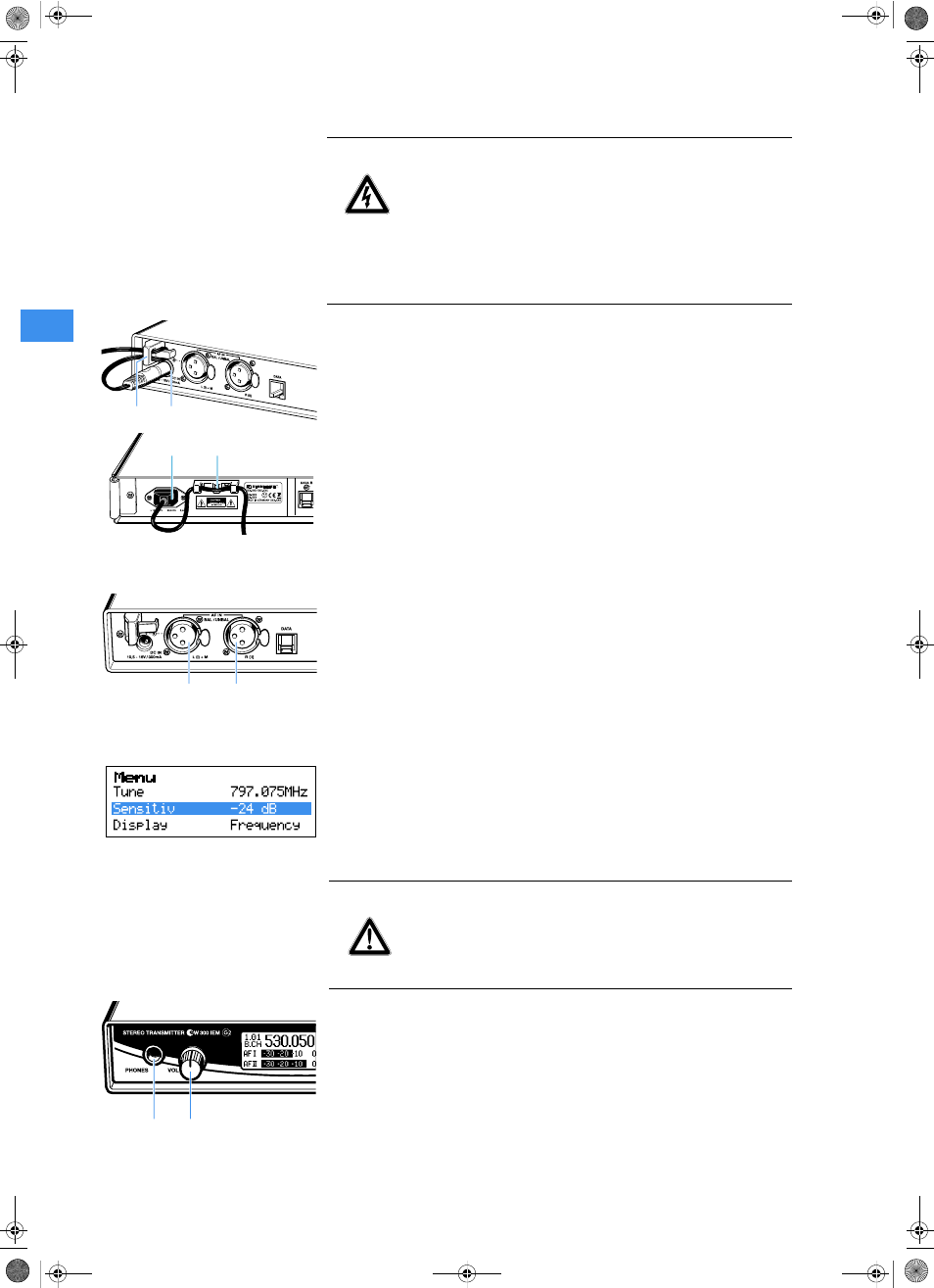

Connecting the transmitter to the mains
Both transmitters have no mains switch.
To connect the transmitter to the mains:
̈ Pass the cable through the cable grip ¾ .
̈
Connect the supplied mains cable to the 3-pin IEC mains socket
º
.
̈
Plug the mains connector into the wall socket.
To disconnect the transmitter from the mains:
̈
Pull out the mains connector from the wall socket.
Connecting the amplifier/mixing console
̈ Connect the amplifier/mixing console to the XLR-3F sockets Ƹ (left and
MONO) or
ƹ
(right).
Both balanced and unbalanced connection is possible (see “Connector
assignment” on page 39).
Note:
Any device that is only suitable for mono operation must be connected to
XLR-3F socket
Ƹ . In this case, set the transmitter to mono operation via
the menu.
̈ Via the “ Sensitiv ” menu, adjust the transmitter’s input sensitivity (see
“Adjusting the sensitivity (transmitter only)” on page 30).
Connecting the headphones/ monitoring the audio signal
To monitor the audio signal:
̈
Set the headphone volume control
»
to the lowest volume by turning it
to the left as far as possible.
̈ Connect headphones with a ¼” (6.3 mm) stereo jack plug to the
headphone output (PHONES)
·
.
̈
Gradually turn up the volume.
CAUTION! Damage due to electric current!
If you connect the transmitter to an unsuitable power supply,
this can cause damage to the device.
̈
Use the supplied mains cable to connect the receiver to the
mains (100 to 240 V AC, 50 or 60 Hz).
̈ Ensure a reliable mains ground connection of the receiver –
especially when you are using multi-outlet power strips or
extension cables.
º ¾
¾ º
Ƹ ƹ
CAUTION! Danger of hearing damage!
Listening at high volume levels for long periods can lead to
permanent hearing defects.
̈ Set the volume for the connected headphones to the
minimum before putting the headphones on.
