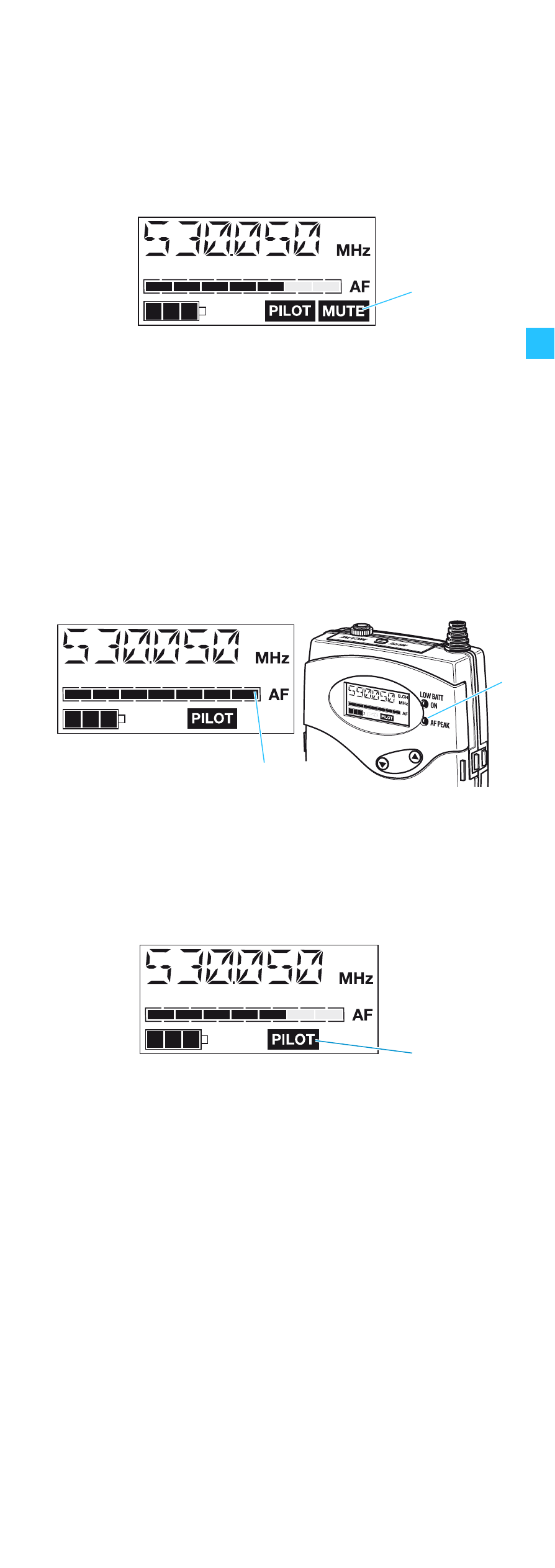

“MUTE” display
The “MUTE” display
ቨ
appears on the display panel when
the transmitter is muted (see “Muting the transmitter” on
page 14).
Modulation display
The level display for audio signal “AF”
ቩ
shows the
modulation of the transmitter.
When the transmitter’s audio input level is excessively
high, the level display for audio signal “AF”
ቩ
shows full
deflection for the duration of the overmodulation. In
addition, the yellow LED (AF PEAK)
ᕤ
at the front of the
transmitter lights up.
“PILOT” display
The “PILOT” display
ቧ
appears on the display panel when
the pilot tone transmission is activated (see “Activating/
deactivating the pilot tone transmission” on page 23).
Display backlighting
After pressing a button, the display remains backlit for
approx. 15 seconds.
