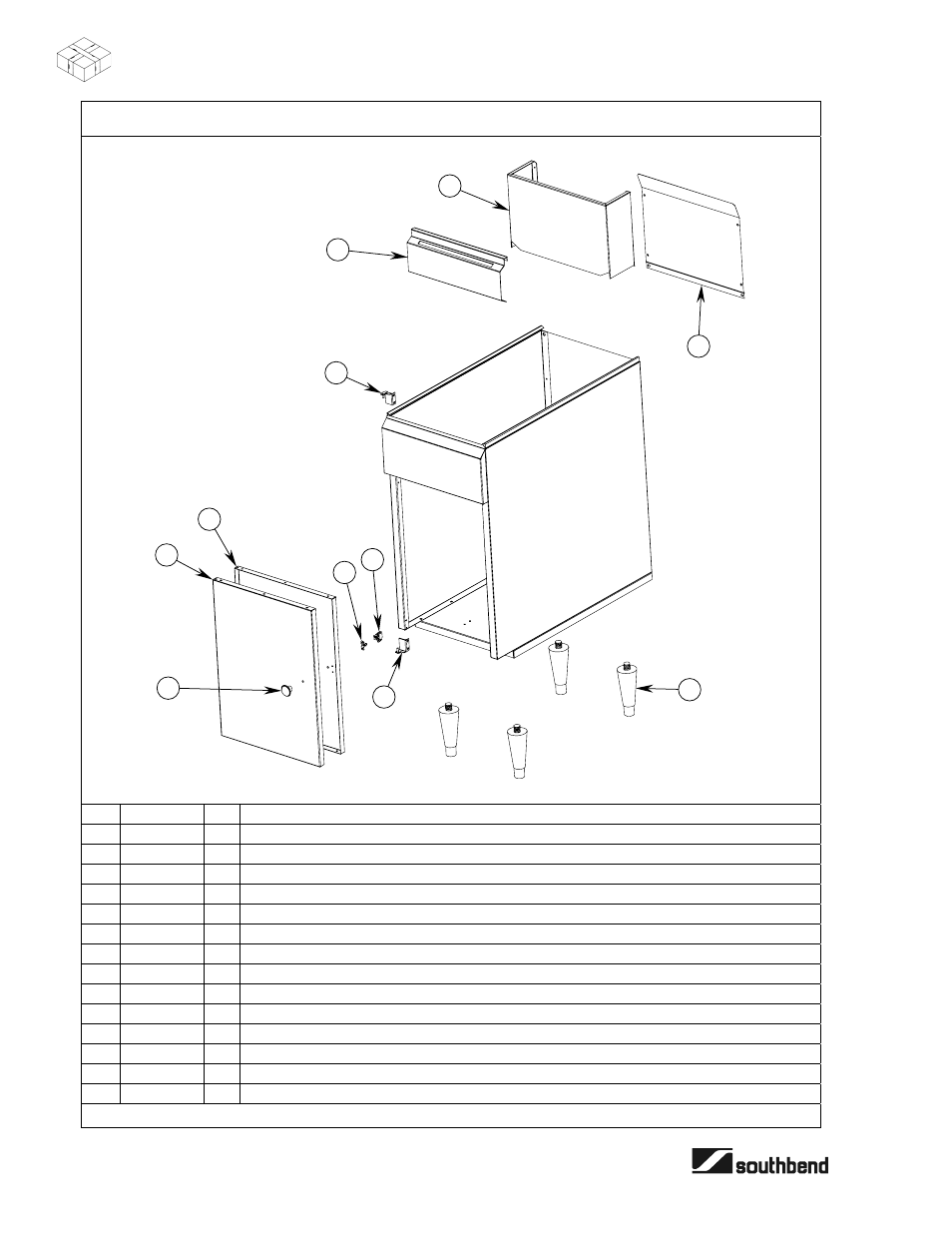

Cabinet Parts for 35-Pound and 45-Pound Fryers
1
2
3
4
5
6
7
8
9
10
11
Key Part Number Qty Description
1 1-2849 1 Knob, door
2 1182205 1 Door
3
1182016 1 Panel, inner door
4 1164132 1 Door striker
5 1164133 1 Catch, door
6 1182025 1 Bracket, bottom door
7 1182024 1 Bracket, top door weld assembly
8 1182212 1 Fry panel
9 1182209 1 Splasher weld assembly
10 1182216 1 Cover splasher rear
11 1178205 1 Leg, black (set of four)
* 1172650 1 Leg pad
*
1174265 1 Casters (optional, set of four)
* 1174262 1 Earthquake legs (optional, set of four)
* not shown on drawing.
