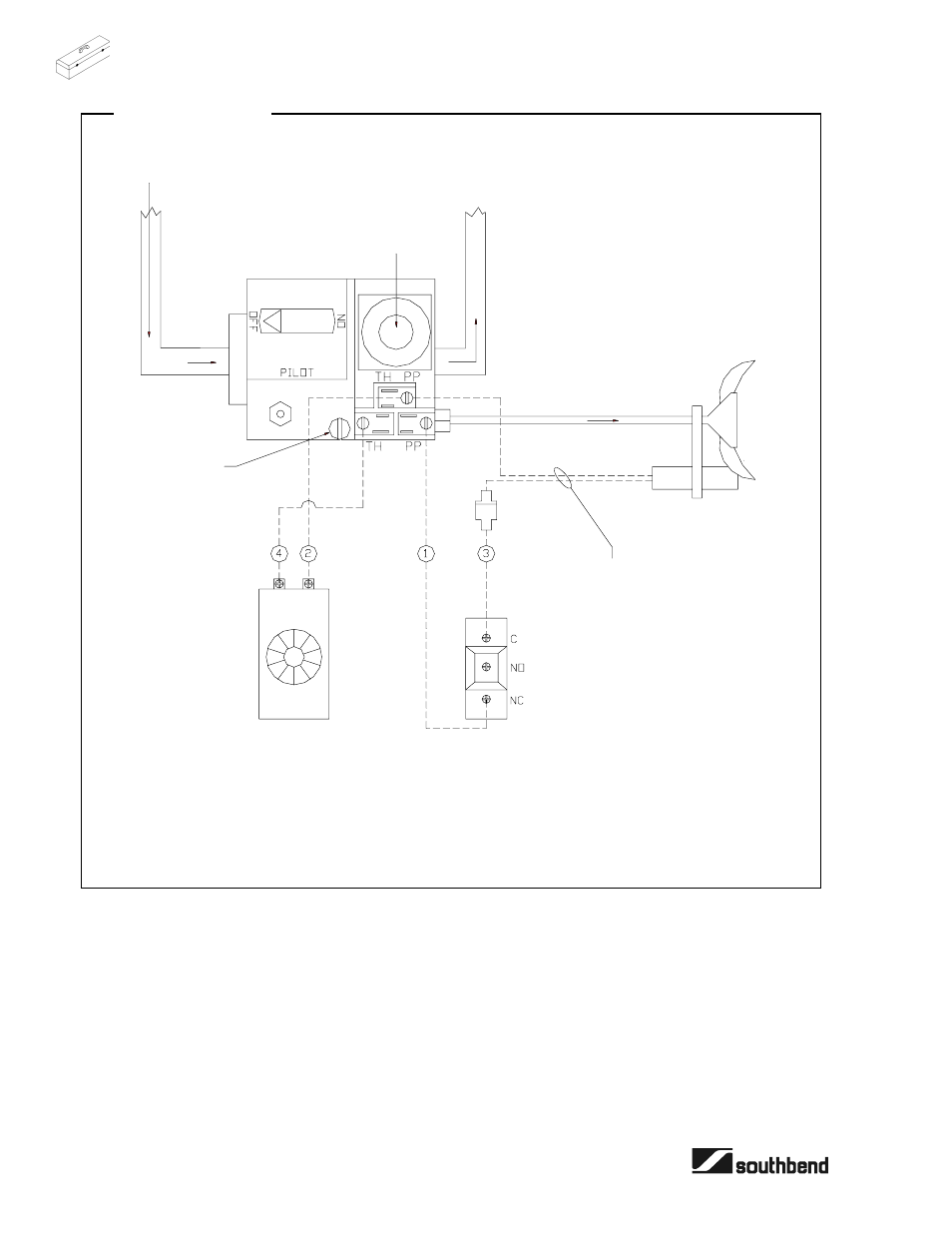

Wiring Diagram
GAS INLET
Notes:
1. High limit switch is set to 450
°F.
2. Voltage measured across TH/PP and TP with main burner on should be greater than 100 mV.
REGULATOR
ADJUSTMENT
MAIN
G
A
S
THERMOPILE
COMPONENT
LEADS
PILOT GAS
PILOT
LIMITING
THERMOSTAT
COMBINATION
GAS VALVE
REGULATING
THERMOSTAT
PILOT
ADJUSTMENT
