Sony JAX-S8 - Manual (Page 5)

5
En

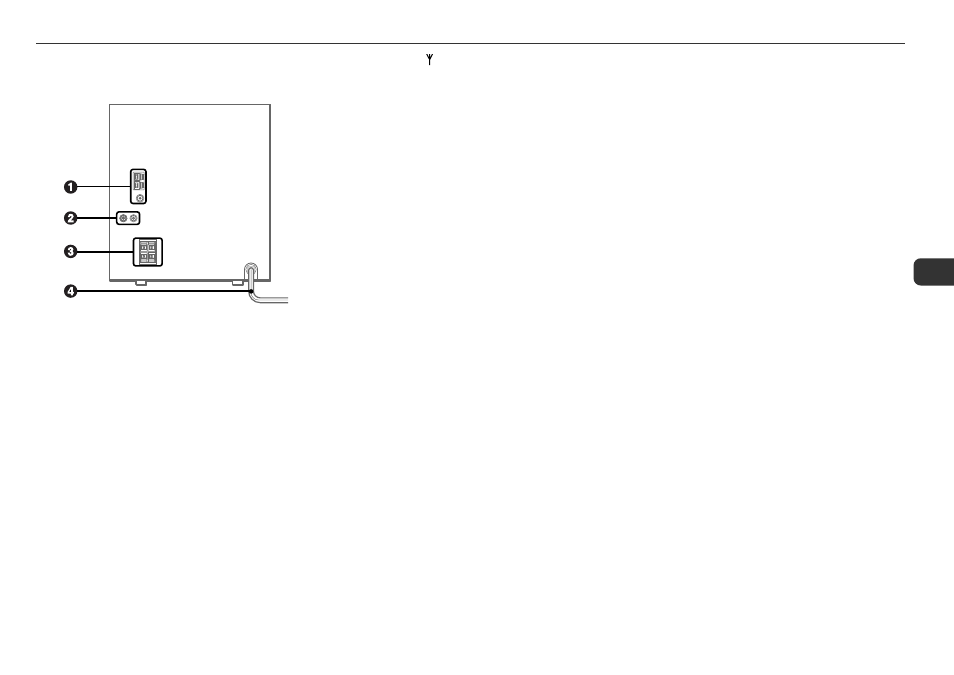

Main unit: rear
Refer to the pages indicated in parentheses for details.
1 AM LOOP, FM 75
Ω
terminals (4)
Plug in the supplied AM and FM antennas here.
2 VIDEO (MD) jacks
Accepts analog sound signals from external equipment.
Connect using an optional connecting cable with RCA
phono plugs (red plug to R jack, white plug to L jack).
Refer also to the operating instructions of your equipment.
To switch function to external input, press VIDEO (MD).
Tip:
To change the displayed name for this function, turn the
unit on, then hold down VIDEO (MD) and press POWER
on the unit. Repeat the procedure to select “VIDEO” or
“MD”.
3 SPEAKER terminals (4)
Connect the speaker cord of the supplied front speakers
here.
4 AC power cord (4)
PARTS AND CONTROLS
