10.0 Control Panel main menu
10.1 Control Panel
Your Jacuzzi Spa is equipped with a state-of-the-art control panel. You
will be able to access sets of multi-level menus. Familiarize yourself with
the following information, so you can gain the full benefits of your spa. By
learning the key features of the control panel, you will navigate through
the menus and programming with ease. You will be referred back to this
page as you move on to proceeding sections. Please pay close attention
to the key points below.
Although the graphics on the LCD display are vivid and colorful, the •
screen is not a touch-screen. The screen does display menu icons
on every corner. These menus are activated by the button located
just to the side of them (buttons A-D).
At times you will see up, down, left or right arrows surrounding key •
features that are selected or made by using the Navigational Quad
Keypad (see below).
In the center of the Quad Keypad is the “Splash” button. This button •
is mostly used to save, set, reset or enter your changes.
Located to the left, about mid-screen, is an icon that lets you know •
what menu you are currently in.
note: The Start up menu will time out after approximately 3 seconds and
then change to the display in Section 10.2, page 35.

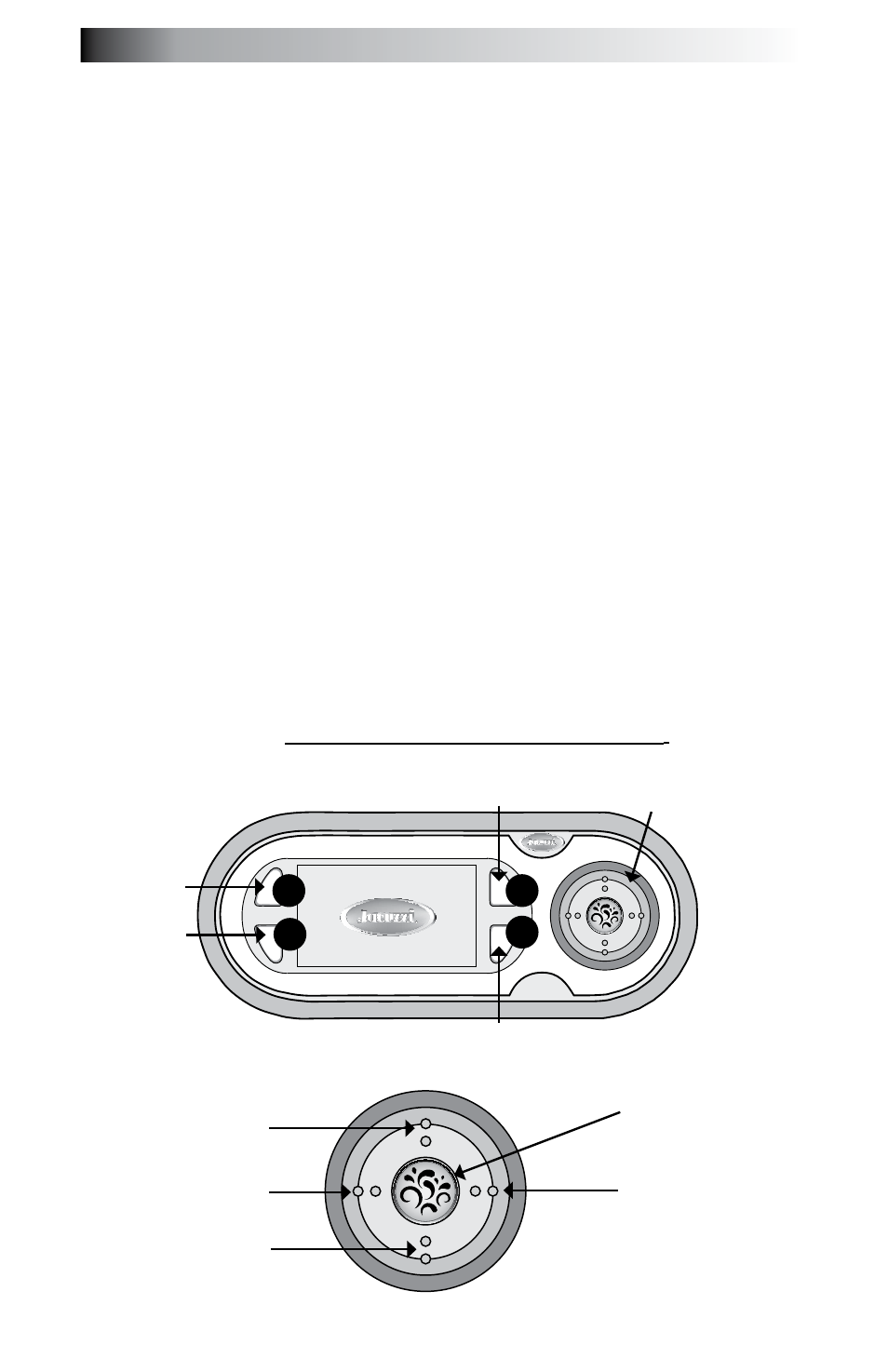

START UP MENU DIAGRAM
Welcome to the
Family
BUTTON A
BUTTON B
BUTTON C
BUTTON D
UP
LEFT
DOWN
SPLASH
RIGHT
NAVIGATIONAL
QUAD KEYPAD
(see below)
a
b
C
D
