5 digital output cable (lvds/rs-422 version), Figure 5. digital output cable 30dg-02, Digital output cable (lvds/rs-422 version) – JAI TM-1020 User Manual

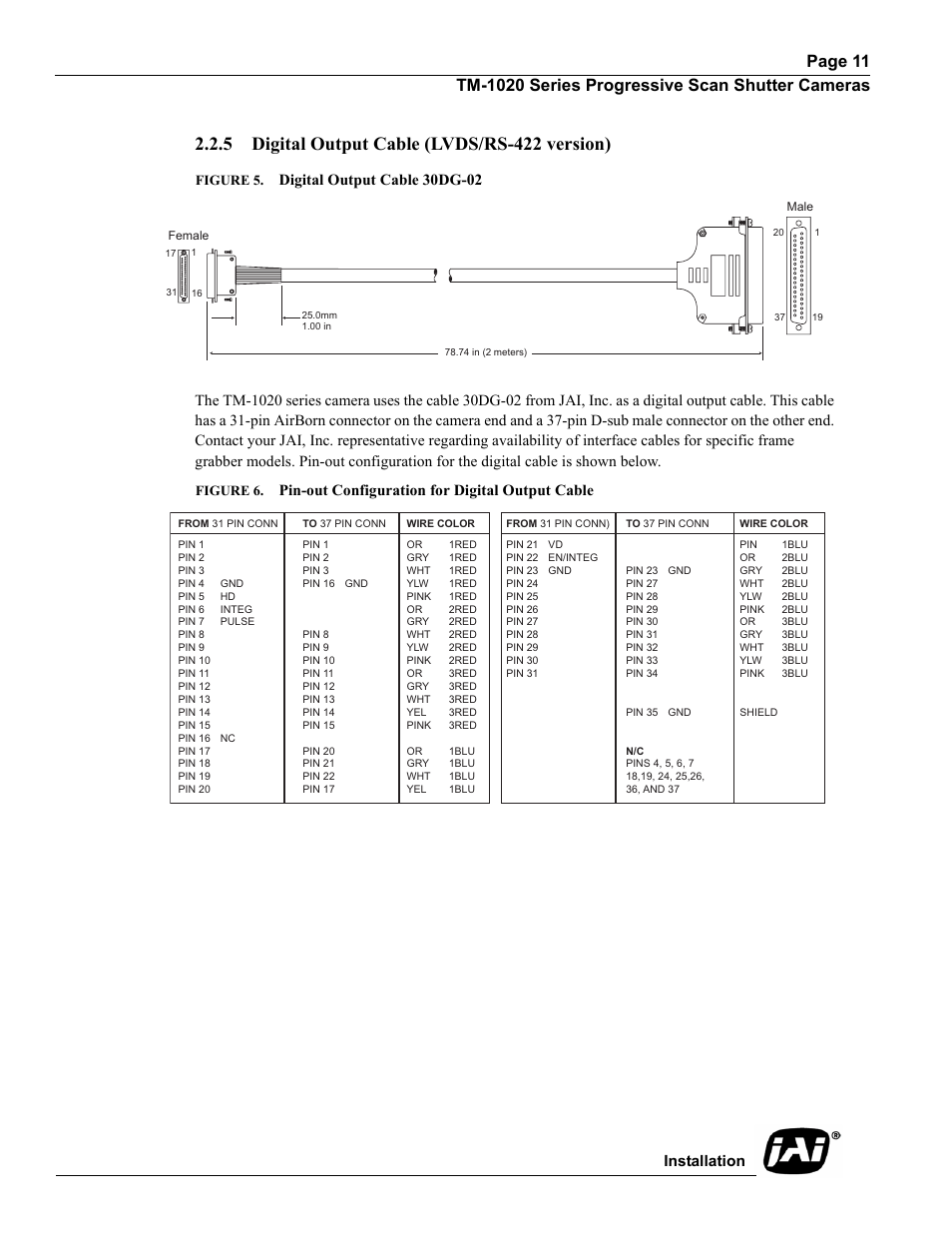

Page 21: Figure 5, Digital output cable 30dg-02, Figure 6, Pin-out configuration for digital output cable, Installation
