Connector pinouts f, Appendix f, Connector pinouts – Insignia HRSD16 User Manual

Page 145: Figure f-1, I/o connector pinouts, Figure f-2, Rs485 connector pinouts

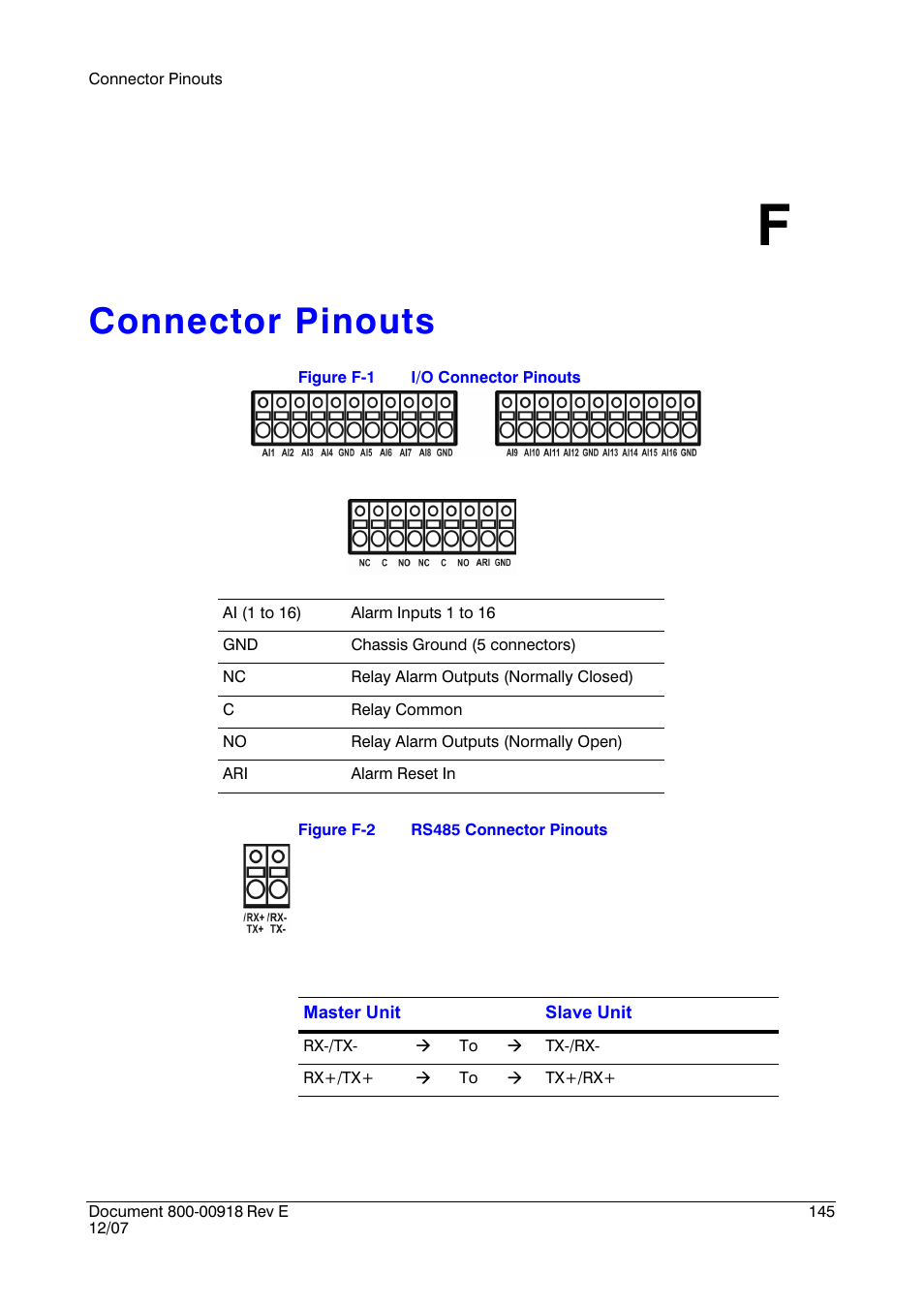

Connector pinouts f, Appendix f, Connector pinouts | Figure f-1, I/o connector pinouts, Figure f-2, Rs485 connector pinouts | Insignia HRSD16 User Manual | Page 145 / 160 Connector pinouts f, Appendix f, Connector pinouts | Figure f-1, I/o connector pinouts, Figure f-2, Rs485 connector pinouts | Insignia HRSD16 User Manual | Page 145 / 160
