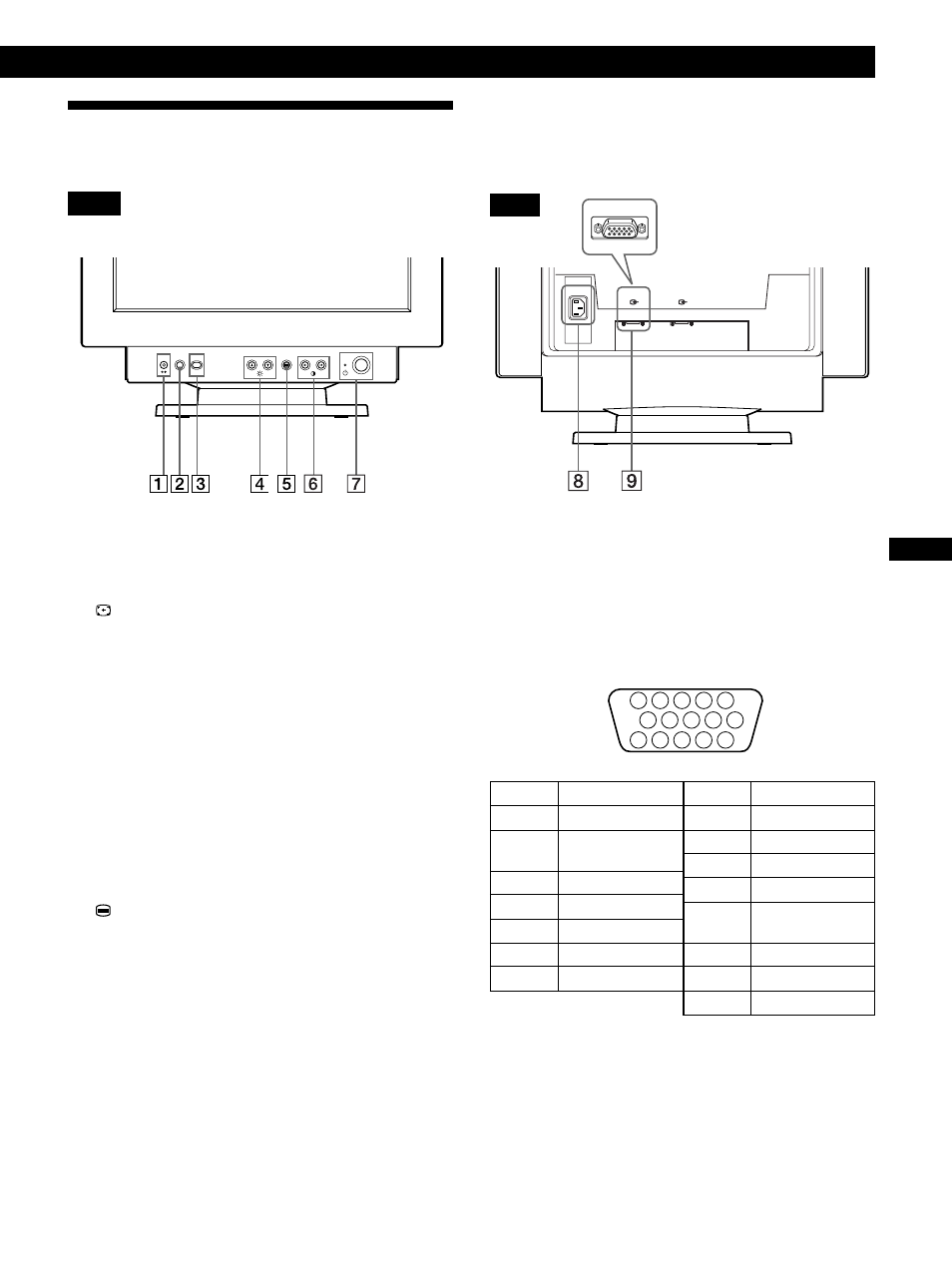

Identifying Parts and Controls

See the pages in parentheses for further details.

Front

Rear

Pin No.

1

2

3

4

5

6

7

Pin No.

8

9

10

11

12

13

14

15

Signal

Red

Green
(Sync on Green)

Blue

ID (Ground)

DDC Ground*

Red Ground

Green Ground

Signal

Blue Ground

DDC + 5V*

Ground

ID (Ground)

Bi-Directional
Data (SDA)*

H. Sync

V. Sync

Data Clock(SCL)*

*

Display Data Channel (DDC) Standard of VESA

1 ? (reset) button (page 15)

Resets the adjustments to the factory settings.

2

ASC (auto sizing and centering) button

(page 5)

Automatically adjusts the size and centering of the
picture.

3 Input switch (page 5)

Selects the INPUT 1 (video input 1 connector: J1) or
INPUT 2 (video input 2 connector: J2) video input
signal.

4 ¨ (brightness) down and up (./>) buttons

(pages 6 – 15)

Adjust the picture brightness.

Function as the (./>) buttons when adjusting other
items.

5

(menu) button (pages 6 – 16)

Displays the MENU OSD.

6 > (contrast) left and right (?//) buttons

(pages 6 – 14, 20)

Adjust the contrast.

Function as the (?//) buttons when adjusting other
items.

7 u (power) switch and indicator (pages 16,

20)

Turns the monitor on or off.
The power indicator lights up in green when the
monitor is turned on, and either flashes in green and
orange, or lights up in orange when the monitor is in
power saving mode.

8 AC IN connector (page 4)

Provides AC power to the monitor.

9 Video input 1 connector (HD15) (J1)

(page 4)

Inputs RGB video signals (0.700 Vp-p, positive) and
sync signals.

5 4

3 2 1

6

7

8

9

10

11

12

13

14

15

1- -2
