Ives Offset Top Pivot 7245F - Manual (Page 2)

26363 Rev. 3

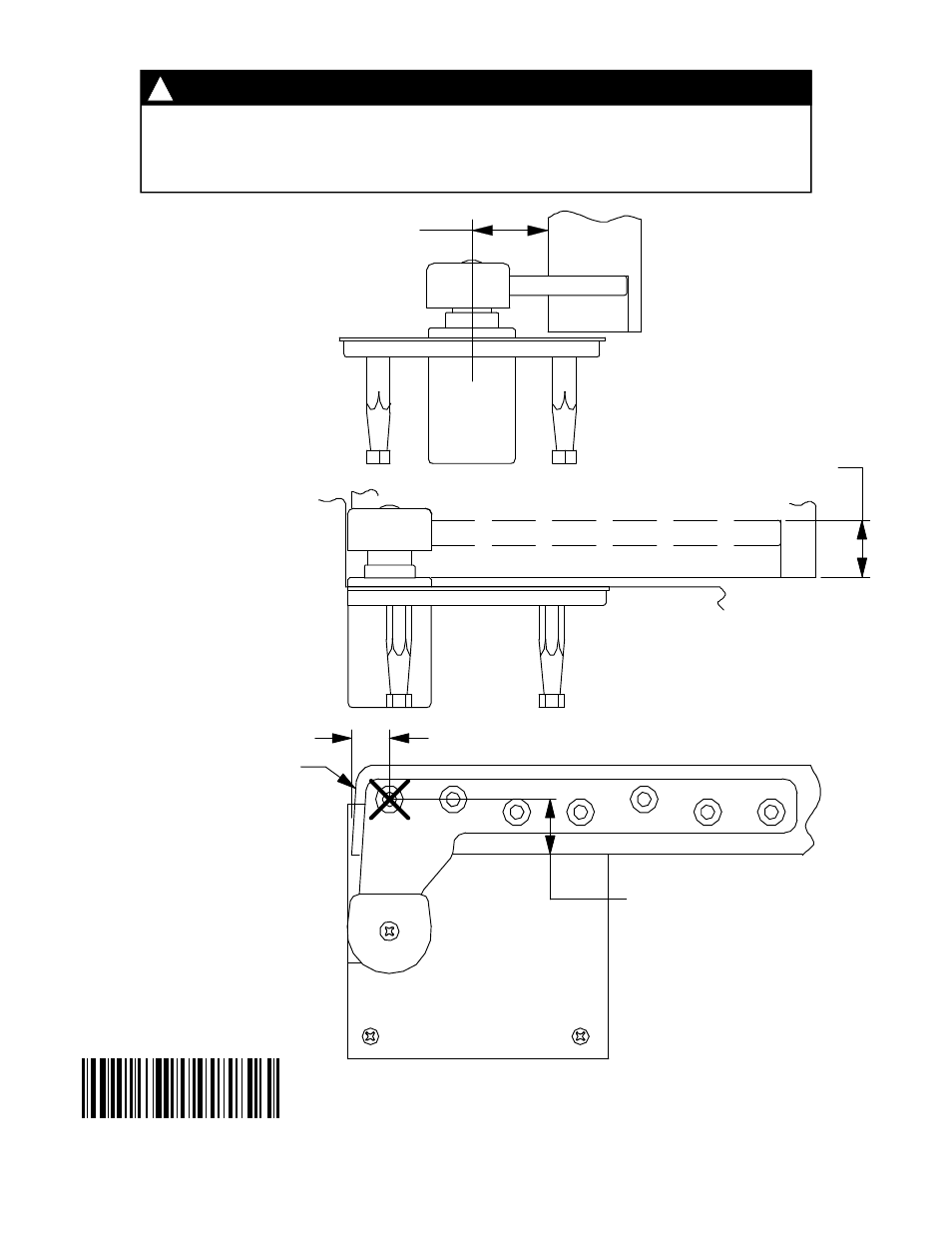

It is very important for installer to verify that center line of top pivot point lines up
with center line of bottom pivot point before final installation. Heel edge of door
must be beveled 1/8” in 2” as shown below.
NOTE !
Right hand installation shown;
left hand opposite
3/4”, 19 mm
1-1/8”
29 mm
Depth of mortise will vary
depending upon installation
and/or threshold height. *
Bevel heel edge
of door 1/8” in 2”
with 3/16” rad, typ
9/16”
14 mm * 1”
25 mm
to
*
1-1/2”
38 mm
26363-00
