OM-1096 Page 5
SECTION 2 – SPECIFICATIONS
2-1. Motorized Slide Specifications
Specification Description
Input Power 115 Volts AC From MSC-2
Max. Load Capacity 12 in. (305 mm)
From Cover (Face Plate) Vertical Mounting: 75 lbs (34 kg); Horizontal Mounting: 74 lbs (33 kg) (See Section 2-3)
Total Slide Travel 5 in. (127 mm)
Travel Speed Standard: 18 ipm (0.457 mpm); Optional: 27 ipm (0.686 mpm)
Overall And Mounting Dimensions See Section 2-4
Interconnecting Cord Length 10 ft. (3 m)
Weight Net: 32 lbs (14.5 kg); Ship: 45 lbs (20.4 kg)
Mounting Kit See Rear Cover
2-2. MSC-2 Specifications
Specification Description
Input Power 115 Volts AC; 60 Hz
Overall And Mounting Dimensions See Section 2-5
Power Cord Length 10 ft. (3 m)
Weight Net: 12 lbs (5.4 kg); Ship: 16 lbs (7.2 kg)
Mounting Kit See Rear Cover

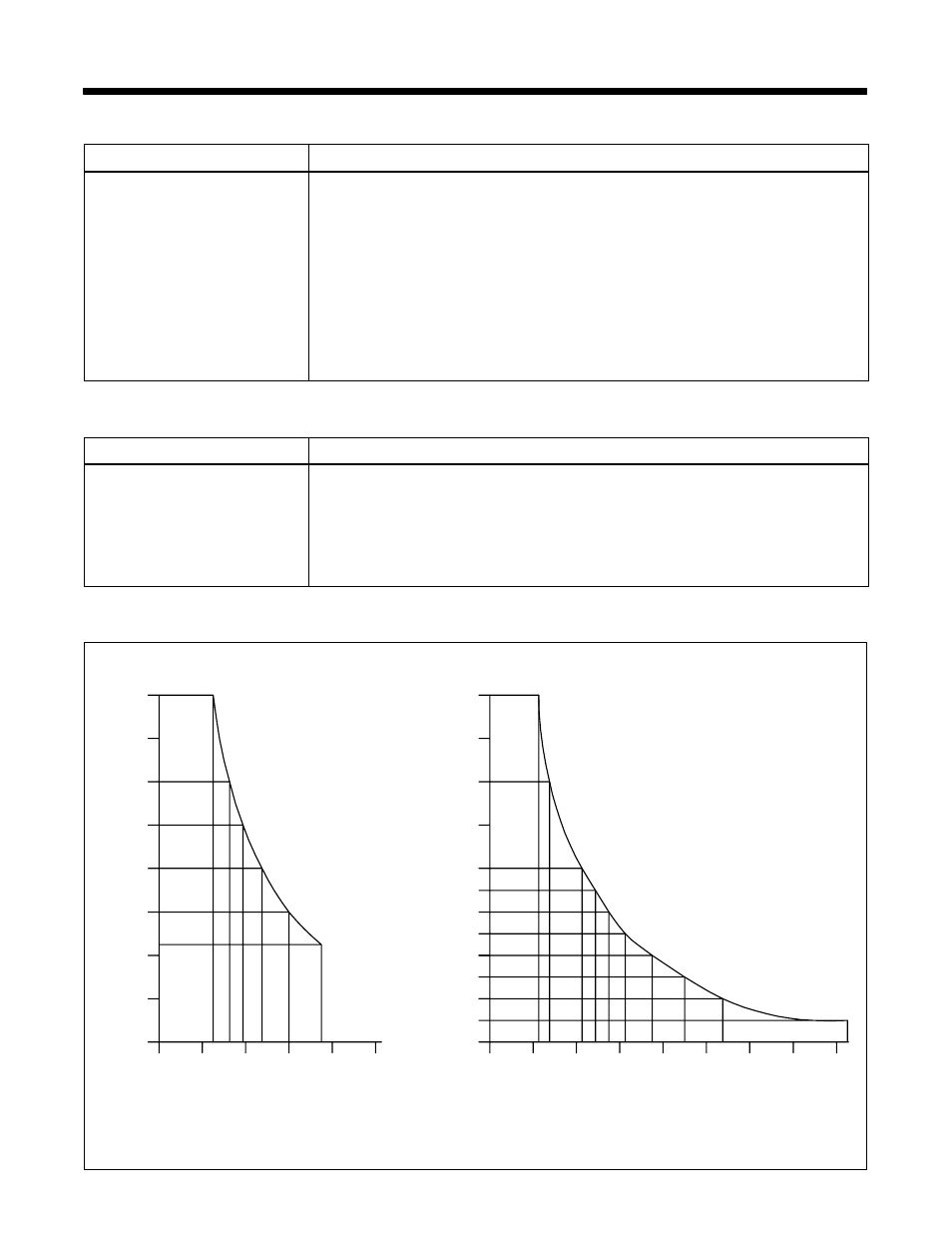

2-3. Load Data
ST-106 651-A / ST-106 652-A
48 in.
(1219 mm)
42 in.
(1067 mm)
36 in.
(914 mm)
30 in.
(762 mm)
24 in.
(610 mm)
18 in.
(457 mm)
12 in.
(305 mm)
6 in.
(152 mm)
*0 in.
(0 mm)
48 in.
(1219 mm)
42 in.
(1067 mm)
36 in.
(914 mm)
30 in.
(762 mm)
24 in.
(610 mm)
18 in.
(457 mm)
12 in.
(305 mm)
6 in.
(152 mm)
*0 in.
(0 mm)
0 lbs.
(0 kg)
20 lbs.
(9 kg)
40 lbs.
(18 kg)
60 lbs.
(27 kg)
100 lbs.
(36 kg)
0 lbs.
(0 kg)
20 lbs.
(9 kg)
40 lbs.
(18 kg)
60 lbs.
(27 kg)
100 lbs.
(45 kg)
120 lbs.
(54 kg)
140 lbs.
(64 kg)
160 lbs.
(73 kg)
VERTICAL
OPERATION
HORIZONTAL
OPERATION
LOAD WEIGHT LOAD WEIGHT
**DISTANCE **DISTANCE
*0 in. as referenced from motorized slide cover (face plate), and not from equipment mounting plate.
**Center of gravity distance from motorized slide cover (face plate)
80 lbs.
(36 kg)
