Mini R53 User Manual
Page 6
EN/6
Retrofit/installation kit No.: 82 83 0 136 491
Installation instruction No.: 01 29 0 139 395
Status: 06.2001
3 .

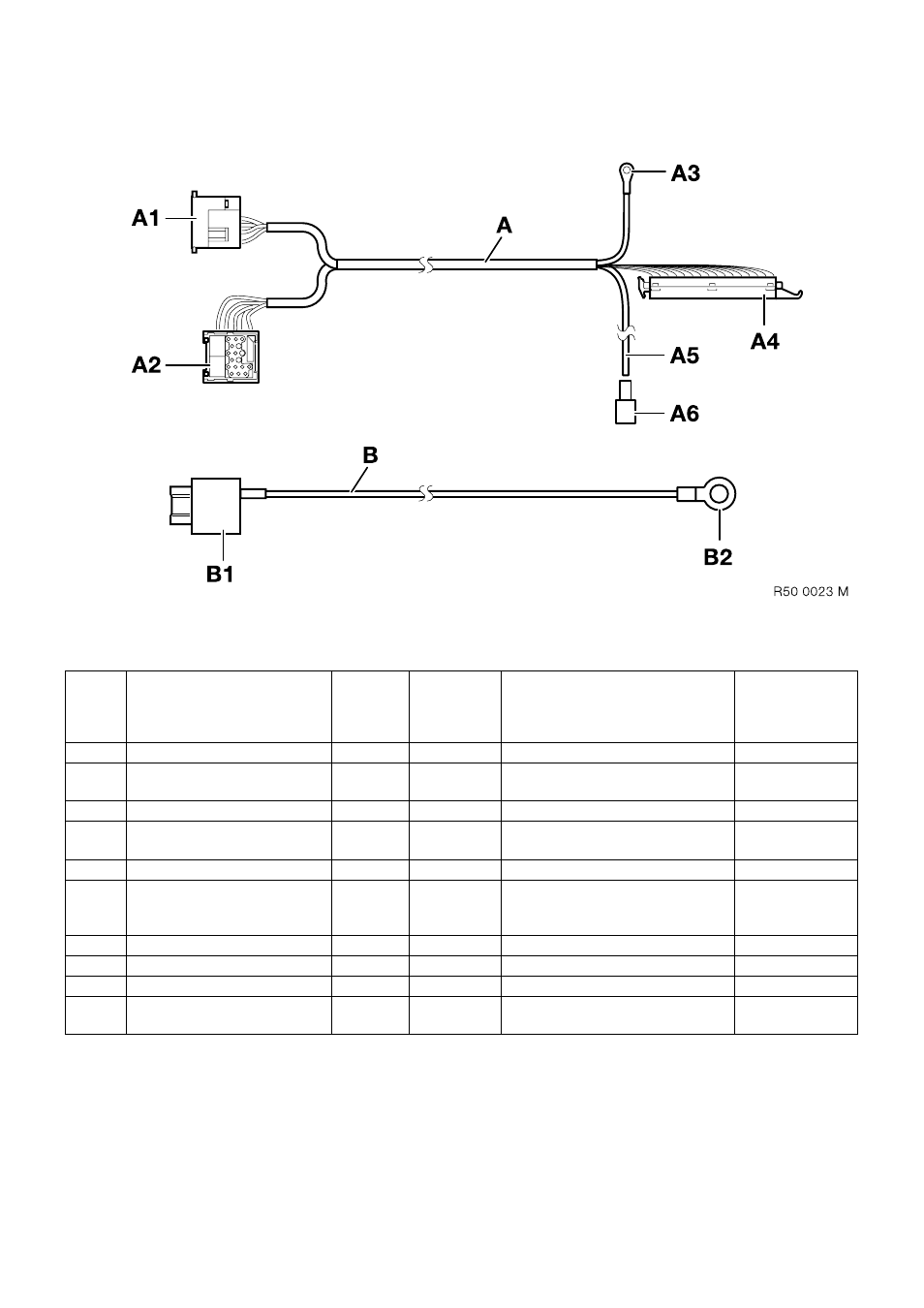

Connection overview, adapter leads and power cables
0
0
The X-designations marked with * apply to this overview only and do not refer to the general service documentation.
I t e m
D e s c r i p t i o n
Signal
W i r e
c o l o u r /
cross
s e c t i o n
C o n n e c t i o n l o c a t i o n i n v e h i c l e
D e s i g n a t i o n /
p l u g - i n s l o t
A
Adapter lead
---
---
---
---
A1
17-pin pin housing
---
---
17-pin radio plug connector X2519
on vehicle wiring harness
X2*
A2
17-pin socket housing
---
---
radio in instrument panel
X2519
A3
Cable shoe 6 mm
Ground
brown/
4 mm
2
ground terminal point, splashboard
in engine compartment
---
A4
25-pin socket housing
---
---
amplifier
X1*
A5
Stranded wire
---
red/4 mm
2
cut to length, crimp on supplied flat-
pin terminal A6 and plug into fuse
holder B1
---
A6
Flat-pin terminal
---
---
crimp on branch A5
---
B
Power cable
---
---
---
---
B1
Fuse holder with fuse (20 A)
---
---
secure in battery box
---
B2
Cable shoe 6 mm
Terminal
30
red/4 mm
2
battery positive terminal
---
