EN/5 Retrofit/installation kit No.: 82 83 0 136 491
Installation instruction No.: 01 29 0 139 395
Status: 06.2001

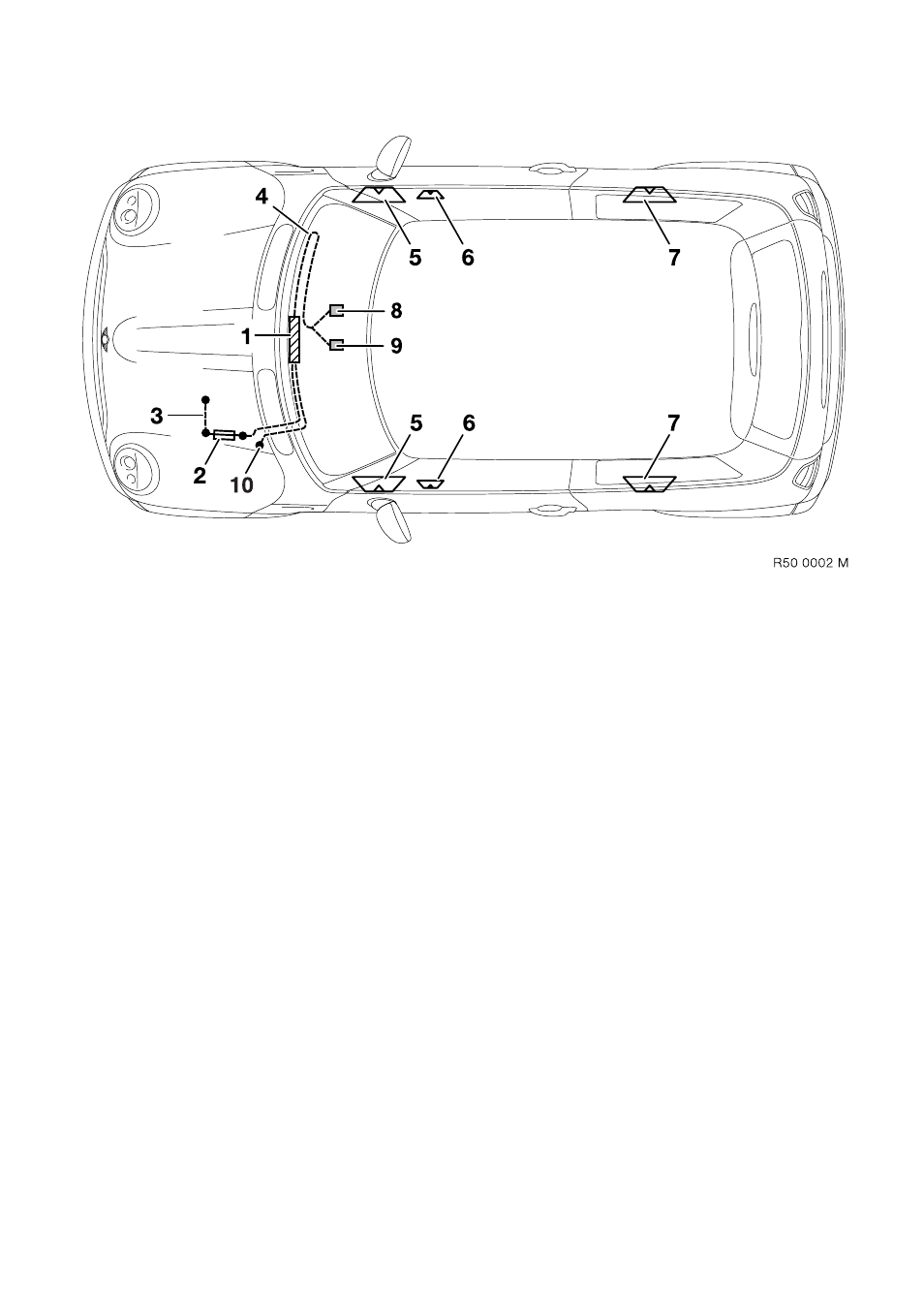

2 . Schematic installation and routing diagram
0
Key
0
1 Amplifier
2 Fuse (20 A)
3 Power cable with fuse holder at B+ (see B2 on Page 6)
4 Adapter lead
5 Woofer/mid-range speaker
6 Tweeter
7 Coax speaker
8 Car radio connector
9 Connector for standard wiring harness
10 Vehicle ground connection (see A3 on Page 6)
