Appendix D: Dimentions and weight, ActiveMedia 170 & 190 TFT

Model

Dimentions (H x W x D)

Weight

ActiveMedia 170 TFT

420mm x 430mm x 53mm

9.5 Kg

ActiveMedia 190 TFT

420mm x 430mm x 53mm

9.5 Kg

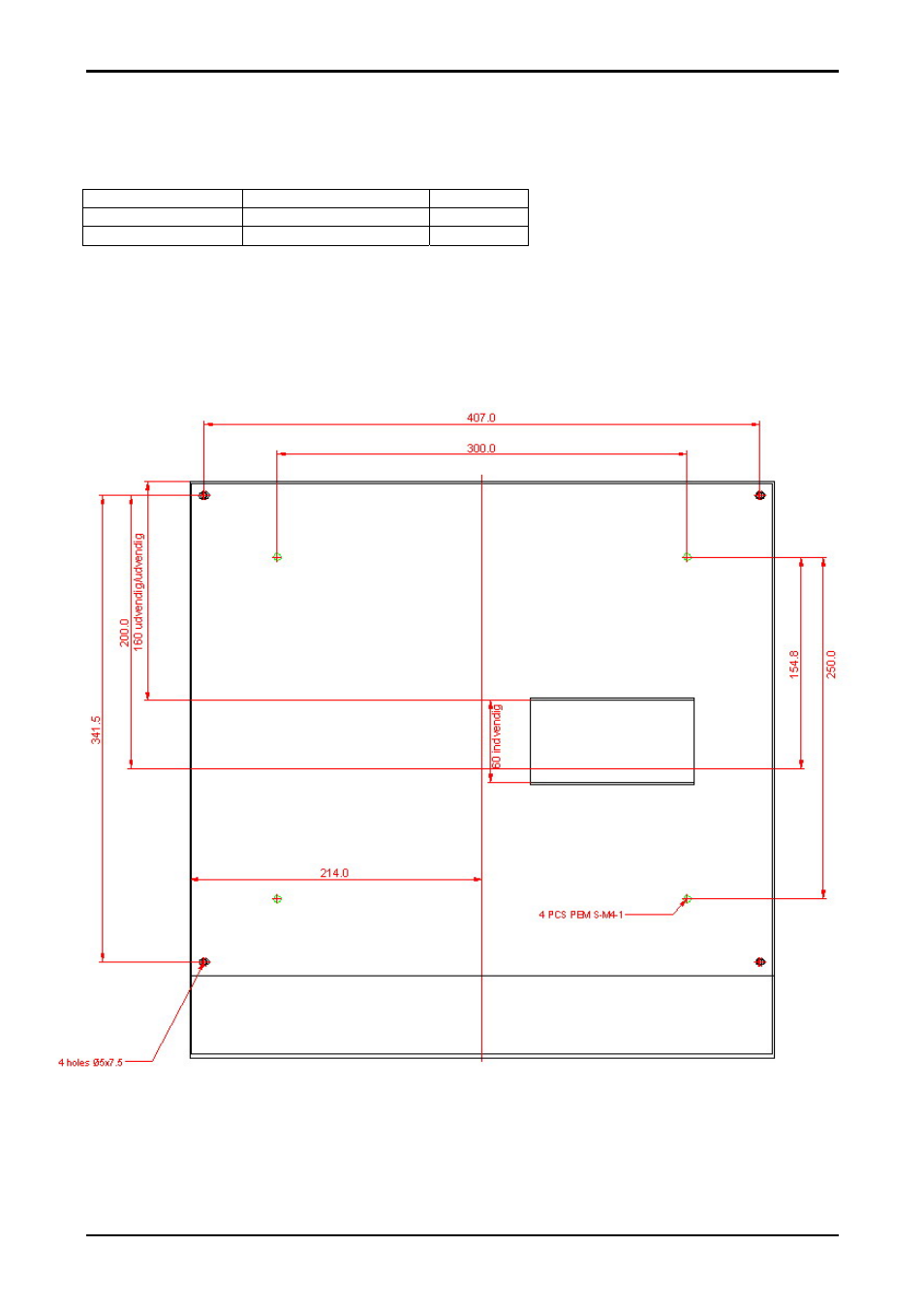

Appendix E: Mounting holes/well positions, ActiveMedia 170 & 190 TFT

P/N: 20-1700-00460 Page 19 of 24
