mermaid ActiveMedia Users Manual ver 2.0

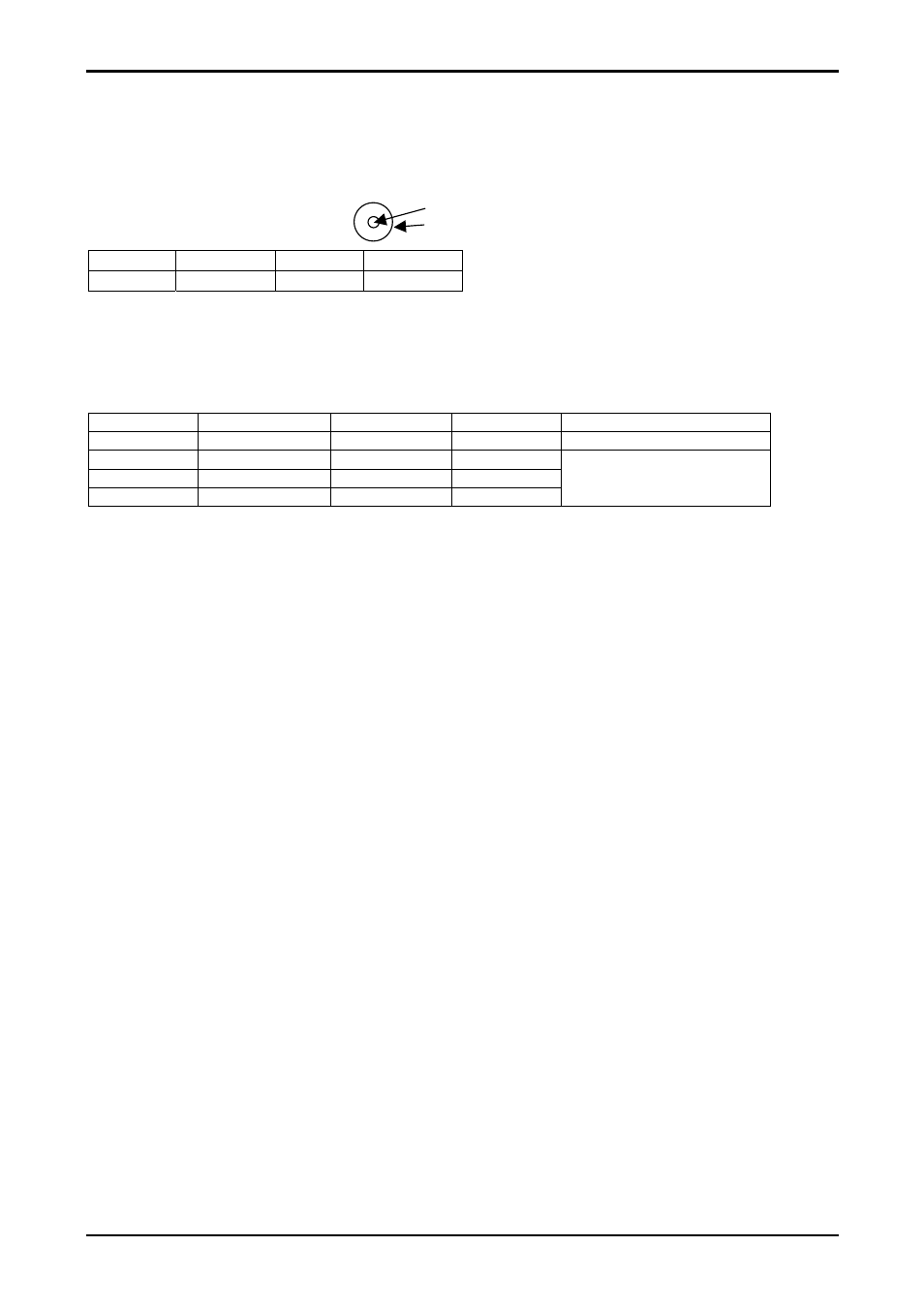

Appendix A: Connector Specifications
Power in
1
2
Power input connector: 2.5 mm DC jack
Pin no Function Pin no Symbol
1 +12 Volt 2 Ground
Appendix B: Power Management Mode: VESA DPMS protocol applied
Mode Horizontal sync Vertical sync Video signal Power Consumption (max)
On Active Active Active 27,5W (15”) 40 W (17”& 19”)
Stand.by Inactive Active Blanked
Suspend Active Inactive Blanked
Off Inactive Inactive Blanked
< 3 Watts
P/N: 20-1700-00460 Page 17 of 24
