4-Channel Amplifiers
REF4.50 / REF4.80
5
FEATURES:
- 2 Sets of RCA inputs
- LEVEL: Variable sensitivity from 0.2V to 6V
- BASS BOOST: Adjustable 45Hz bass boost from 0dB to 9dB
- Crossover functions
- FULL: Bypasses all crossovers for full frequency operation
- HIGH: Selects the built in HIGHPASS filter, variable from 15Hz to 250Hz
- CLONE (Ch3/4): Will automatically duplicate the settings on Ch3/4 for Ch1/2
- POWER LED: Indicates the powered up and turned on condition
- PROTECTION LED: Indicates a high voltage, low voltage, short circuit,
hard clip, over heating or DC fault condition.
- MODE: “2” indicates one set of RCA’s are being used. This will also pass signal to channels 3/4 through 1/2 inputs.
“3” indicates bridging channels 3/4 while running 1/2 in stereo. “4” indicates connecting 2 sets of RCA’s to 1/2 and
3/4 inputs.
- LINE OUTPUT: Full range RCA pass through.

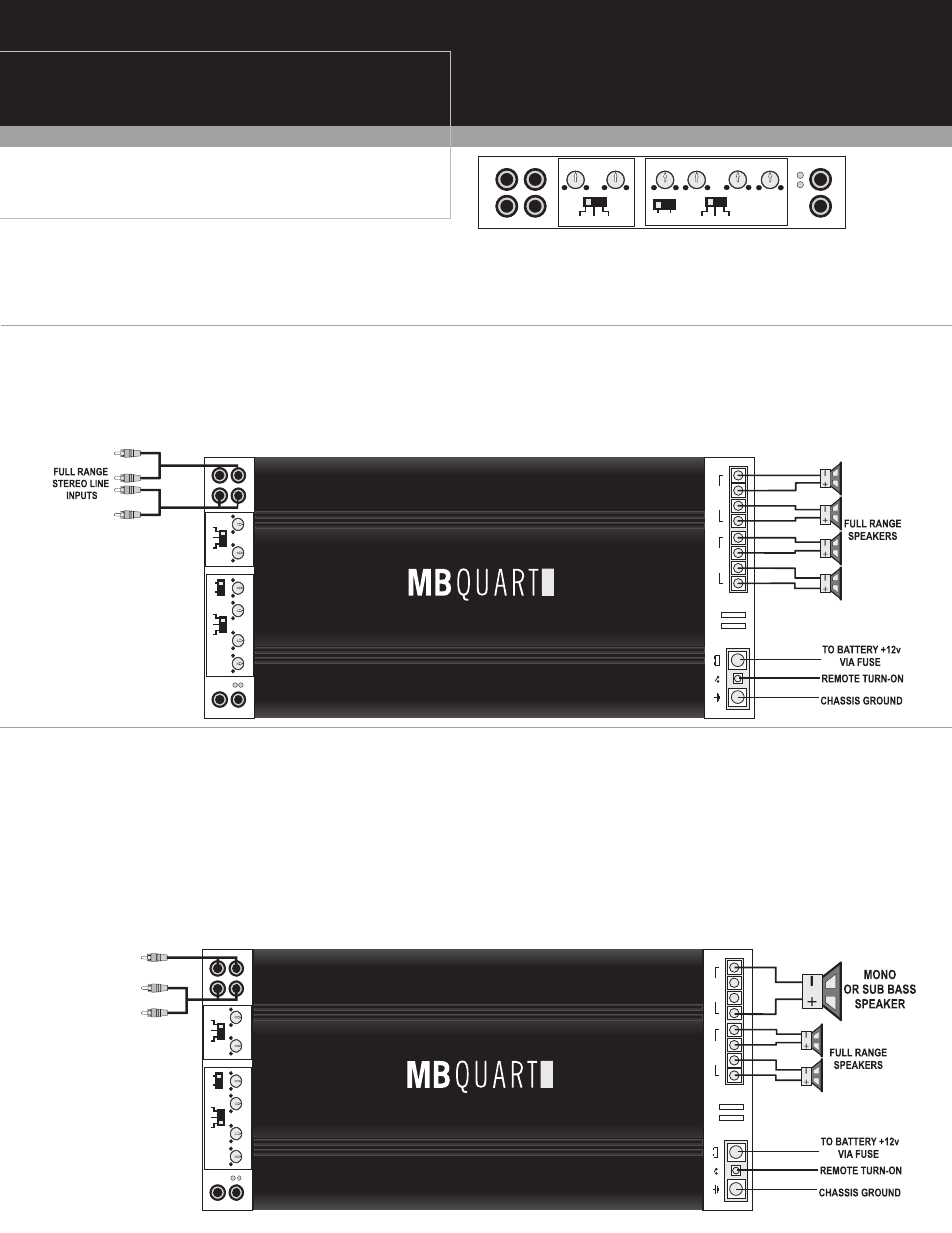

4 Channel Full Range Stereo:
Control checklist:
Interconnect cable checklist:
- Refer to the section “Settings for Best Performance”
- Connect the four inputs of the amplifier to a Radio/CD with quality RCA cables.
Switch setting checklist:
Minimum final loudspeaker impedances:
- 1/2CH X-OVER: FULL
- 2 ohm per channel.
- 3/4CH X-OVER: FULL
MODE: “4” since 2 sets of RCA’s are connected.
2 or 3 Channel System:
- It is necessary to feed the SAME signal to both left and right inputs via a Y-adapter RCA cable.
Here we show how to use the 4 channel amplifiers as a 3 channel unit by taking
- Connect the mono speaker positive terminal to the Ch3 +, and its negative terminal to Ch4 - as
advantage of the mono bridging capability of all MB Quart amplifiers. In order to create
shown.
a 2 channel system, simply follow the example to also mono bridge channel pair 1/2.
Interconnect cable checklist:
Switch setting checklist:
- Connect the inputs of channel pair 1/2 to a suitable stereo source, e.g. a head unit
- 1/2CH X-OVER: FULL
with good quality RCA cables.
- 3/4CH X-OVER: LOW (LOW PASS)
- A MONO signal source is required to bridge channel pair 3/4, such as would be
Control checklist:
available from the mono sub bass output of an active crossover, whether standalone, or
- Refer to the section “Settings for Best Performance”
built into a head unit or equalizer.
Minimum final loudspeaker impedances:
Important: Do not be tempted to connect the hot, or positive outputs, from any source
- 2 ohm per channel in stereo mode.
together to obtain a mono signal, as this could very well damage the output stage of
- 4 ohm mono bridged.
that source.
