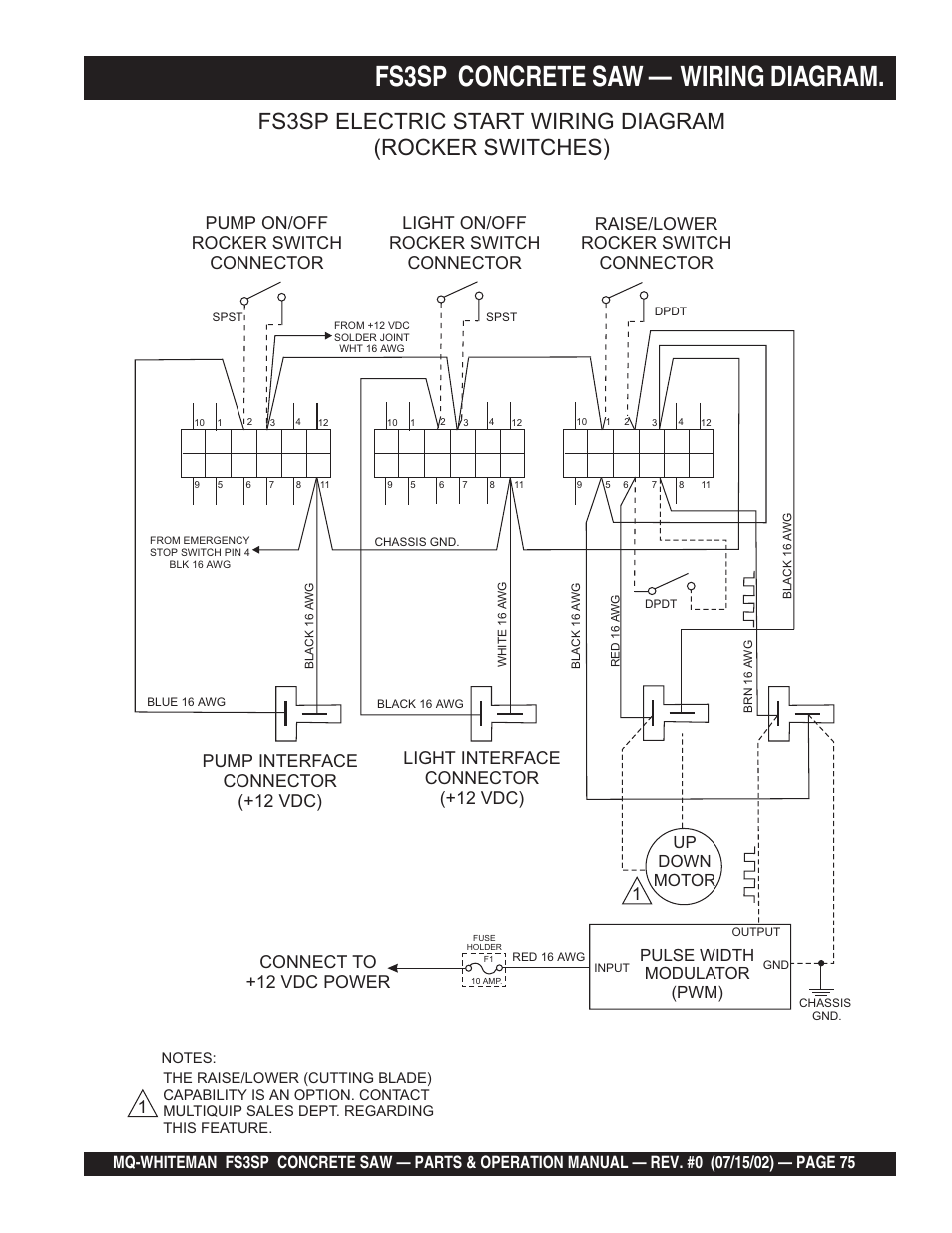

Fs3sp concrete saw — wiring diagram, Raise/lower rocker switch connector, Connect to + 2 vdc power 1 – Multiquip Whiteman Concrete Saw FS3SP User Manual

Page 75: Up down motor, Pulse width modulator (pwm)

Fs3sp concrete saw — wiring diagram, Raise/lower rocker switch connector, Connect to + 2 vdc power 1 | Up down motor, Pulse width modulator (pwm) | Multiquip Whiteman Concrete Saw FS3SP User Manual | Page 75 / 78 Fs3sp concrete saw — wiring diagram, Raise/lower rocker switch connector, Connect to + 2 vdc power 1 | Up down motor, Pulse width modulator (pwm) | Multiquip Whiteman Concrete Saw FS3SP User Manual | Page 75 / 78
