3 checking connections, 5 configuring the rim100, 1 device instance – Maretron Run Indicator Module RIM100 User Manual

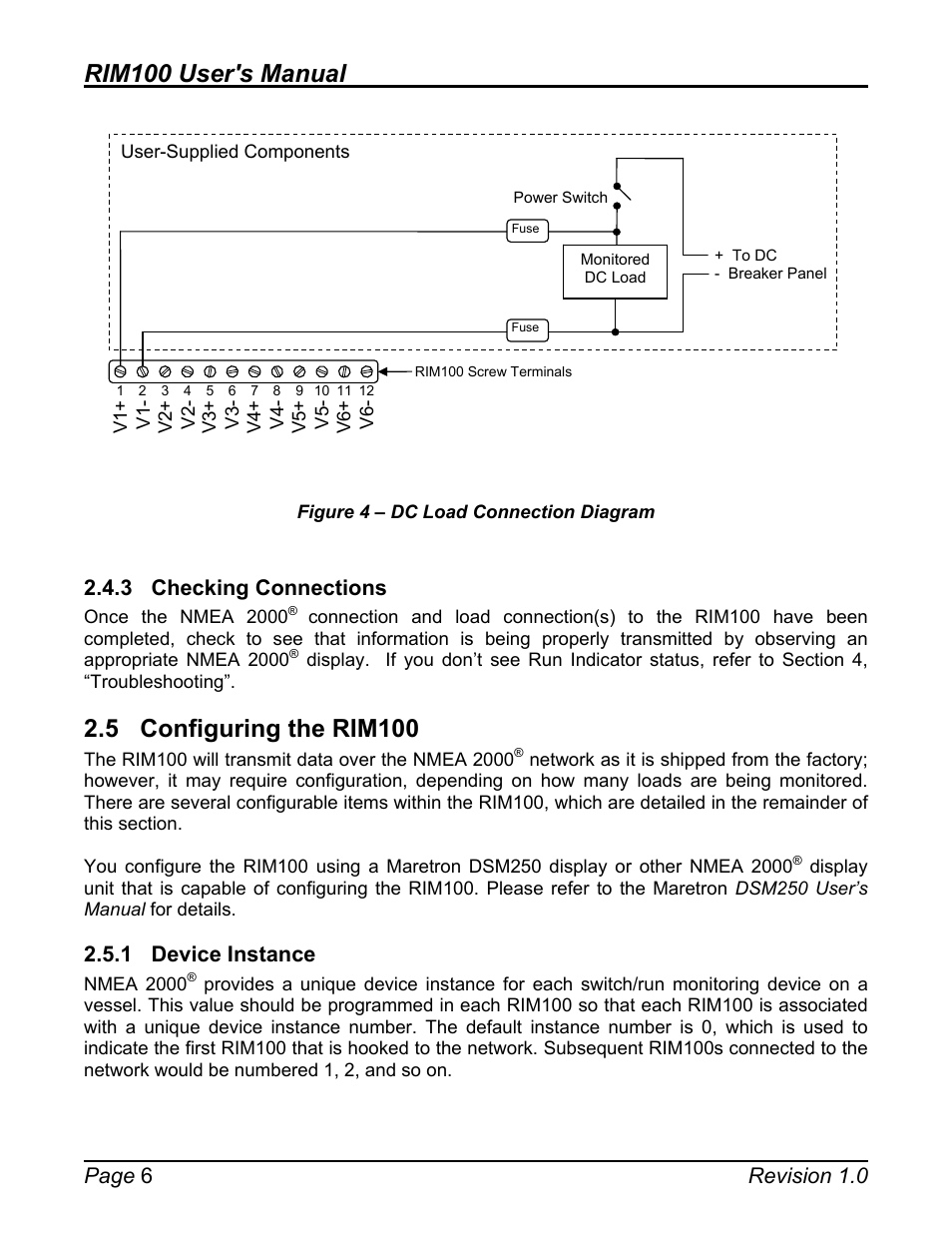

Page 10: Checking connections, Configuring the rim100, Device instance, Figure 4 – dc load connection diagram, Rim100 user's manual, Page 6 revision 1.0
