57 40-50-3005 Feed Finger Spring 1
58 44-86-0705 Retainer Ring 1
59 34-40-3235 O-Ring 1
60 34-40-3205 O-Ring 1
61 40-50-3085 Feed Piston Spring 1
62 42-38-0345 Feed Bumper 1
63 42-92-1415 Feed Piston Cap 1
64 05-84-0820 Bolt Assembly 2
65 44-55-0260 First Stopper Finger 1
66 44-55-0255 Second Stopper Finger 1
67 40-50-3010 Spring 1
68 40-50-3080 Stopper Finger Spring 1
69 44-60-1895 Nail Stop Pin 1
70 42-92-1410 Door 1
71 40-50-3015 Latch Spring 1
72 44-20-0860 Door Latch 1
73 06-65-1415 Spring Pin 1
74 44-50-0205 Door Shaft Pin 1
75 43-56-0890 Guide Block 1
76 44-60-1860 Fixed Pin 1
77 34-40-3190 O-Ring 2
78 42-92-1480 Work Contact Element Cover 1
79 45-88-1760 Flat Washer 1
80 05-84-0895 Bolt, M5 x 0.8-08 1
81 44-26-0100 Magnet 1
94 44-60-1885 Pin 2
95 42-38-0355 Magazine Cover 1
96 43-78-0165 Spring Base A 1
97 40-50-3040 Pull Spring 1
98 45-36-1660 Spacer 1
99 44-55-0265 Nail Tray Adjustor 1
100 05-78-0815 Tap Bolt 3
101 42-98-0375 Magazine Base 1
102 34-40-3130 O-Ring 1
103 44-86-0715 Spring Retainer 1
104 42-38-0365 Magazine Wear Pad B 2
105 42-98-0380 Magazine Wear Pad A 1
106 05-84-0845 Bolt Assembly 1
107 44-66-1335 Positional Plate 1
108 40-50-3055 Work Contact Element Spring 1
109 44-66-1330 Adjusting Plate A 1
110 44-66-1325 Adjusting Plate B 1
111 31-94-0110 Trigger Valve Assembly 1
112 45-24-0020 Magazine Coil Assembly 1
113 43-56-0565 Shingle Guide Assembly 1
115 12-98-0310 Service Nameplate/Warning Label 1
14-70-0140 Overhaul Kit (Not Shown) 1
14-70-0160 Driver Maintenance Kit (Not Shown) 1
112
94 95 96 97
98 99 100 101
102 103 104 105
107 108 109 110

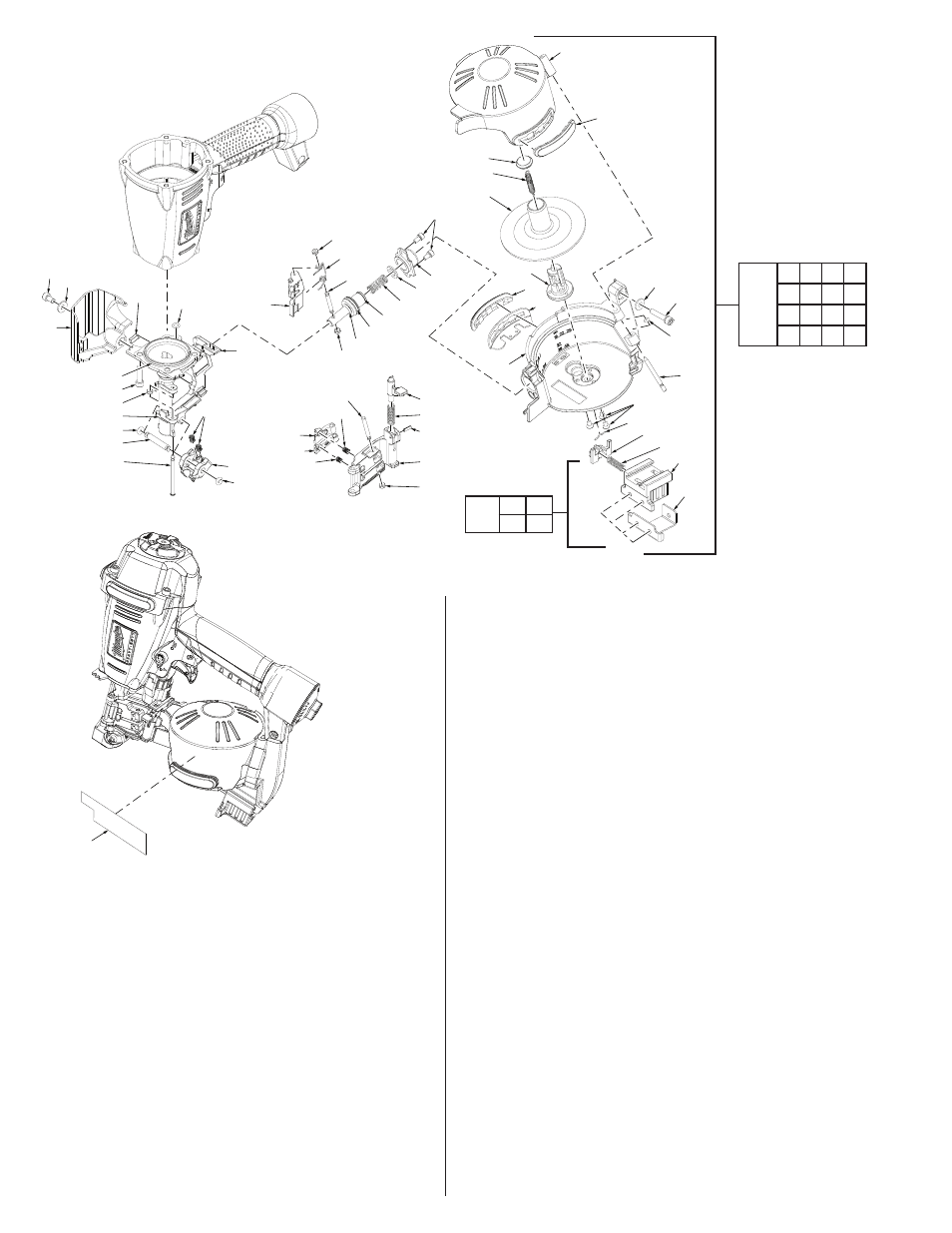

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
