5.2 CC-Link Communication Settings
5.2.1 Settings on the servo amplifier
In the instructions below we are assuming that you have an operating CC-Link network with the
following specifications:
b
Data rate 156Kbit/s
b
The master station is a QJ61BT11N module that is integrated in a System Q con-
troller platform with a Q02H-CPU.
Procedure:
ቢ
Set the number of reserved stations:
ባ
Set the station address (max. value 64):
Positioning via a CC-Link Network CC-Link Communication Settings
MR-J3-T 5 - 33

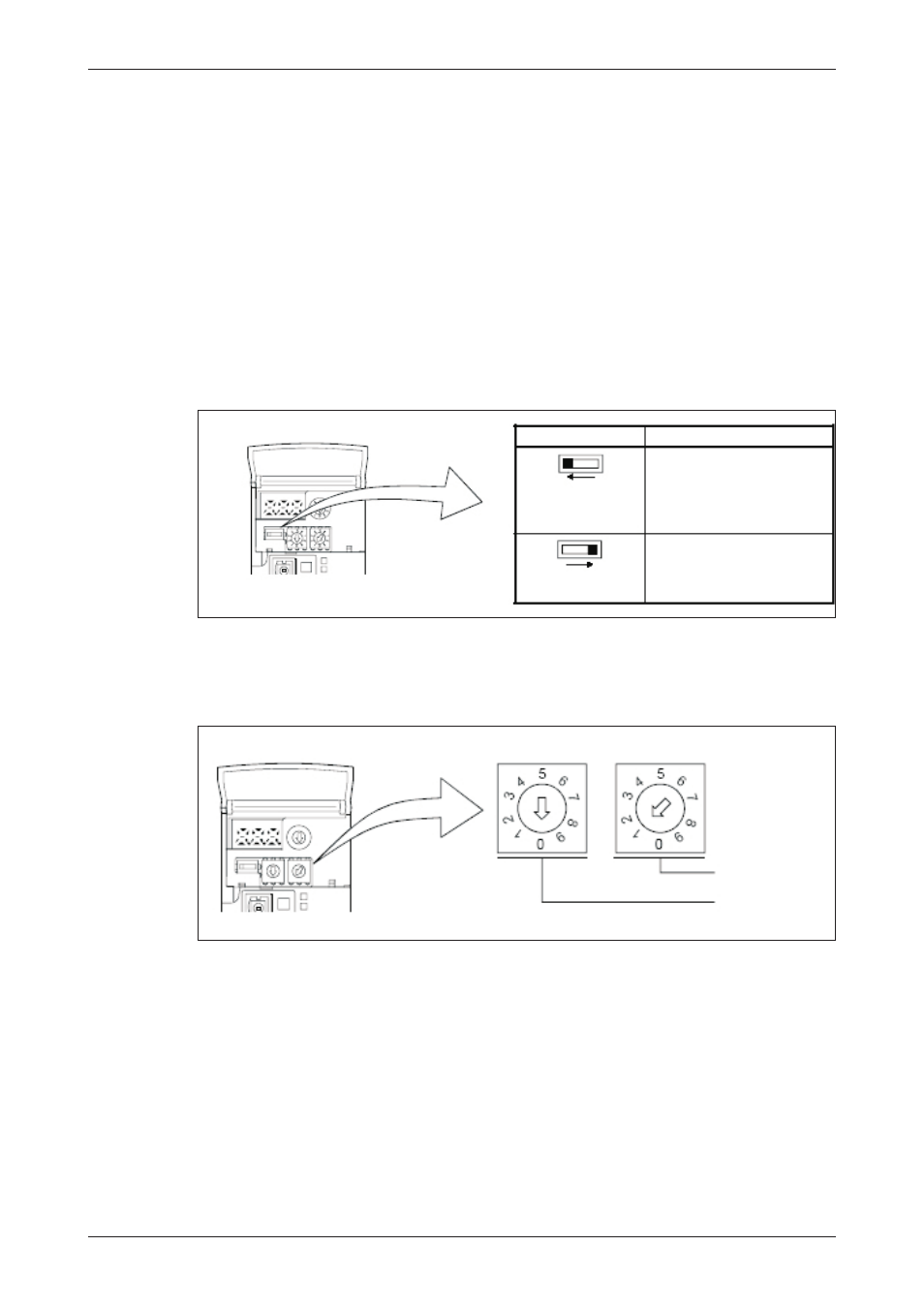

Fig. 5-3: Correct position of switch S1 for setting the number of reserved stations
S1
Factory default
setting
1 reserved station
2 reserved stations
Fig. 5-4: Set switches x1 and x10 to the correct station address
higher values
lower values
address digits
x1 x10
