Step Size (Quantity) Color Torque
1 M2.5 x 5L(2) Blue 3.2 kgf-cm
Notes:
1. When removing the system board from the bottom
cover, gently raise the side of the system board facing
the rear I/O ports; then pull out the system board.

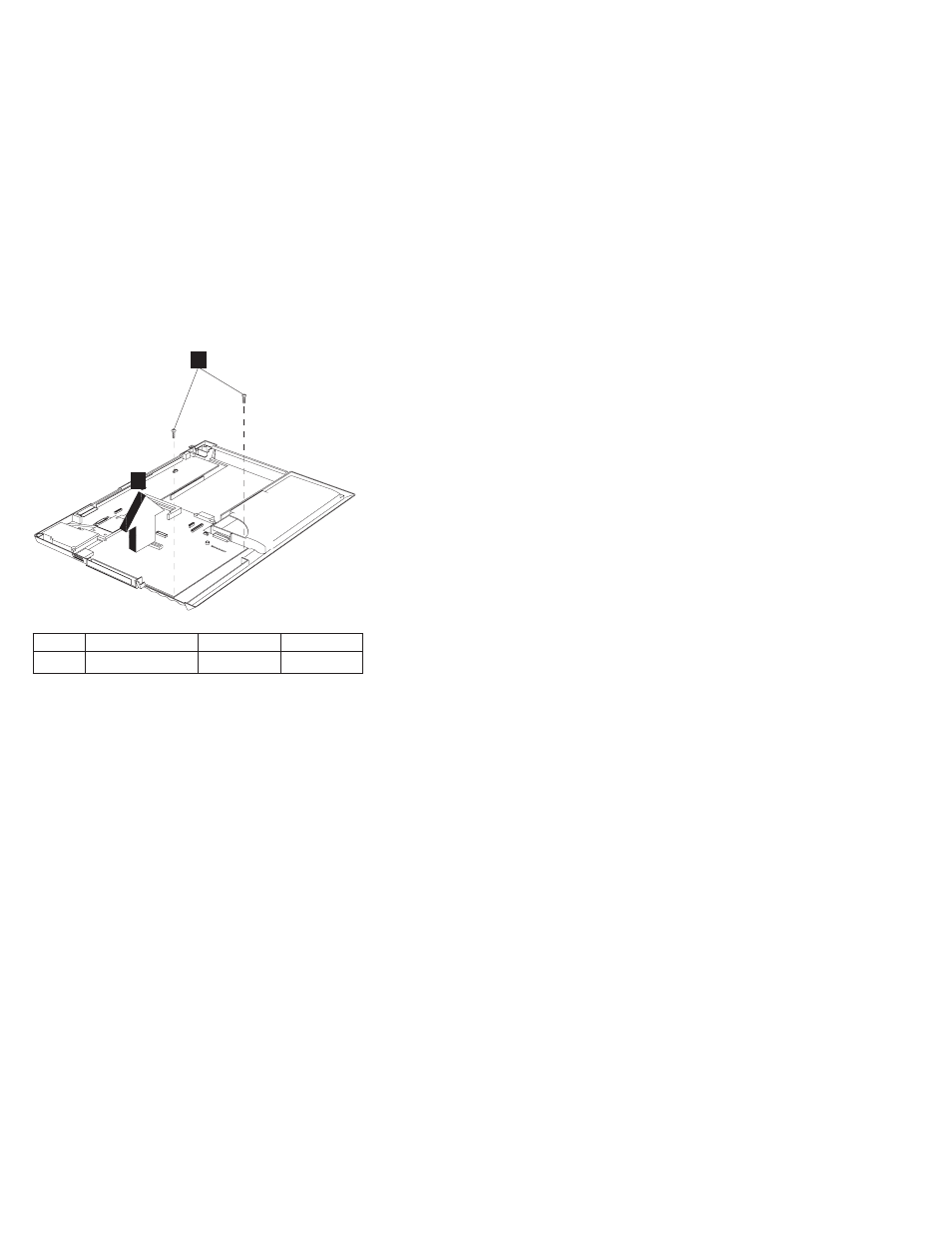

1200 Fan assembly
v “1020 Battery assembly” on page 50
v “1040 Hard disk drive assembly” on page 52
v “1060 CD-ROM assembly” on page 54
v “1070 EZ key cover” on page 56
v “1080 Keyboard” on page 56
v “1090 Backup battery” on page 57
v “1150 Middle cover” on page 62
v “1160 LCD assembly” on page 63
v “1170 Keyboard bezel” on page 65
v “1190 System board” on page 67
68 ThinkPad i Series 1200/1300 HMM
