G0514X/-X2/-X2B/-X3 (Mfg. Since 2/12)
-67-
Adjusting Lower Wheel
only do this procedure if you cannot make the
wheels coplanar with the tracking knob or by
shimming the upper wheel. Make sure the upper
wheel is adjusted as close as possible to being
coplanar with the lower wheel before beginning.
do this procedure with the blade fully tensioned.
To adjust the lower wheel:
1. disConneCt BandsaW FroM poWer!
2. loosen the jam nuts on the lower wheel
adjustment hub (see figure 111).
3. loosen one tilt adjustment set screw, then
tighten the opposing set screw approximately
an equal amount.
4. Check the wheels with the coplanarity gauge,
then adjust the lower wheel at the hub as
needed until it is parallel and coplanar with
the top wheel.
5. tighten the jam nuts to lock the tilt adjust-
ment set screws in position.

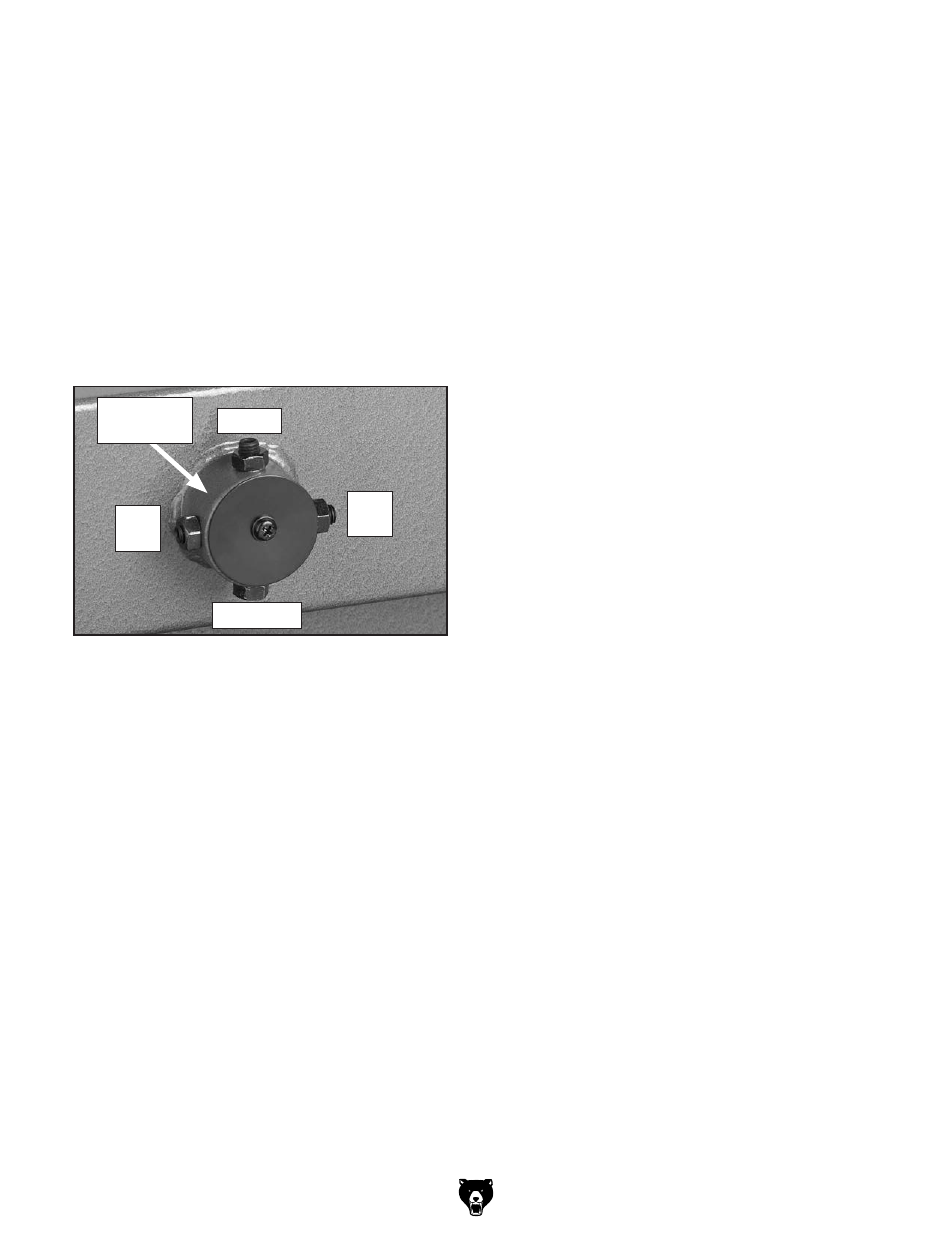

figure 111. lower wheel adjustment control.
top tilt
side
tilt
Bottom tilt
side
tilt
adjustment
hub
