Gravely 260Z - Manual (Page 29)

29

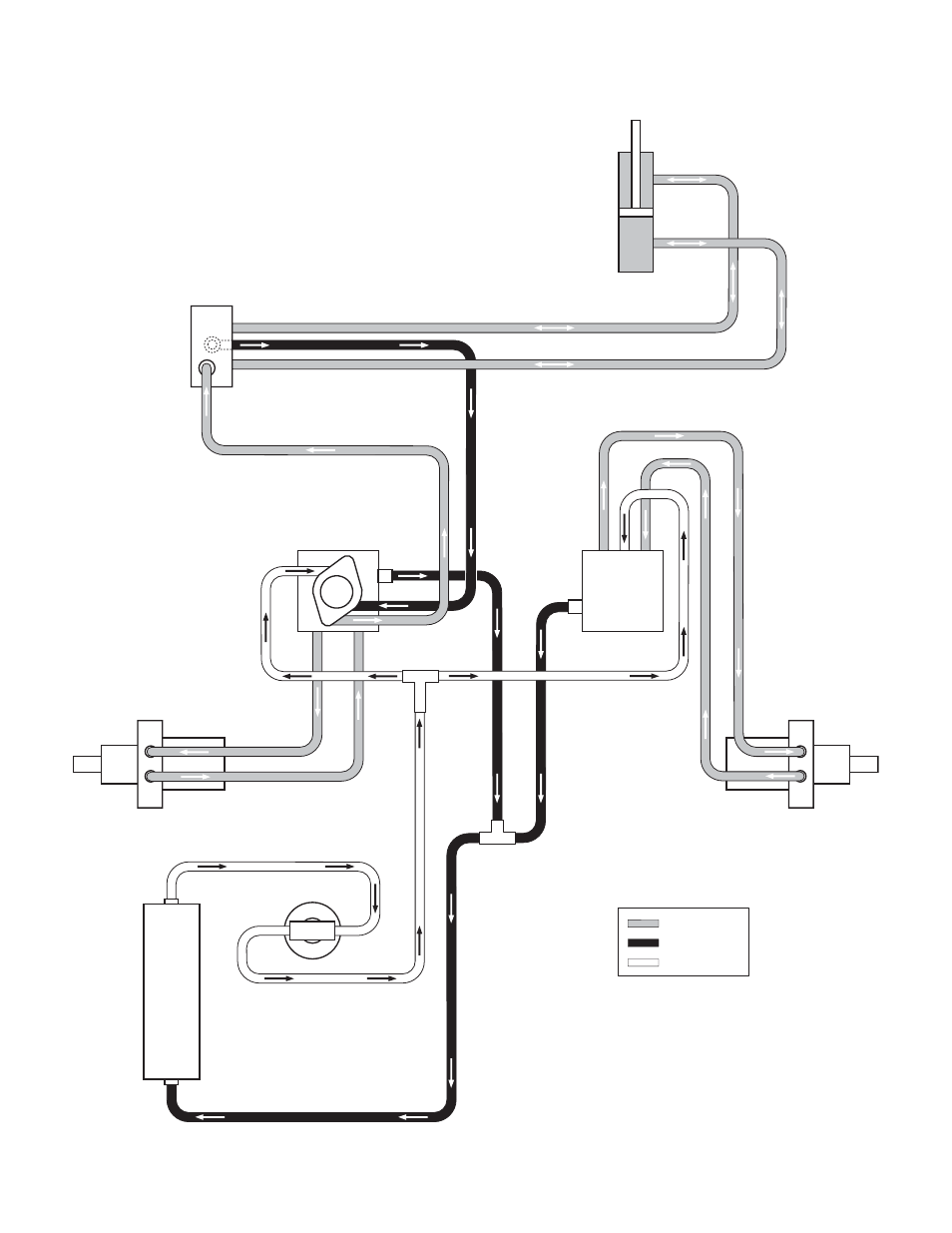

HYDRAULIC DIAGRAM
992018, 023, 027
A
A
B
B
A
A
B
B
A
B
Lift
Cylinder
Oil
Filter
Left
Wheel
Motor
Upper
Lower
Right
Wheel
Motor
Upper
Lower
PRESSURE
RETURN
SUCTION
Right Pump
Left Pump
Oil
Tank
Deck Lower
Deck Lift
Lift
Valve
Reverse
High Pressure
Forward
High
Pressure
Reverse
High
Pressure
Forward
High
Pressure
Return
Inlet
PD1772
