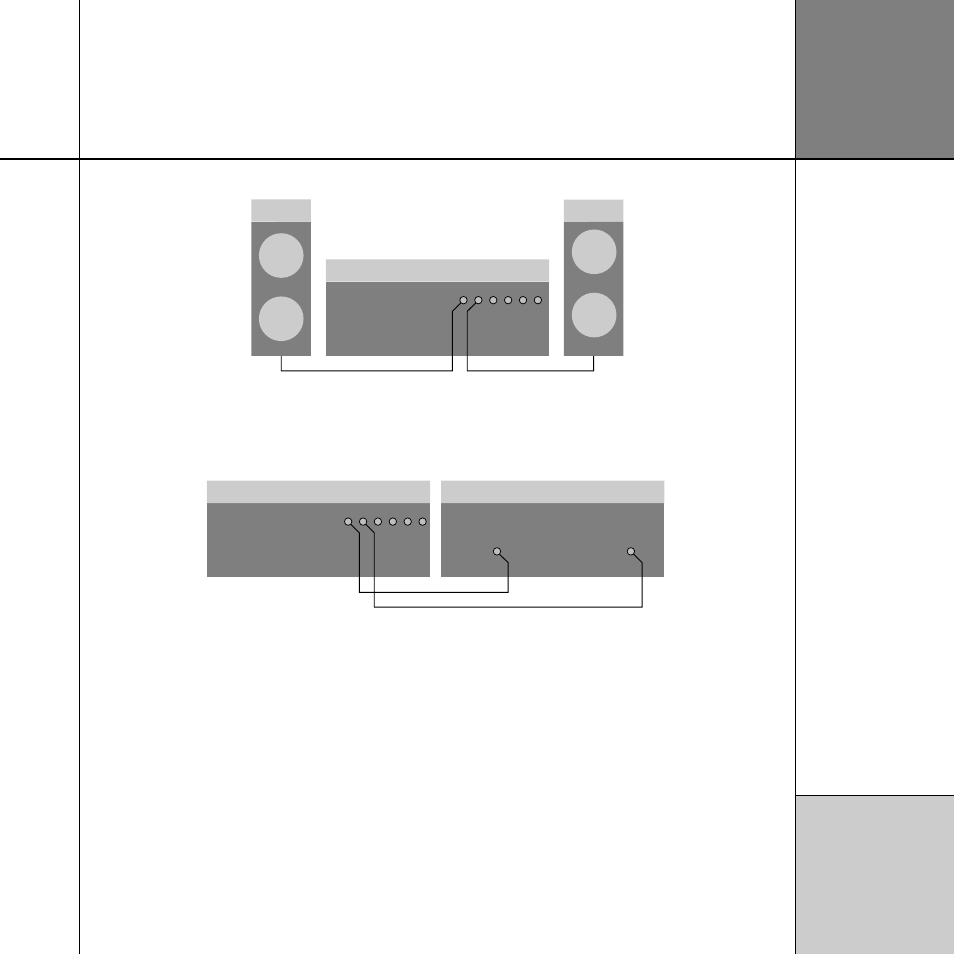

To connect the G61 to active unbalanced loudspeakers (eg Meridian M33s)
M33 M33
PHONO LEAD PHONO LEAD
'
!.!,/'5%
• Connect the appropriate analogue out sockets from the digital
surround controller to the speaker inputs, using phono leads.
To connect the G61 to a stereo power amplifier (eg Meridian G56 or G57)
''
0(/./
).054 ).054
'
!.!,/'5%
• Connect the appropriate analogue output sockets from the digital
surround controller to the stereo power amplifier inputs, using
phono leads.
• Connect the speaker outputs from the stereo power amplifier to
suitable speakers.
