M3092DC Image Scanner Operation Guide 4-9
4.4.2 Procedure for Replacing the Pad Unit
Replace the pad unit through the following procedure:
1) Remove any documents from the document support.
2) Open the automatic document feeder by pulling it toward you while
raising the cover open lever.
3) Remove the pad unit.

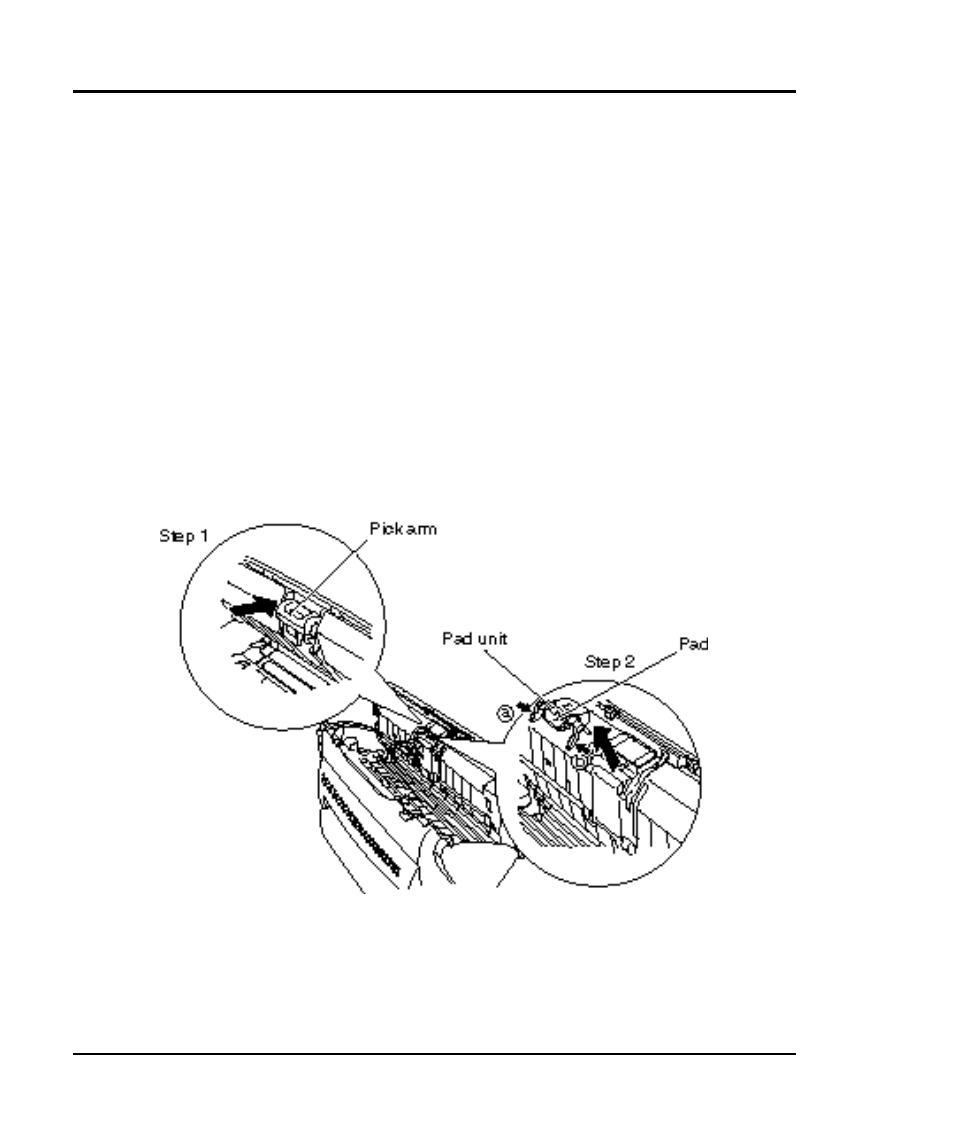

Step 1: Push the pick arm in the automatic document feeder in the
arrow direction.
Step 2: Pull out the pad unit by using such as a ballpoint pen at
both ends (a and b) of the pad unit.
