Simplified schematic diagram – Fairchild DUAL TRACKING VOLTAGE REGULATORS RC4194 User Manual

Page 11

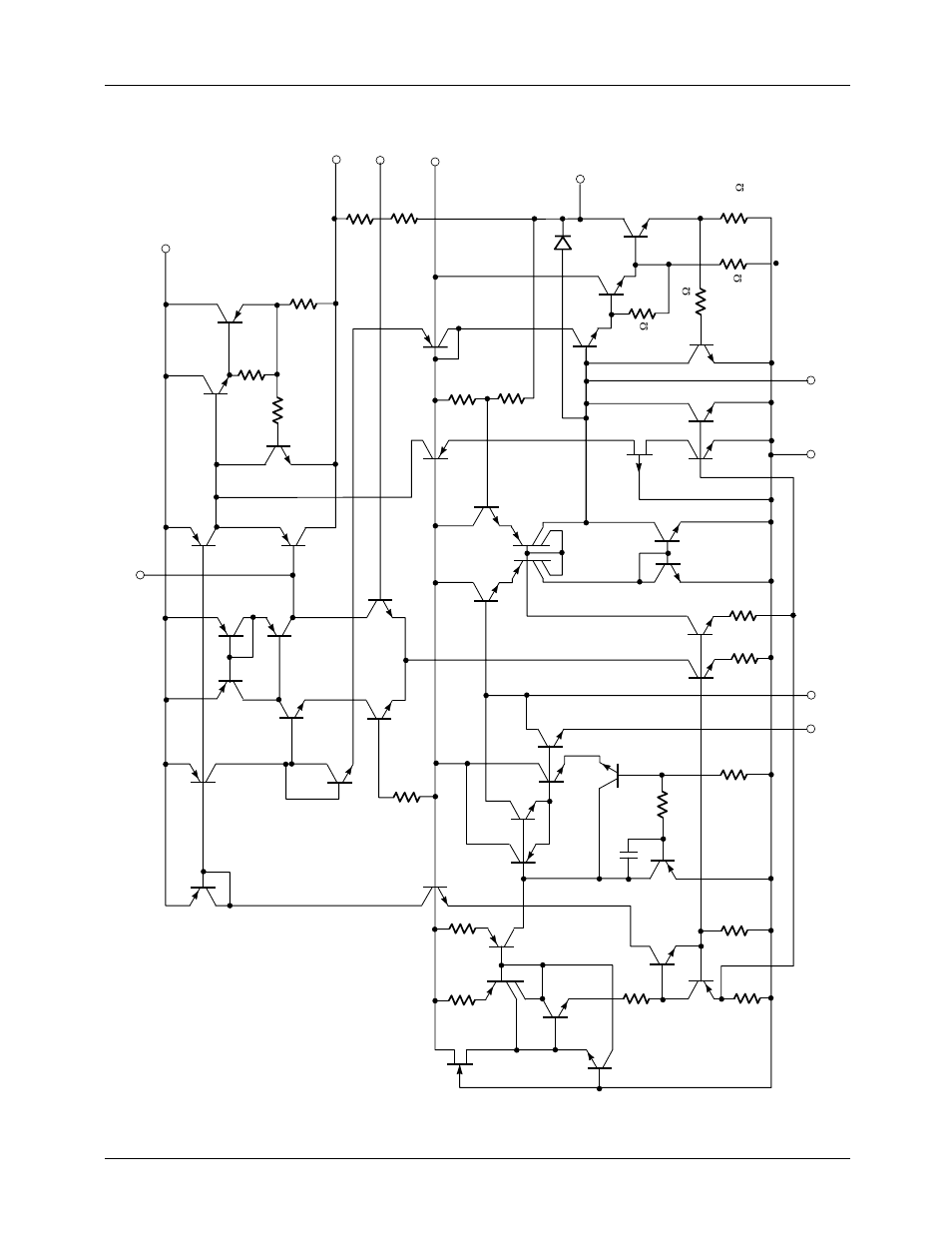

Simplified schematic diagram | Fairchild DUAL TRACKING VOLTAGE REGULATORS RC4194 User Manual | Page 11 / 15
