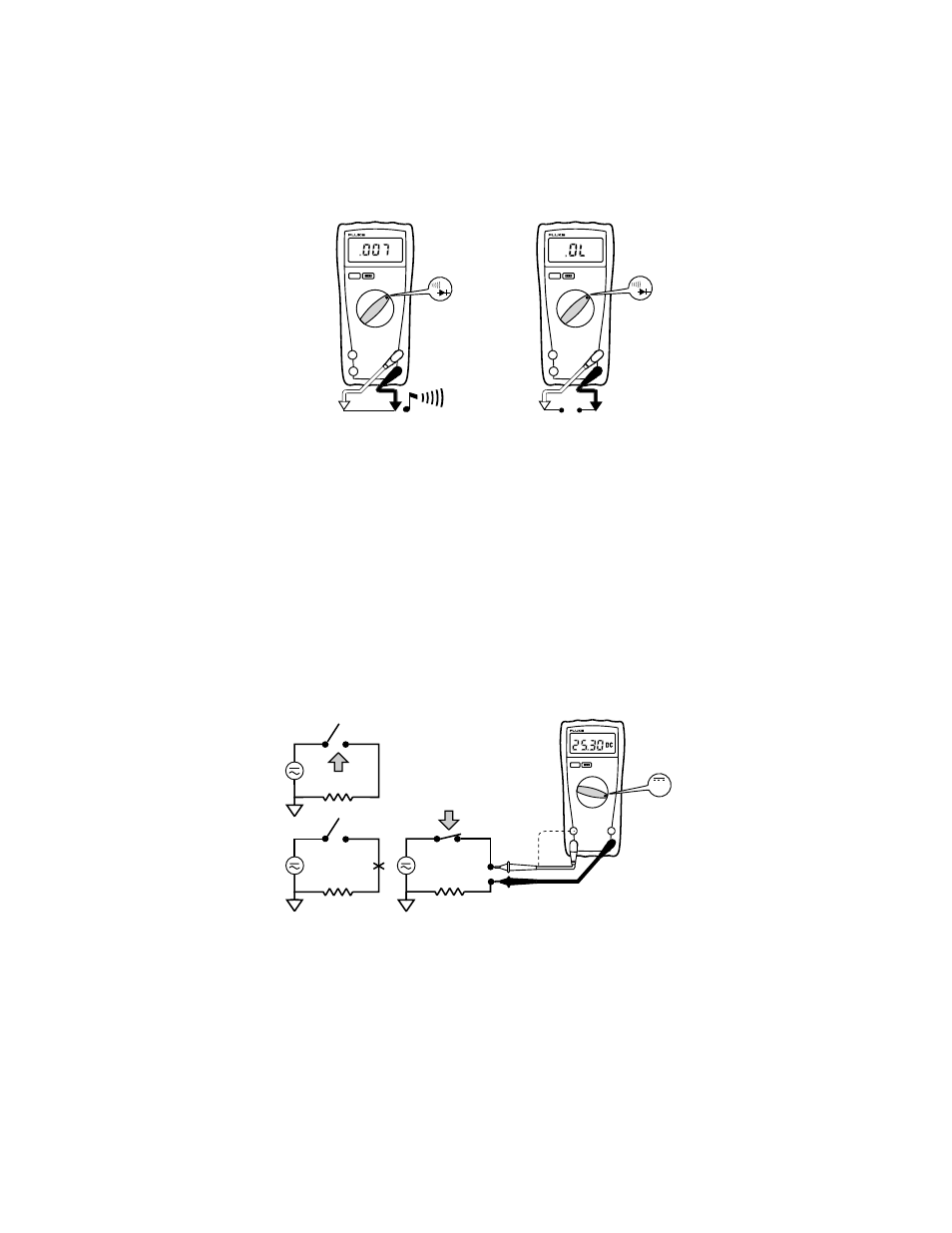

Continuity Test
(
R
)
RANGE
CAT
CAT
+
_
RANGE
CAT
CAT
+
_
hc8f.eps
If continuity exists (resistance < 210
Ω
for Models 21/75 and
<270
Ω
for Models 23/77), the beeper sounds continuously. The
meter beeps twice if it is in Touch Hold
mode.
Current
(
?
A
)
W
Warning
To avoid injury, do not attempt a current
measurement if the open circuit voltage exceeds the
rated voltage of the meter.
To avoid blowing an input fuse, use the 10 A jack until you are
sure that the current is less than 300 mA.
Turn off power to the circuit. Break the circuit. (For circuits of
more than 10 amps, use a current clamp.) Put the meter in series
with the circuit as shown and turn power on.
RANGE
_
CAT
CAT
+
+
1
2
4
3
A
hc10f.eps
