High-Connectivity Cradle 1-5
High-Connectivity Cradle 1
The high-connectivity cradle provides all the connectivity of the port replicator and is designed for
desk-top or counter-top installations where the cradle remains stationary. Locking versions are equipped
with a tubular lock which allows you to lock the pen tablet into the cradle. The high-connectivity cradle is
assembled using a cradle module, cradle base, and portable port expander. An AC adapter must also be
installed in the cradle base if the cradle is to provide power to the system. (An AC adapter is shipped
with each pen tablet and can also be purchased separately.)

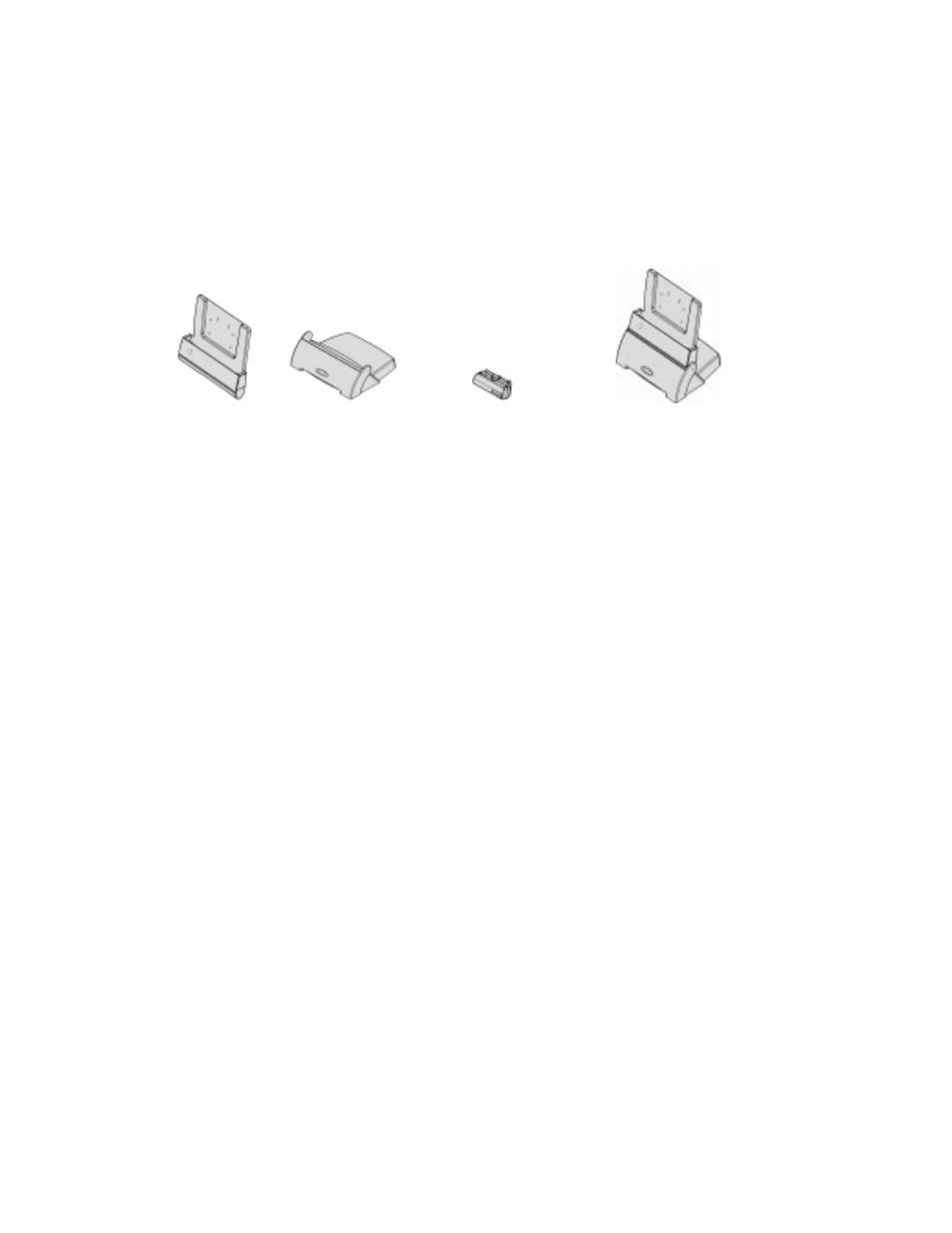

High-Connectivity
Cradle Cradle
Base Portable Port
Expander Cradle Module
= + +
Assembled Package Components
(Note: Latch and spacer
must be removed before
assembly.)
