4.5 DGPS
An L-band DGPS receiver may be connected.
This requires a connector fixing plate for DGPS.
1. Turn off the communication unit.
2. Detach the cover.
3. Detach the dummy plate from the rear panel.
4. Fasten the connector fixing plate (supplied) to the rear
panel with the screws used to fix the dummy plate.
5. Detach all connectors from the rear panel; dismount the
power supply unit and the panel.
4.5 DGPS
4-6
CP16-01602
(Code No.: 004-442-900)
Name Type Code No. Qty
Connector fixng plate CP16-01606 004-442-910 1
Cable assy
PH5P-L200-SMP2P 000-141-558 1
PH2P-L300-SMR2P 000-141-559 1
Pan head screw M4 × 8 000-881-445 4

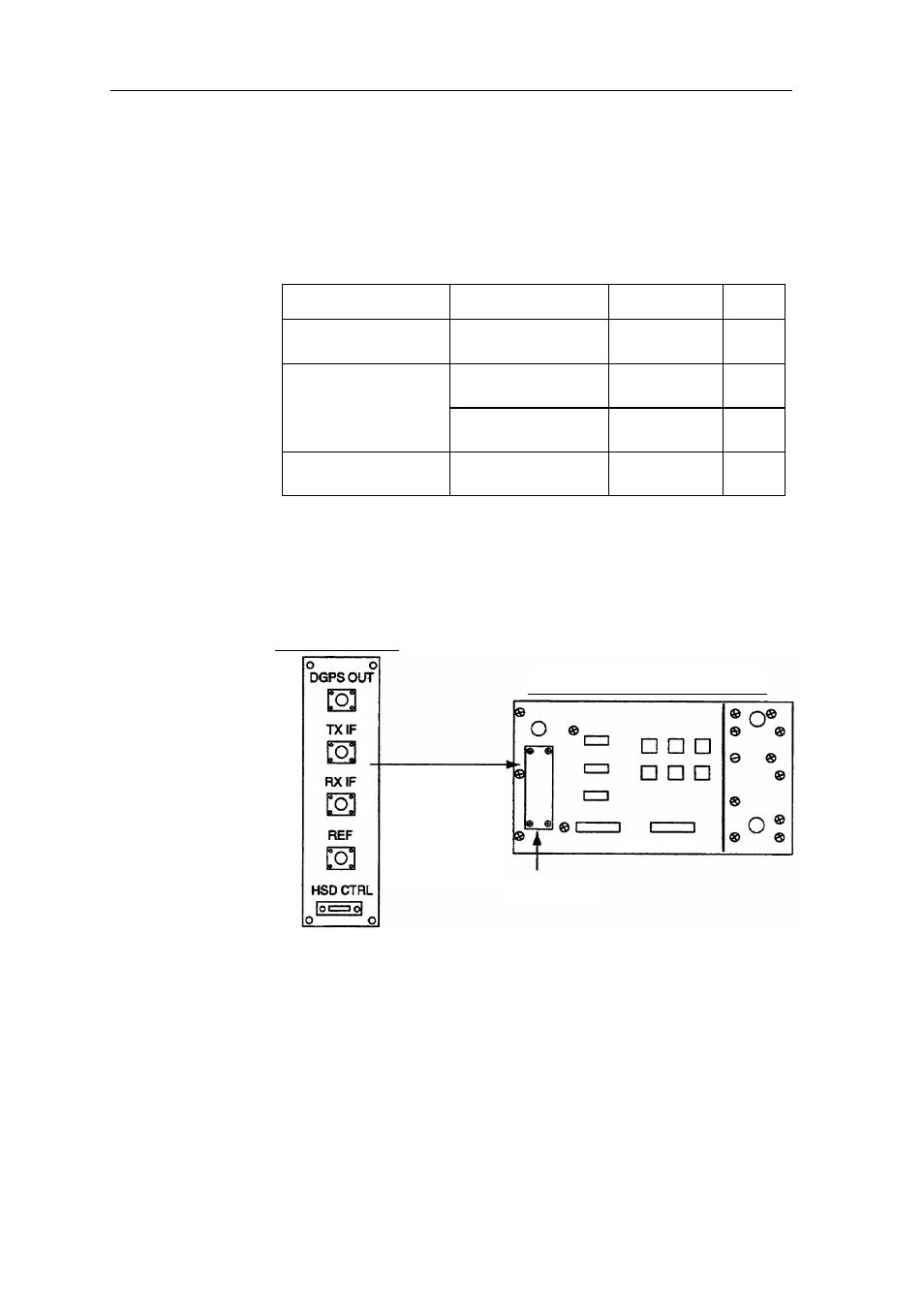

Connector fixing plate
Rear panel of communication unit
Dummy plate
Detach dummy
plate and fasten
connector fixing
plate with screws
used to fasten
dummy plate.
