2680A/2686A
Getting Started Guide
54

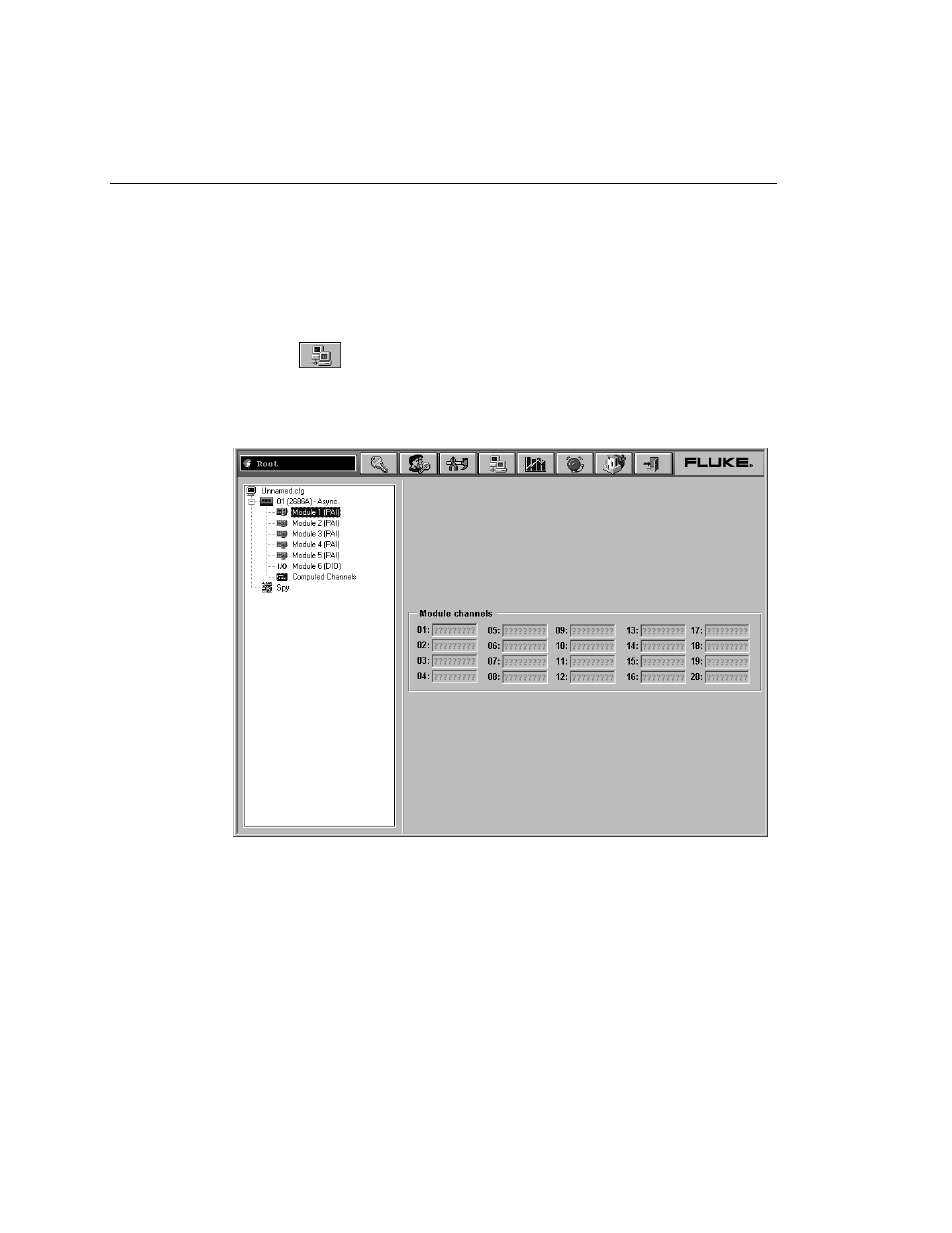

Viewing Module Measurement Data
You can view measurement data from a module as it is recorded. Selecting a
module shows all 20 channels as for the Computer Channels. Modules that have
no channels configured display question marks. NC indicates that a channel is not
configured.
To view module measurement data
1. Click the on the Fluke DAQ toolbar.
2. Highlight a module in the TreeView panel and the module measurement data
appears.
