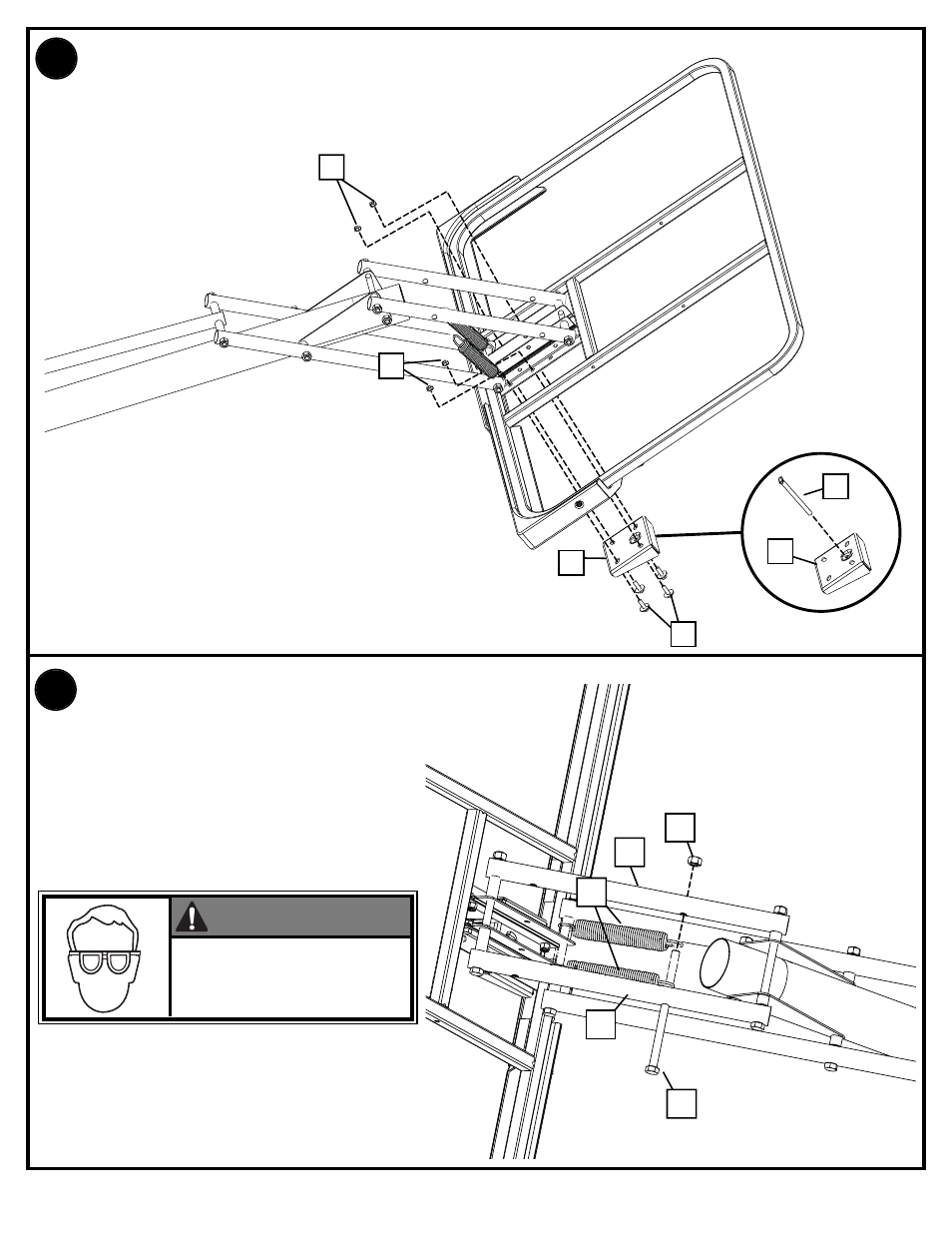

Insert T-bolt (55) into rim bracket (54) then,
attach that assembly to board using bolts (44)
and nuts (14)
14
55
54
54
14
44
Insert bolt (29) through left side
upper elevator tube (35), then
stretch spring (33) onto bolt (29).
Insert bolt (29) through right side
upper elevator tube (35) and
secure with nut (31).
USE EYE PROTECTION
WHEN INSTALLING
SPRINGS.
