7
D ISHWASHER
A. ON-OFF Button
Press this button to switch the
appliance on.
B. ON-OFF Indicator light
This light informs you that the
dishwasher is on.
C. Door opening handle
Use this handle to open the door.
D. Delayed start select button
This button delays the start of
the wash cycle you selected
by 12, 9, 6 or 3 hours.
E. Cycle indicator light
This light informs you which
cycle you have selected or the
one in progress.
G. Cycle phase and delayed start
indicator lights
Thes indicator lights inform you
which cycle phase is underway
(prewash,wash,rinses,drying).
If you have set a delayed start,
they also indicate the amount of
time left until the wash cycle
starts.

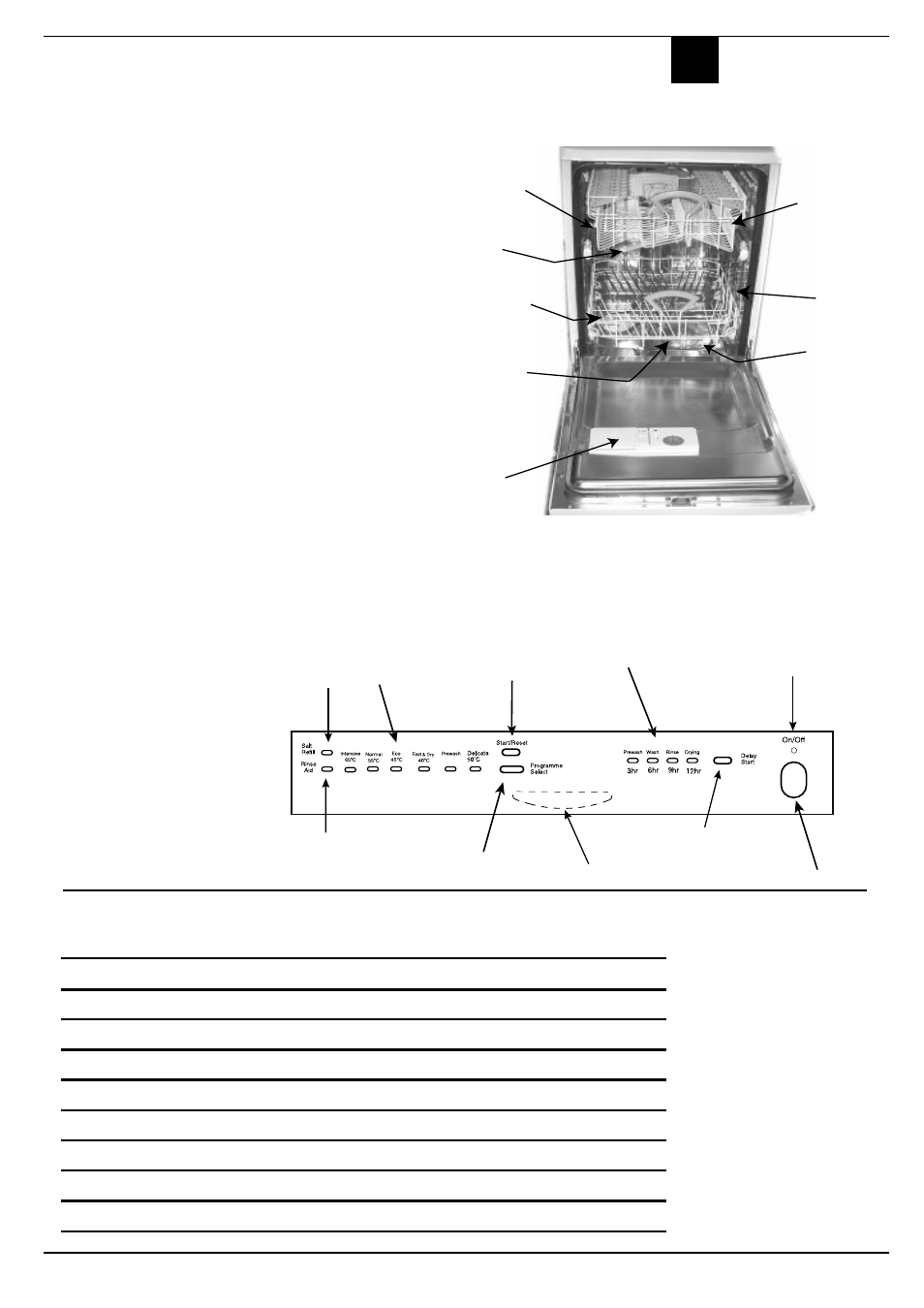

E. Upper basket
F. Top spray arm
G. Basket height adjuster
H. Lower basket
I. Bottom spray arm
J. Salt container cap
K. Washing filter
L. Detergent and rinse aid
dispenser
Technical Characteristics
This dishwasher conforms to
the following European
Community Directives:
• 73/23/EEC of
19/02/73 (Low Voltage)
and subsequent
modifications;
• 89/336/EEC of
03/05/89 (Electromagnetic
Compatibility) and
subsequent modifications;
• 97/17/C E
(Labelling)
The Controls
Getting to know your Dishwasher
Technical characteristics
Width cm. 45
Depth cm. 60
Height cm. 85
Capacity 9 standard place settings
Mains water pressure 4,3 psi - 145 psi 30KPa÷ 1MPa (0,3 ÷10 bar)
Power voltage See data plate
Total absorber power See data plate
Fuse See data plate
G
J
I
L
K
H
F
E
A
B
E
G
S
T
P
D
C
R
P. Cycle select button
Each time this button is pressed,
one of the cycle indicator lights
“E” will come on in sequence
R. Start / Reset button
With Start the wash cycle
begins, whereas a;; the settings
are cleared with Reset.
S. Low salt indicator light
This light warns you that it is
time to add more salt.
T. Low Rinse Aid indicator light
This light warns you that it is
time to add more rinse aid.
