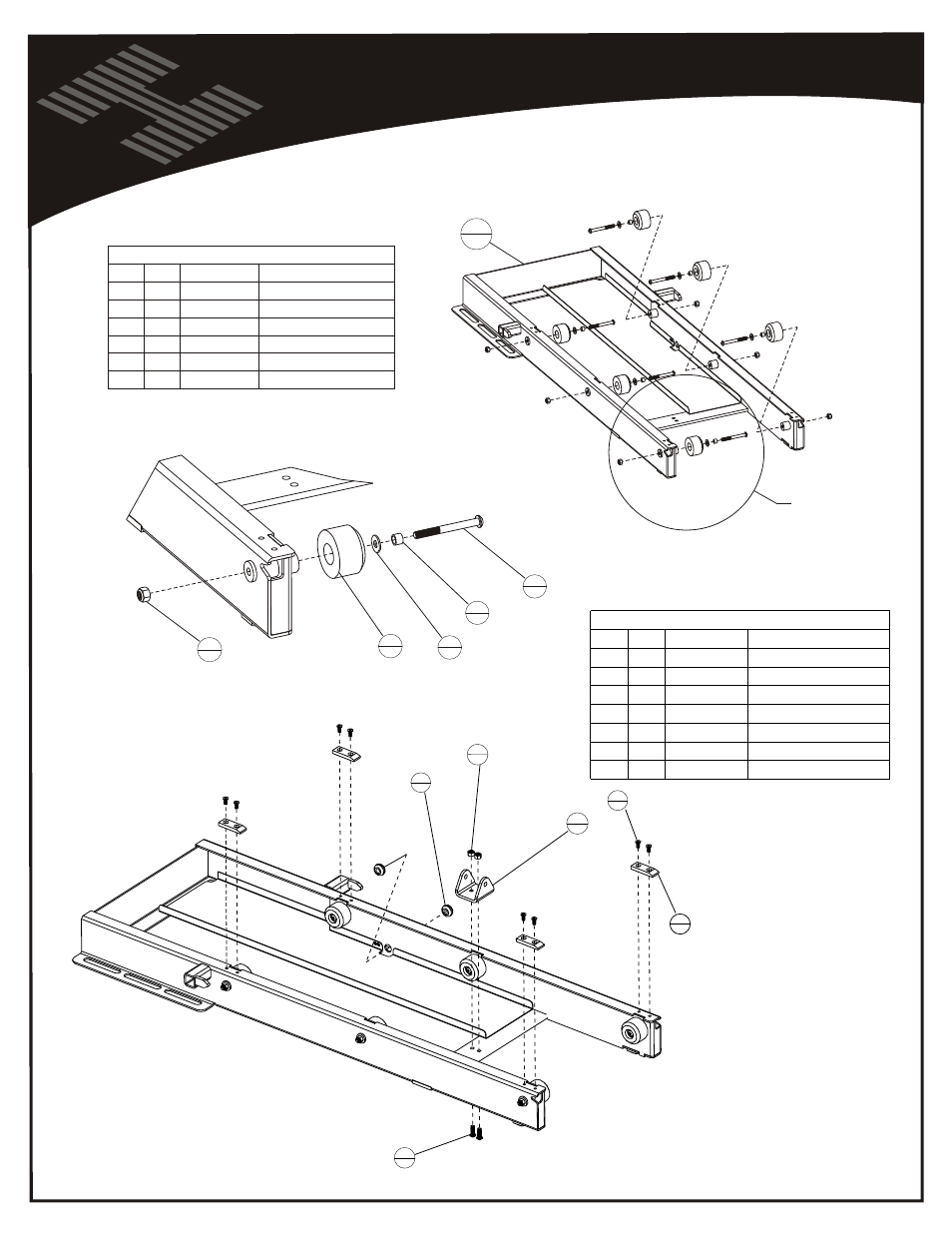

EXPLODED VIEWS
16
ASSEMBLY PARTS
ITEM QT Y PART NO. DESCRIPTION
1 6 90126A029 0.25 MW: 0.625 OD
2 6 90640A129 NL: 0.25-20
3 6 92949A552 BSCS: 0.25-20 x 2.50
4 6 H600141 AL600 BASE WHEEL
5 6 H600151 BASE WHEEL SPACER TUBE
6 1 H600803 HPL BASE & LEG
SEE DETAIL A
DETAIL A
(x6)
6
1
1
6 2
6
3
6
4
6
5
6
ASSEMBLY PARTS
ITEM QT Y PART NO. DESCRIPTION
1 2 0_25-20_LOCK_NUT 90640A129
2 1 1BASE-ASSY AL600 ASSEMBLY PART 1
3 8 92805A242 SFHSCS: 10-24 x 0.50
4 2 92949A540 BSCS: 0.25-20 x 0.75
5 2 9600K47 RG:0.375 ID,0.875 OD,0.125 TH
6 4 H600132 AL600 PLASTIC SHIM
7 1 H600142 AL600 BASE CHAIN BRACKET
1
2
3
8
4
2
5
2
6
4
7
1
