Sync input, Ac power connections, Control processor dip switch settings – Sierra Video Pro XL Series 8 User Manual

Page 24

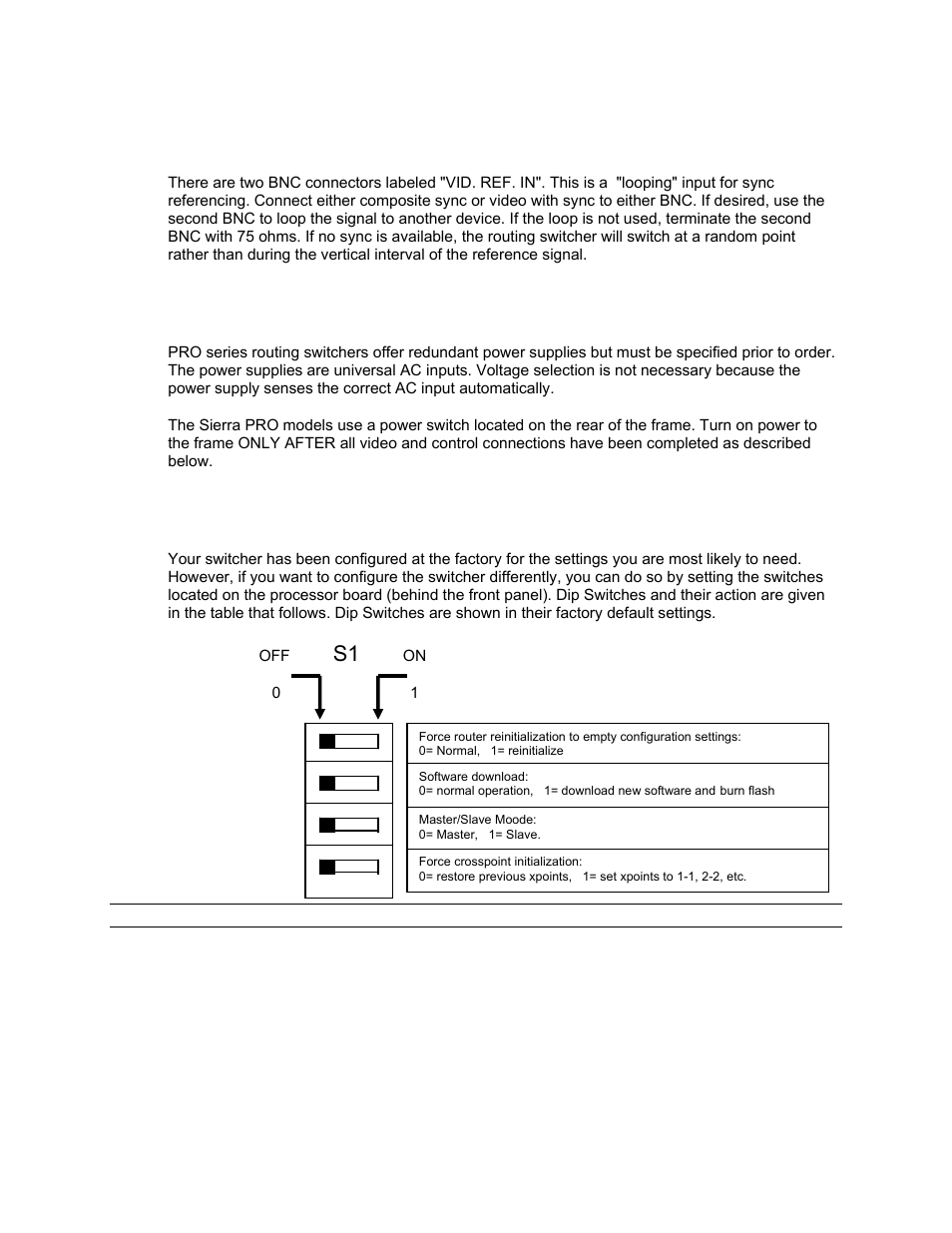

Sync input, Ac power connections, Control processor dip switch settings | Sierra Video Pro XL Series 8 User Manual | Page 24 / 72

Sync input, Ac power connections, Control processor dip switch settings | Sierra Video Pro XL Series 8 User Manual | Page 24 / 72
