End of life - not recommended for new designs, Interface connections (cont.), Figure 4. interface connector (j10) – Vicor 4kW MegaPAC-EL AC-DC Switchers User Manual

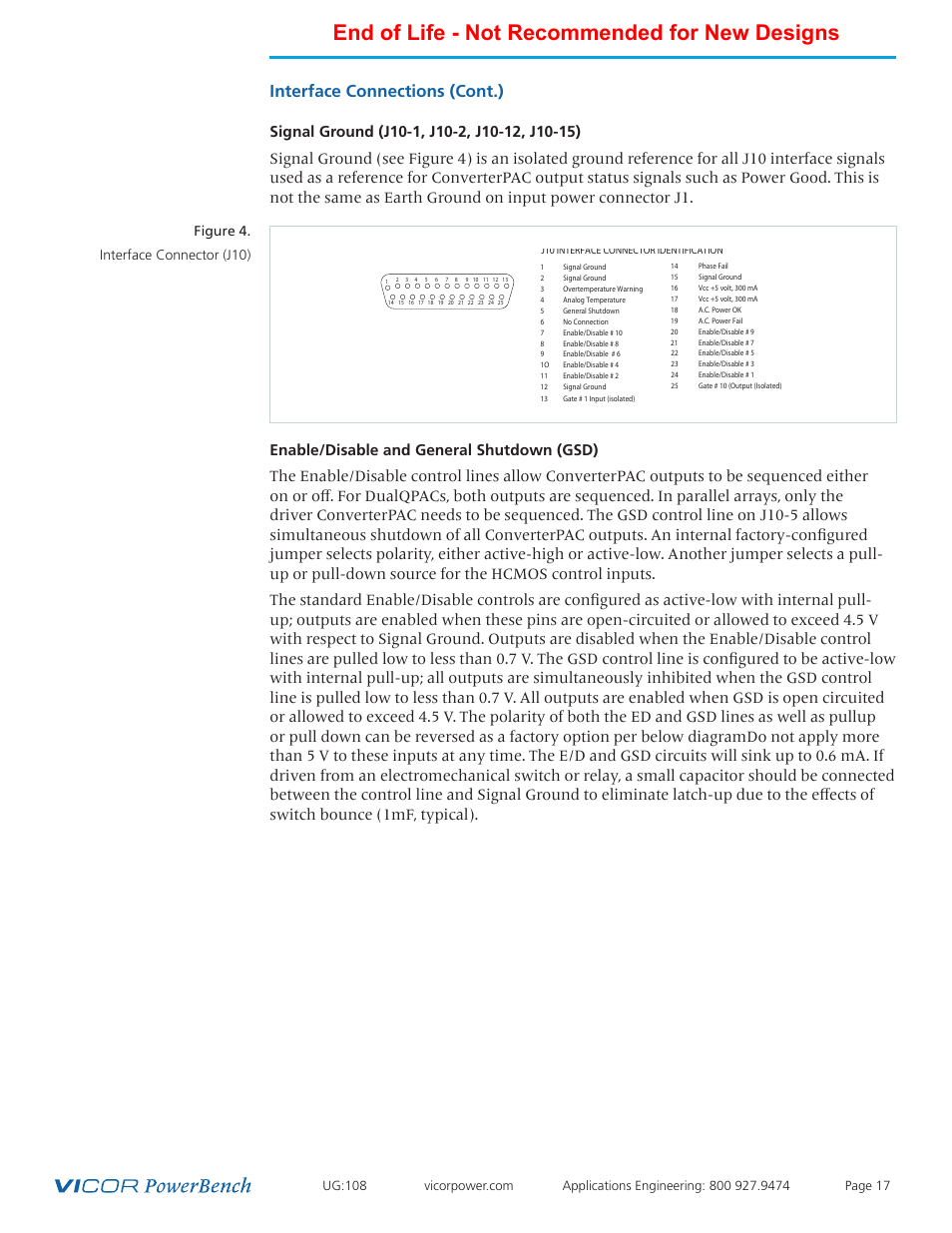

Page 17
