8 PINOUTS
Data In - 9-Pin Connector (Male)
Pin
Connection
1
No Connection
2
Rx
3
No Connection
4
No Connection
5
Ground
6
No Connection
7
No Connection
8
No Connection
9
No Connection
RJ-11 Designations (If Used)
Pin
Connection
1
Output Voltage
1
2
Signal Ground
3
Rx
4
Ground
5
No Connection
6
Output Voltage
1
1. These connections should be left unconnected in this configuration.
Industry Standard PC Null Modem Interface Cable
1
(Purchased separately- Part No. S1385)
LTC 8786 Side
PC or DVR Side
(9-Pin Female)
(9-Pin Female)
Pin
Pin
1
4
2
3
3
2
4
1, 6
5
5
6
--
7
8
8
7
9
--
1. The LTC 8786 only requires connections to pin 2 and 5 of its 9-Pin
connector.

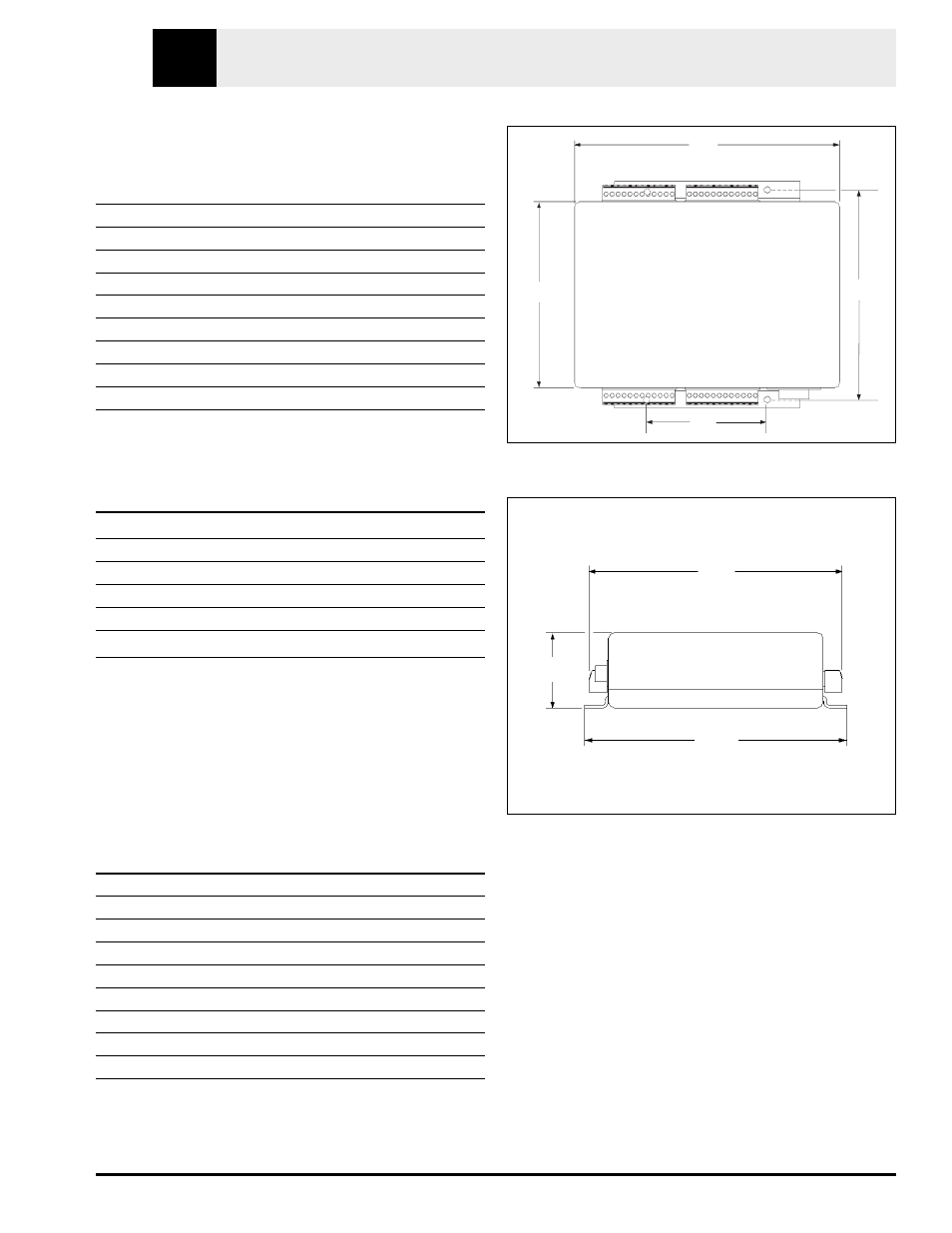

9 MOUNTING DIMENSIONS
Figure 4 Top Dimensions
Figure 5 Side Dimensions
Technical Reference
EN
© 2003 Bosch Security Systems
Page 11 of 12
122
4.80
70
2.75
154
6.08
108
4.26
mm
in
127
5.0
38
1.5
132
5.2
mm
in
