KYORITSU 2434 User Manual
Page 9
9. OPTIONAL ACCESSORIES
Model 8004 and 8008 (Multi-Tran)
These models help Model 2434 to measure current greater than
1000A or to make measurement on a large bus-bar or conductor.
(1)Set the Range Selector Switch to "100A".

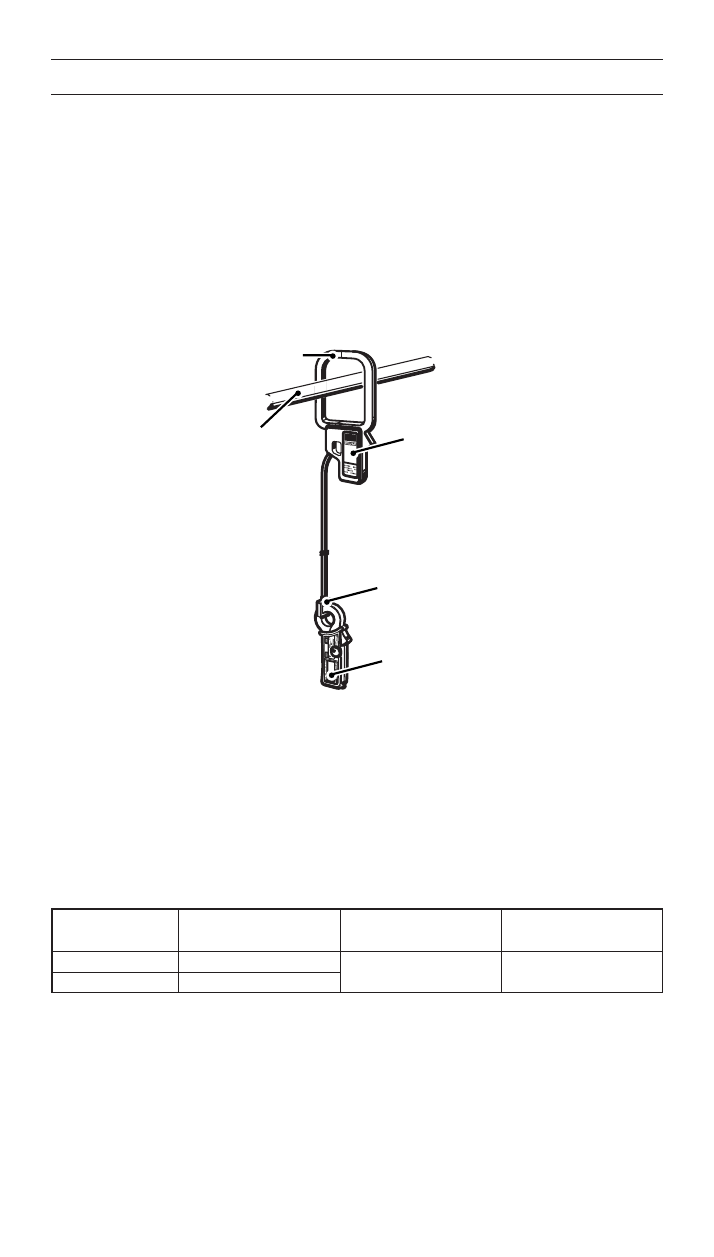

(2)As shown, open the jaws and close them over the pickup coil
of Model 8004 or Model 8008.
(3)Clamp on a conductor with Model 8004 or Model 8008.
(4)Take the reading and multiply it by 10.
Note: Model 8004 and Model 8008 cannot be used for leakage current
m e a s u r e m e n t . F o r d e t a i l e d s p e c i f i c a t i o n s , r e f e r t o t h e
instruction manual for Model 8004 or Model 8008.
M-2434
M-8004
M-8008
Pickup Coil
Conductor
Transformer
jaws
10
：
１
M-8004
M-8008
Max. Conductor Size
60mm in diameter
100mm in diameter
Measuring
Range
0∼1000A
Current Transformation
Ratio
10:1
