1.2 AGP-3302
∗

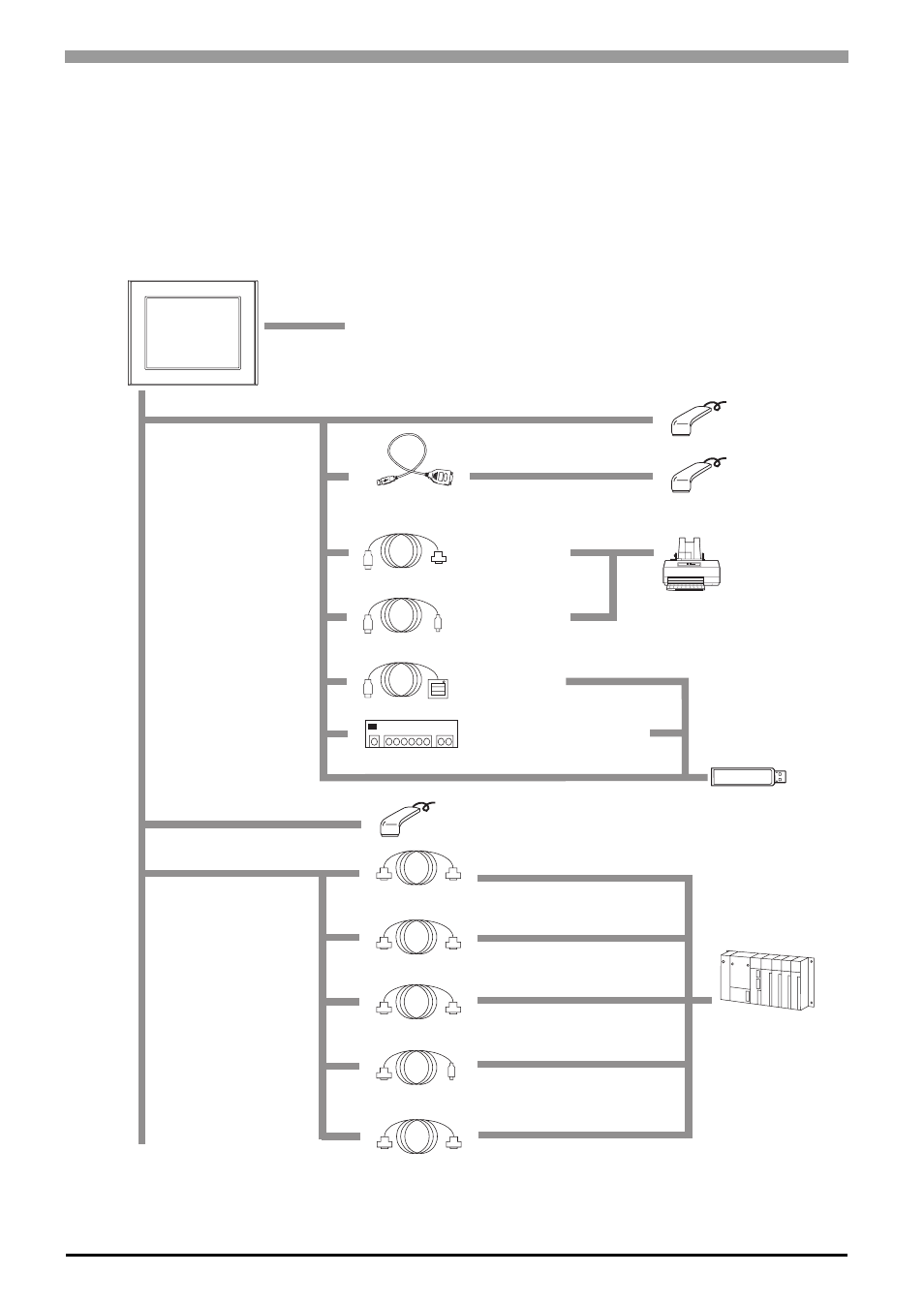

The following diagram illustrates the standard range of items that can be connected to AGP-3302
∗ units.
For host controller (PLC, etc.) connection information, refer to the “GP-Pro EX Device/PLC Connection
Manual”.
‹GP RUN Mode Peripherals
GP Unit
(2)
(1)
(2)
(4)
(4)
(4)
(4)
Host Controller
PLC etc.
USB-to-IEEE1284
Conversion Cable
(Commercial type)
USB Cable
FP-US00 or
commercial type
USB Hub (Commercial type)
Bar-Code Reader *1
(Commercial type)
Printer *1
(Commercial type)
RS-232C Cable
CA3-CBL232/5M-01
Mitsubishi PLC Q-Series Link Cable
CA3-CBLLNKMQ-01
Omron PLC SYSMAC Link Cable
CA3-CBLSYS-01
Mitsubishi PLC Q-Series Connection Cable
CA3-CBLQ-01
USB Front Cable
CA5-USBEXT-01
Expansion Unit
(8)
USB Memory Strage *1
(Commercial type)
(9)
Siemens TTY Converter Cable
CA6-CBLTTY/5M-01
Bar-Code Reader *1
(Commercial type)
USB-Serial (RS-232C) Conversion Cable
CA6-USB232-01
Bar-Code Reader *1
(Commercial type)
