GP3000 Series Hardware Manual
5-2
This section describes the DIO Connector packaged with the DIO board type unit of the GP3000 series.
This connector is an accessory of the GP unit. It is also offered as an optional maintenance item by Pro-face.
5.1 DIO Interface (Connector)
This interface is used to connect an external I/O device.
SEE 2.2 Optional Item for the DIO Board Type (page 2-7)
• When you use the DIO board type unit of the GP3000 series, read this section in conjunction
with the specifications of your GP series (Chapter 4).
• This section describes the information specific to the DIO board type unit of the GP3000 series.
The information common to the standard type and DIO board type units of the GP3000 series is
described using the model of the standard type.
(Example) For information about model AGP3500-T1-D24-D81K, read the information about
the standard type model “AGP-3500T”.
• When preparing the cable to connect the wiring, check the pin numbers inscribed
on the DIO Connector.
Recommended connector 1-1871940-6

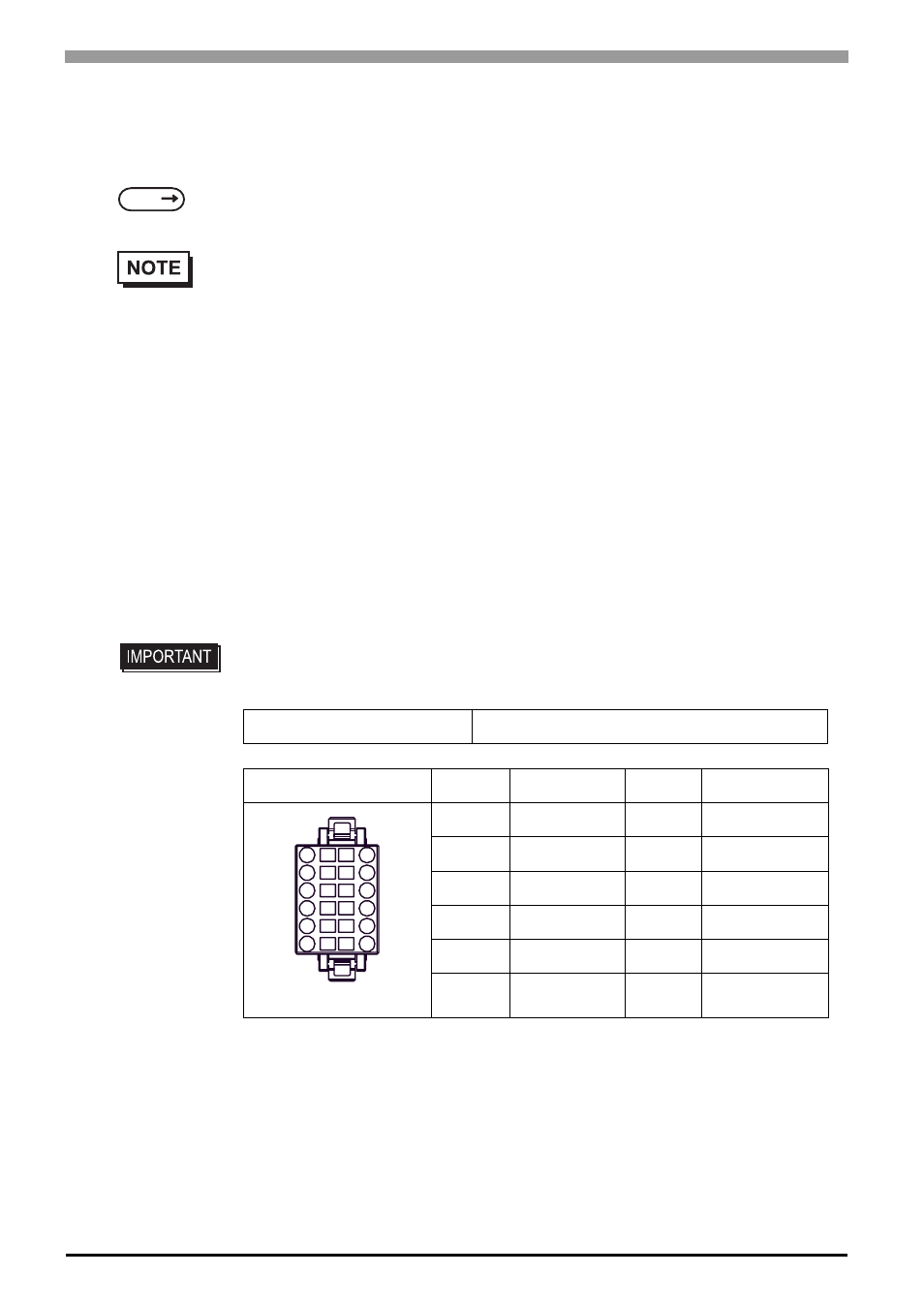

Pin Arrangement Pin No. Signal Name Pin No. Signal Name
A1 0V B1 +24V
A2 OUT1 B2 OUT0
A3 NC B3 COM
A4 IN5 B4 IN4
A5 IN3 B5 IN2
A6 IN1 B6 IN0
A6
A1
B6
B1
(Cable connection side)
